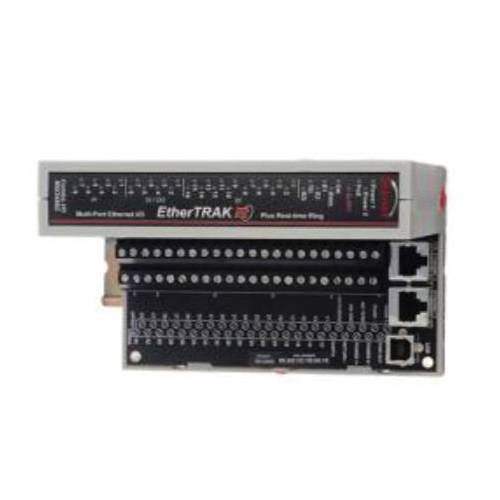

redlion® EtherTRAK® E2-MIX24880-D Double Density Ethernet Combination I/O Module, 32 Inputs, 8 Outputs, 0.003 % Resolution, +/-0.1 % Accuracy

Short Description

The ET-MIX24880-D is a double density EtherTRAK® I/O module with 24 discrete inputs and/or 8 discrete outputs and 8 analog inputs. It is ideal when you have a mix of I/O types or when you have limited panel space and need a direct Ethernet or RS485 connection.

redlion® EtherTRAK® Ethernet Combination I/O Module, Double Density, 32 Inputs, 8 Outputs, 0.003 % Resolution, +/-0.1 % Accuracy, 10 to 30 VDC, 3 mA at 24 VDC, 1 W at 24 VDC Power, -40 to 75 deg C, 4-3/4 in L x 4.13 in W Dimensions
MFG #: E2-MIX24880-D

EECO #: RNE2MIX24880D

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Accuracy
+/-0.1
Resolution
0.003
Power Rating
1 W at 24 VDC
Voltage Rating
10 to 30
Number of Inputs
32.0000
Temperature Rating
-40 to 75
Type
Double Density
Dimensions
4-3/4 in L x 4.13 in W
Amperage Rating
3 mA at 24 VDC
Number of Outputs
8
Features
  • 24 discrete inputs and/or 8 discrete outputs and 8 analog inputs in one compact module
  • Ethernet or RS485 modbus compatibility
  • High density design saves space and cost
  • 16 bit A/D for precision measurement
  • True hot swap of modules in live system
redlion_E2MIX24880D_Manual
redlion_E2MIX24880D_Specification_Sheet
