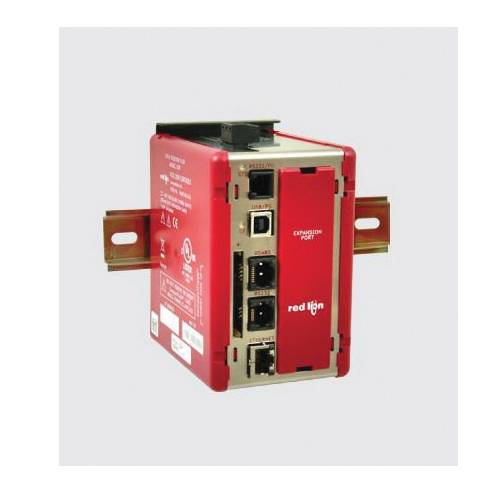

redlion® DSPSX000 Data Station With Multiple Protocol Converter, Data Logger and Web Server, 24 VDC Power Rating, 50 to 150 Hz

The Data Station Plus was designed to act as a nexus for industrial data collection and management. The unit offers multiple protocol conversion, data logging and remote machine access. With three built-in serial ports and a 10 Base-T/100 Base-TX Ethernet port, the unit performs protocol conversion, allowing disparate devices to communicate seamlessly with one another. The Ethernet port supports up to ten protocols simultaneously using Crimson® 3.0, so even Ethernet to Ethernet protocols can be converted. The CompactFlash® card allows data to be collected and stored for later review. The files are stored in simple CSV file format allowing common applications, such as Microsoft Excel and Access, to view and manage the data. The free Web sync utility provides a means to synchronize the files with a PC's hard drive for permanent storage. The CompactFlash® card may also be used to load new configuration files into the Data Station. The built-in web server allows log files to be retrieved manually and also provides access to the unique "virtual HMI". The virtual HMI is programmed just like redlion® G3 Series of HMI. Any standard web browser such as Internet Explorer or Netscape may be used to monitor or control the HMI from a PC anywhere in the world. The USB port may be used for blazing fast file downloads or to mount the Data Station's CompactFlash® card as an external drive to your PC. The Data Station's DIN rail mounting saves time and panel space and snaps easily onto standard top hat (T) profile DIN rail.
