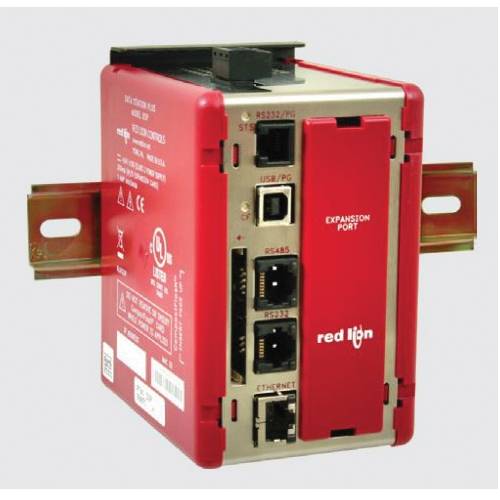

redlion® DSPLE001 Data Station With Multiple Protocol Converter and Extended Operating Temperature, 24 VDC Power Rating, 50 to 150 Hz
Share Share Print Print
Red Lion

redlion® DSPLE001 Data Station With Multiple Protocol Converter and Extended Operating Temperature, 24 VDC Power Rating, 50 to 150 Hz

Short Description

The Data Station Plus was designed to act as a nexus for industrial data collection and management. With three built-in serial ports and a 10 Base-T/100 Base-TX Ethernet port, the unit performs protocol conversion, allowing disparate devices to communicate seamlessly with one another. The CompactFlash® card allows new configuration files to be loaded into the Data Station Plus. The USB port may be used for blazing fast file downloads or to mount the Data Station's CompactFlash® card as an external drive to your PC. The Data Station's DIN rail mounting saves time and panel space and snaps easily onto standard top hat (T) profile DIN rail.

redlion® Data Station, Series: DSPLE, 24 VDC Power, 50 to 150 Hz Frequency, (2) RS-232, (1) RS-422/485 Port, 3 Ports, Environmental Conditions: -20 to 70 deg C Operating Temperature, -30 to 70 deg C Storage Temperature

MFG #: DSPLE001

EECO #: RNDSPLE001

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43201553
Power Rating
24
Number of Ports
3
Frequency Rating
50 to 150
Environmental Conditions
-20 to 70 deg C Operating Temperature, -30 to 70 deg C Storage Temperature
Series
DSPLE
Features
  • Protocol conversion feature converts up to 15 protocols simultaneously
  • Extensive built-in driver list allows easy data mapping to PLCs, PCs and SCADA systems
  • 10/100 Base-TX Ethernet connection can connect to multiple devices via four protocols simultaneously
  • Independent serial ports provide virtually unlimited integration methods
redlion_DSPLE000_Manual
