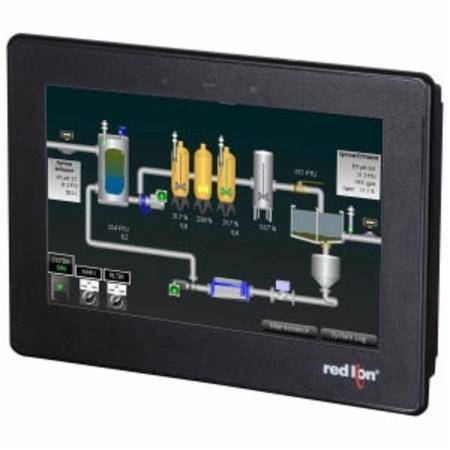

redlion® CR30000700000420 Widescreen HMI Operator Panel With Data Logging and Web Server, 10 to 30 VDC, 17.5 to 18 W, 7 in TFT LCD Display

Short Description

CR3000 HMIs provide industry leading protocol conversion and connectivity choices along with enhanced visual display features to deliver operator interface devices that easily scale and adapt as requirements change. The CR3000 automation HMIs from redlion® combine an everexpanding list of over 300 industrial drivers with the intuitive and powerful Crimson® 3.1 development platform to create an operator experience designed to easily adapt as needs change and operations grow. The CR3000 HMIs address more advanced needs with real-time data logging and a built-in web server.

redlion® HMI Operator Panel, Widescreen, Series: CR3000, 10 to 30 VDC, 17.5 to 18 W Power Source, TFT LCD Display, 7 in Display, (2) 10/100 Ethernet Port, (2) RS-232 Serial Port, (2) RS-232/RS-485 Serial Port, (1) USB Device Port for Upload/Download and Expansion Port for Select Add-On Network Modules Communication Ports, 800 x 480 pixel Display Resolution, Crimson® 3.1 Software, Memory: 512 MB Non-Volatile Flash, 430 cd/sq-m Brightness, -10 to 50 deg C, Polycarbonate, 7.63 in W x 2 in D x 5.43 in H Dimensions
MFG #: CR30000700000420

EECO #: RNCR30000700000420

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43211715
Approval
UL (Canada and US), CE
Material
Polycarbonate
Resolution
800 x 480
Application
Indoor, Factory Automation, OEM Machine Builders, Automotive, Water/Wastewater, Food and Beverage Applications
Display Type
TFT LCD
Backlight Type
LED
Mounting
Panel
Enclosure
NEMA 4X, IP66, Class I Div 2 Group A B C D
Operating Voltage
10 to 30 Volt DC
Temperature Rating
-10 to 50
Operating Temperature
-10 to 50 Deg C
Operator Interface Type
Touchscreen
Type
Widescreen
Memory
512 MB Non-Volatile Flash
Series
CR3000
Software
Crimson® 3.1
Warranty
5 Years
Dimensions
7.63 in W x 2 in D x 5.43 in H
Display Size
7
Application Memory
512 Megabyte Flash
Communication Ports
(2) 10/100 Ethernet Port, (2) RS-232 Serial Port, (2) RS-232/RS-485 Serial Port, (1) USB Device Port for Upload/Download and Expansion Port for Select Add-On Network Modules
Communication Port Type
(2) RS-232, (2) RS-422/485
Features
  • MQTT connector for Google cloud
  • OPC UA client driver
  • OPC UA historical access
  • Store and forward buffering for cloud connectors
  • Communicate with over 300 protocols
  • Easily convert between serial, USB and Ethernet devices
  • Manage multi-vendor environments with ease
  • 480 x 272 pixel, 16M color display
  • SD card slot for database upload/download
REDLNCE00109_1_4
redlion_CR10000400000210_Specification_Sheet
redlion_CR30000400000310_Manual
Qty Unit price
Ea
1 $1,819.64

Slpk
1 $1,819.64

Slqt
1 $1,819.64

Stpk
1 $1,819.64

Unit
1 $1,819.64
