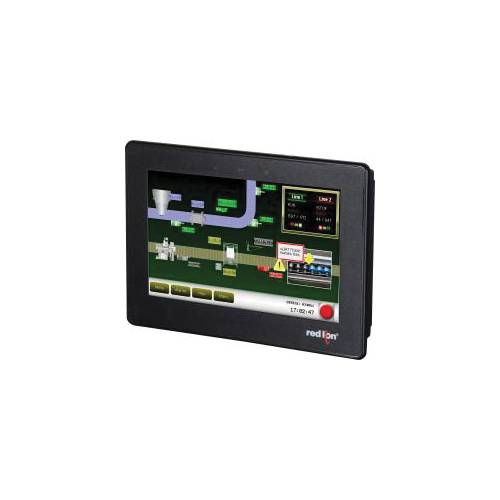

redlion® CR10000700000210 Widescreen HMI Operator Panel, 24 VDC, 6.2 W, 7 in TFT LCD Display, (1) 10/100 Ethernet Port, (1) RS-232 Serial Port, (1) RS-232/RS-485 Serial Port and (1) USB Device Port for Upload/Download
Share Share Print Print
Red Lion

redlion® CR10000700000210 Widescreen HMI Operator Panel, 24 VDC, 6.2 W, 7 in TFT LCD Display, (1) 10/100 Ethernet Port, (1) RS-232 Serial Port, (1) RS-232/RS-485 Serial Port and (1) USB Device Port for Upload/Download

Short Description

CR1000 HMIs provide industry leading protocol conversion and connectivity choices along with enhanced visual display features to deliver operator interface devices that easily scale and adapt as requirements change. The CR1000 automation HMIs from redlion® combine an everexpanding list of over 300 industrial drivers with the intuitive and powerful Crimson® 3.1 development platform to create an operator experience designed to easily adapt as needs change and operations grow. Basic requirements for machine interface and protocol conversion are easily handled by the CR1000 products.

redlion® HMI Operator Panel, Widescreen, Series: CR1000, 24 VDC, 6.2 W Power Source, TFT LCD Display, 7 in Display, (1) 10/100 Ethernet Port, (1) RS-232 Serial Port, (1) RS-232/RS-485 Serial Port and (1) USB Device Port for Upload/Download Communication Ports, 800 x 480 pixel Display Resolution, Crimson® 3.1 Software, Memory: 512 MB Non-Volatile Flash, 430 cd/sq-m Brightness, -10 to 50 deg C, Polycarbonate, 7.63 in W x 2 in D x 5.43 in H Dimensions
MFG #: CR10000700000210

EECO #: RNCR10000700000210

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43211715
Material
Polycarbonate
Application
Indoor, Factory Automation, OEM Machine Builders, Automotive, Water/Wastewater, Food and Beverage Applications
Display Type
TFT LCD
Temperature Rating
-10 to 50
Type
Widescreen
Memory
512 MB Non-Volatile Flash
Series
CR1000
Software
Crimson® 3.1
Warranty
5 Years
Dimensions
7.63 in W x 2 in D x 5.43 in H
Display Size
7
Communication Ports
(1) 10/100 Ethernet Port, (1) RS-232 Serial Port, (1) RS-232/RS-485 Serial Port and (1) USB Device Port for Upload/Download
Features
  • Communicate with over 300 protocols
  • Easily convert between serial, USB and Ethernet devices
  • Manage multi-vendor environments with ease
  • 800 x 480 pixel, 16M color display
  • SD card slot for database upload/download
