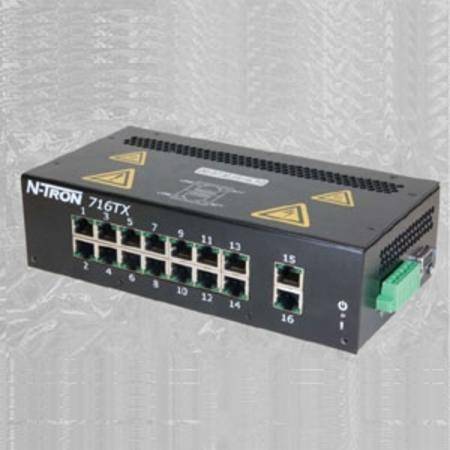

Red Lion Controls, Inc. 716TX-HV N-Tron® Ethernet Switch

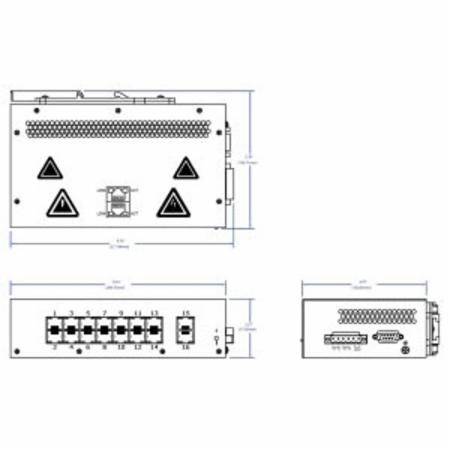

8.25" x 4.75" x 2.27", 40 to 160 VDC, 160 mA at 124 VDC, 16-Port, 10/100Base-TX, DIN Rail, Managed, Industrial, Ethernet Switch

Ethernet Switch; Type Managed, Industrial Ethernet Switch; Number of Ports 16; Type of Ports 10/100Base-TX; Uplinks Yes; VLAN Supported Yes; Multilink Trunking Enables Multiple Physical Ports to be Linked Together and Function as One Uplink, This Increases Bandwidth Between Switches Creates Redundancy; Management Detailed Ring Map and Fault Location Charting, N-Link Redundant N-Ring Coupling, N-View OPC Monitoring, Port Mirroring, DHCP Server, Option 82 Relay, Option 61, IP Fallback, Rapid Spanning Tree Protocol, Remote Monitoring Option, N-Ring Technology, Industrial Packaging and Specification; LED Yes; IGMP Snooping Yes; Full and Half Duplex Switching Yes; Auto-Negotiating Yes; Number of Addresses Supported 8000; Depth 4.75 Inch; Height 2.27 Inch; Length 8.25 Inch; Voltage Rating 40 to 160 Volt DC (Regulated); Current Rating 160 Milliamp at 124 Volt DC; Humidity Range 5 to 95 Percent (Non-Condensing); Temperature Rating -40 to 70 Deg C; Mounting Type 35 Millimeter DIN-Rail; Application Industrial, Railway, Security; Applicable Standard FCC/CE CFR 47 Part 15, Subpart B, Class A, EN55022, ICES-003, EN 61000-4-3/4/5/6, EN60950-1, GS/CE
