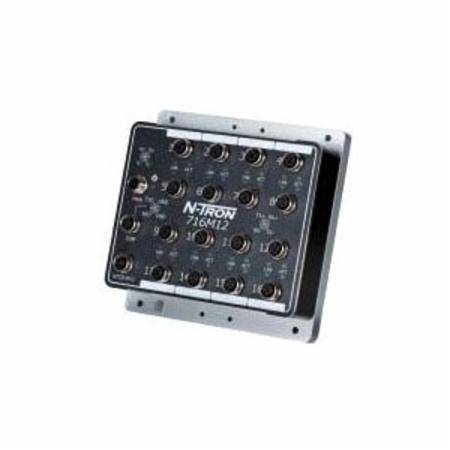

Red Lion Controls, Inc. 716M12 N-Tron® Ethernet Switch

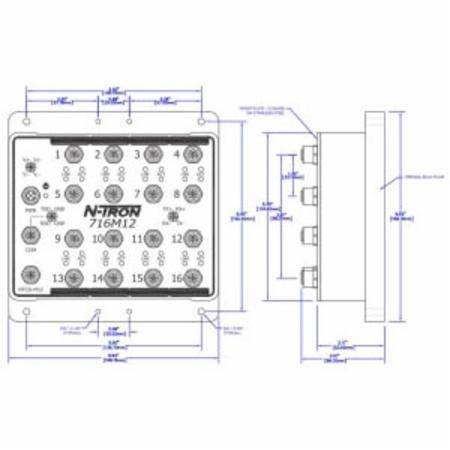

6.62" x 2.11" x 6.62", 10 to 49 VDC, 350 mA at 24 VDC, 16-Port, 10/100Base-TX, M12 D-Coded 4-Pin Female, DIN Rail, Managed, Industrial, Ethernet Switch

Ethernet Switch; Type Managed, Industrial Ethernet Switch; Number of Ports 16; Type of Ports 10/100Base-TX, M12 D-Coded 4-Pin Female; VLAN Supported Yes; Management Quality of Service, Port Trunking/Mirroring, DHCP, Remote Monitoring, N-Ring Technology, Industrial Specification; LED Yes; IGMP Snooping Yes; Full and Half Duplex Switching Yes; Number of Addresses Supported 8000; Depth 2.11 Inch; Height 6.62 Inch; Length 6.62 Inch; Voltage Rating 10 to 49 Volt DC (Regulated); Current Rating 350 Milliamp at 24 Volt DC; Enclosure Type IP67; Humidity Range 5 to 100 Percent (Non-Condensing); Temperature Rating -40 to 85 Deg C; Mounting Type 35 Millimeter DIN-Rail; Application Industrial, Railway, Security; Applicable Standard FCC/CE CFR 47 Part 15, Subpart B, Class A, ANSI/ISA 12.12.01-2007, CAN/CSA-C22.2 142-M1987/14-95/213-M1987, ANSI C63.4-2003, EN 61000-6-2, IEC 61000-4-2 (ESD)/61000-4-3 (RFAM)/IEC 61000-4-4 (EFT)/61000-4-5 (SURGE)/61000-4-6 (RFCM)/61000-4-8 (PFMF)/61000-4-11 (VDI)
