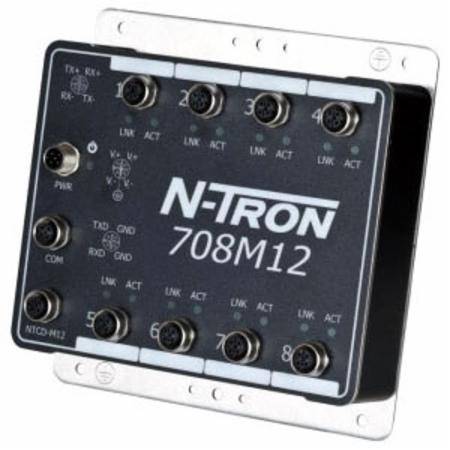

Red Lion Controls, Inc. 708M12 N-Tron® Ethernet Switch

6.62" x 1.71" x 6.62", 10 to 30 VDC, 250 mA at 24 VDC, 8-Port, 10/100Base-TX/RJ45, M12-D-Coded, 4-Pin Female, Managed, Industrial, Ethernet Switch

Ethernet Switch; Type Managed, Industrial Ethernet Switch; Number of Ports 8; Type of Ports 10/100Base-TX/RJ45, M12-D-Coded, 4-Pin Female; Uplinks Yes; VLAN Supported Yes; Multilink Trunking Enables Multiple Physical Ports to be Linked Together and Function as One Uplink, This Increases Bandwidth Between Switches Creates Redundancy; Management Full SNMP and Web Browser Management, Detailed Ring Map and Fault Location Charting, N-View OPC Switch Monitoring, Quality of Service, Port Mirroring, Rapid Spanning Tree, Remote Monitoring Options, N-Ring Technology, Industrial Packaging and Specifications; LED Yes; IGMP Snooping Yes; Auto-Negotiating Yes; Number of Addresses Supported 8000; Depth 1.71 Inch; Height 6.62 Inch; Length 6.62 Inch; RoHS Compliant; Voltage Rating 10 to 30 Volt DC; Current Rating 250 Milliamp at 24 Volt DC; Humidity Range 5 to 95 Percent (Non-Condensing); Temperature Rating -40 to 80 Deg C; Application Industrial, Security Equipment; Applicable Standard UL (Canada and US), CE, FCC, IEEE 1613, EN 61000-6-2/61000-3-2/3, IEC61000-4-2/3/4/5/6/11, EN55011, ANSI/ISA 12.12.01, T4A DNV -GL, NEMA TS1/TS2
