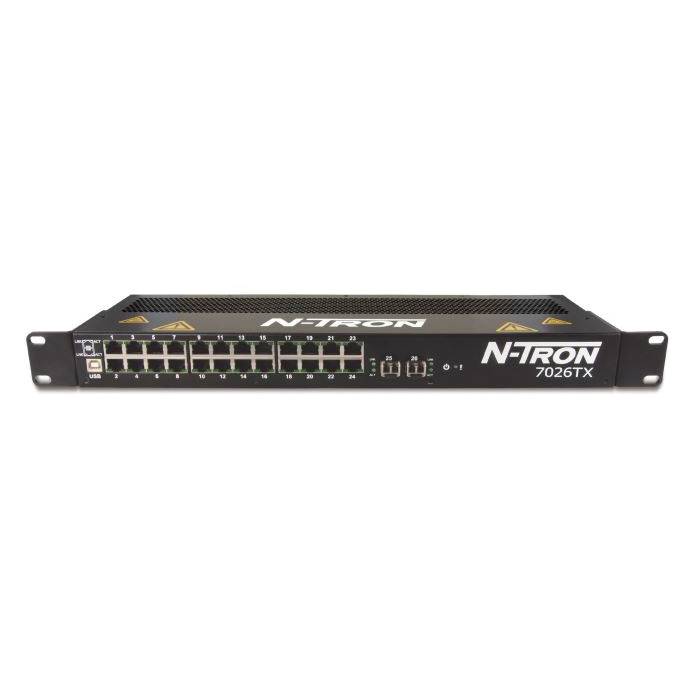

redlion® N-Tron® 7026TX-AC N-Tron® 26-Port Managed Ethernet Switch, Web Interface, (24) 10/100BaseTX RJ-45, (2) Gigabit SFP (Mini-GBIC) (1000BaseSX/LX Fiber With LC Style Connectors or 1000BaseT Copper With RJ-45 Connectors) Port, 8.8 Gbps Switching
Share Share Print Print
Red Lion

redlion® N-Tron® 7026TX-AC N-Tron® 26-Port Managed Ethernet Switch, Web Interface, (24) 10/100BaseTX RJ-45, (2) Gigabit SFP (Mini-GBIC) (1000BaseSX/LX Fiber With LC Style Connectors or 1000BaseT Copper With RJ-45 Connectors) Port, 8.8 Gbps Switching

Short Description

The N-TRON® 7026TX and 7026TX-AC fully managed industrial Ethernet Switches deliver expanded port offerings, including gigabit capability, in a standard 1U rackmount form factor. Loaded with a powerful combination of twenty-four (24) 10/100 BaseTX copper ports and two (2) gigabit full duplex SFP ports, the 7026TX Series is designed for high traffic industrial environments including process control, Ethernet I/O, data acquisition and other mission critical applications. Select the model based on your input power source - the 7026TX uses DC power, the 7026TX-AC accepts high voltage AC or DC power.

redlion® N-Tron® Ethernet Switch, 26-Port Managed, Series: N-Tron®, Web Interface, (24) 10/100BaseTX RJ-45, (2) Gigabit SFP (Mini-GBIC) (1000BaseSX/LX Fiber With LC Style Connectors or 1000BaseT Copper With RJ-45 Connectors) Port, 8.8 Gbps Switching, LLDP Protocol, Cat 3/5/5e/MDIX Auto Sensing Cable, 90 to 264 VAC/90 to 300 VDC, 215 mA at 120 VAC/110 mA at 124 VDC Supply, Rack Mounting, 16.09 in Width, 1-3/8 in Height, -40 to 80 deg C, Environmental Conditions: -40 to 85 deg C Storage Temperature, 5 to 95% Humidity
MFG #: 7026TX-AC

EECO #: RN7026TXAC

Brand: Red Lion
UPC #: 013964068030
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222612
Interface
Web
Cable Type
Cat 3/5/5e/MDIX Auto Sensing
Application
For high traffic industrial environments including process control, Ethernet I/O, data acquisition and other mission critical applications
Power Supply
90 to 264 VAC/90 to 300 VDC, 215 mA at 120 VAC/110 mA at 124 VDC
Mounting Type
Rack
Switching Capacity
8.8
Temperature Rating
-40 to 80
Environmental Conditions
-40 to 85 deg C Storage Temperature, 5 to 95% Humidity
Type
26-Port Managed
Width
16.09
Height
1-3/8
Series
N-Tron®
Protocol
LLDP
Features
  • ESD and surge protection on all built-in ports
  • Auto sensing 10/100 Base-TX, duplex and MDIX
  • Store and forward technology
  • 8000 MAC addresses
  • Configurable alarm contact
  • Configurable bi-color fault status LED
  • Rugged industrial DIN rail enclosure
