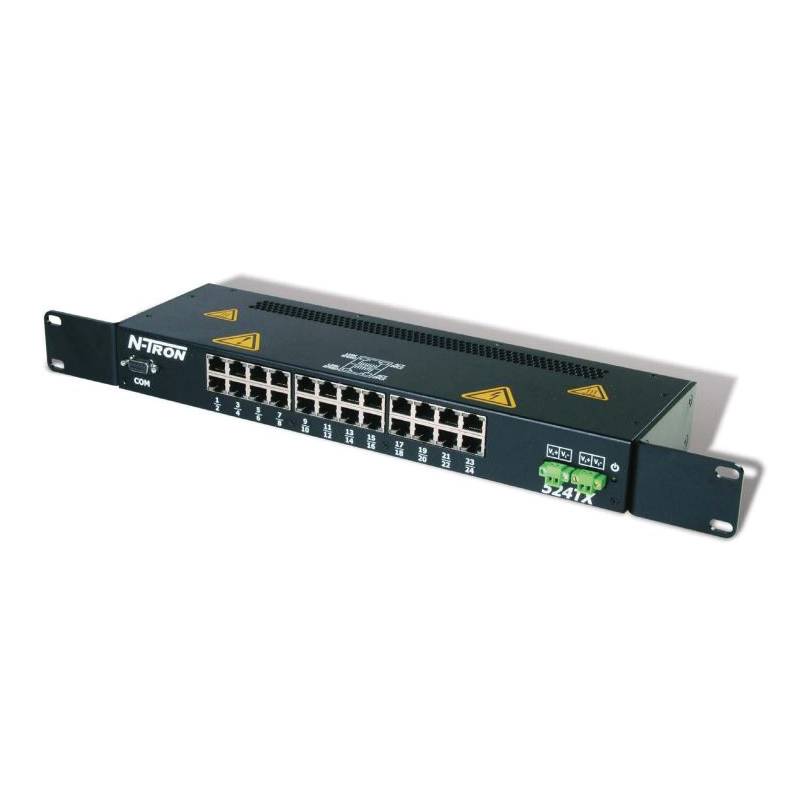

redlion® N-Tron® 524TX N-Tron® 24-Port Unmanaged Ethernet Switch, (24) 10/100BaseTX RJ-45 Port, 2.6 Gbps Switching
Share Share Print Print
Red Lion

redlion® N-Tron® 524TX N-Tron® 24-Port Unmanaged Ethernet Switch, (24) 10/100BaseTX RJ-45 Port, 2.6 Gbps Switching

Short Description

The N-TRON® 524TX Series industrial Ethernet Switch offers outstanding performance and ease of use. It is ideally suited for connecting Ethernet-enabled industrial and/or security equipment and can be optionally configured with advanced Ethernet communication management functions.

redlion® N-Tron® Ethernet Switch, 24-Port Unmanaged, Series: N-Tron®, (24) 10/100BaseTX RJ-45 Port, 2.6 Gbps Switching, Cat 3/5/MDIX Auto Sensing Cable, DB9 Connector, 10 to 30 VDC, 720 mA at 24 VDC Supply, Rack Mounting, 19 in Width, 1-3/8 in Height, -45 to 85 deg C, Environmental Conditions: 10 to 95% Humidity
MFG #: 524TX

EECO #: RN524TX

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222612
Cable Type
Cat 3/5/MDIX Auto Sensing
Application
For connecting Ethernet enabled industrial and/or security equipment, electric utility substations and shipboard applications
Power Supply
10 to 30 VDC, 720 mA at 24 VDC
Mounting Type
Rack
Connector Type
DB9
Switching Capacity
2.6
Temperature Rating
-45 to 85
Environmental Conditions
10 to 95% Humidity
Type
24-Port Unmanaged
Width
19
Height
1-3/8
Series
N-Tron®
Features
  • Unmanaged plug and play operation
  • Autosensing 10/100 Base-TX, duplex and MDIX
  • ESD and surge protection on all built-in ports
  • Bi-color LED's for link, speed, activity and duplex status
  • Rugged industrial rackmount enclosure
redlion_524TX_Line_Drawing
redlion_524TX_Manual
redlion_524TX_Specification_Sheet
