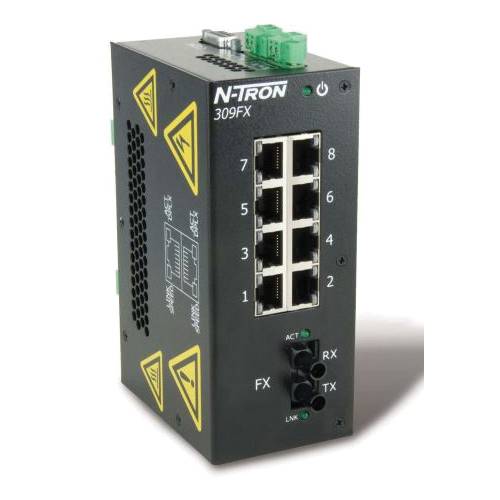

redlion® N-Tron® 309FX-SC N-Tron® 9-Port Unmanaged Ethernet Switch, (8) 10/100BaseTX RJ-45, (1) 100BaseFX Multi-Mode Fiber Port With SC Connectors Port, 2.6 Gbps Switching
Share Share Print Print
Red Lion

redlion® N-Tron® 309FX-SC N-Tron® 9-Port Unmanaged Ethernet Switch, (8) 10/100BaseTX RJ-45, (1) 100BaseFX Multi-Mode Fiber Port With SC Connectors Port, 2.6 Gbps Switching

Short Description

The N-TRON® 309FX-N, an unmanaged industrial Ethernet Switch, is designed for use in industrial data acquisition, control and Ethernet I/O applications. The rugged DIN rail enclosure protects the switch from harsh environmental conditions, enabling flawless performance in extreme settings.

redlion® N-Tron® Ethernet Switch, 9-Port Unmanaged, Series: N-Tron®, (8) 10/100BaseTX RJ-45, (1) 100BaseFX Multi-Mode Fiber Port With SC Connectors Port, 2.6 Gbps Switching, Cat 3/5/MDIX Auto Sensing Cable, SC Duplex Connector, 10 to 30 VDC, 260 mA at 24 V Supply, DIN Rail Mounting, 2.27 in Width, 5.45 in Height, -40 to 85 deg C, Environmental Conditions: -40 to 85 deg C Storage Temperature, 10 to 95% Humidity
MFG #: 309FX-SC

EECO #: RN309FXSC

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222612
Cable Type
Cat 3/5/MDIX Auto Sensing
Application
For use in industrial data acquisition, control, Ethernet I/O applications
Power Supply
10 to 30 VDC, 260 mA at 24 V
Mounting Type
DIN Rail
Connector Type
SC Duplex
Switching Capacity
2.6
Temperature Rating
-40 to 85
Environmental Conditions
-40 to 85 deg C Storage Temperature, 10 to 95% Humidity
Type
9-Port Unmanaged
Width
2.27
Height
5.45
Series
N-Tron®
Features
  • Autosensing 10/100 Base-TX, duplex and MDIX
  • ESD and surge protection on all built-in ports
  • Rugged industrial DIN rail enclosure
redlion_305FXNSC_Manual
redlion_309FXSC_Line_Drawing
redlion_309FXSC_Specification_Sheet
