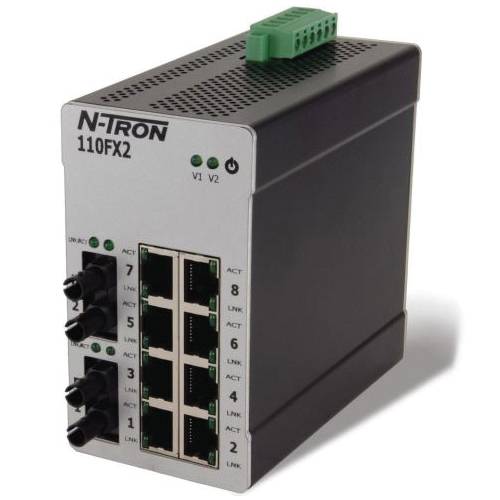

redlion® N-Tron® 110FXE2-SC-15 N-Tron® 10-Port Unmanaged Ethernet Switch, (8) 10/100BaseTX RJ-45, (2) 100BaseFX Single-Mode Fiber Ports With SC Connectors Port, 3.2 Gbps Switching

Short Description

The N-TRON® 110FX2 unmanaged industrial network switch is designed to meet the most demanding communications requirements while providing high throughput and minimum downtime. The 10-port Ethernet Switch is the perfect low cost solution for mission critical data acquisition, control and Ethernet I/O applications.

redlion® N-Tron® Ethernet Switch, 10-Port Unmanaged, Series: N-Tron®, (8) 10/100BaseTX RJ-45, (2) 100BaseFX Single-Mode Fiber Ports With SC Connectors Port, 3.2 Gbps Switching, Cat 3/5/MDIX Auto Sensing Cable, SC Duplex Connector, 10 to 49 VDC, 355 mA at 24 VDC Supply, DIN Rail Mounting, 2.4 in Width, 4-1/4 in Height, -40 to 80 deg C, Environmental Conditions: -40 to 85 deg C Storage Temperature, 5 to 95% Humidity
MFG #: 110FXE2-SC-15

EECO #: RN110FXE2SC15

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222612
Cable Type
Cat 3/5/MDIX Auto Sensing
Application
For mission critical data acquisition, control, Ethernet I/O, shipboard and industrial applications
Power Supply
10 to 49 VDC, 355 mA at 24 VDC
Mounting Type
DIN Rail
Connector Type
SC Duplex
Switching Capacity
3.2
Temperature Rating
-40 to 80
Environmental Conditions
-40 to 85 deg C Storage Temperature, 5 to 95% Humidity
Type
10-Port Unmanaged
Width
2.4
Height
4-1/4
Series
N-Tron®
Features
  • Unmanaged plug and play operation
  • Auto sensing duplex, speed and MDIX (RJ-45 ports)
  • Full wire speed communication
  • Store and forward technology
  • Compact, space saving package
  • ESD and surge protection on all built-in ports
  • Surge protection diodes on power inputs
  • LED link/activity status indication
  • Hardened metal DIN rail enclosure
redlion_102MCESC15MDR_Manual
redlion_110FXE2SC15_Line_Drawing
redlion_110FXE2SC15_Specification_Sheet
