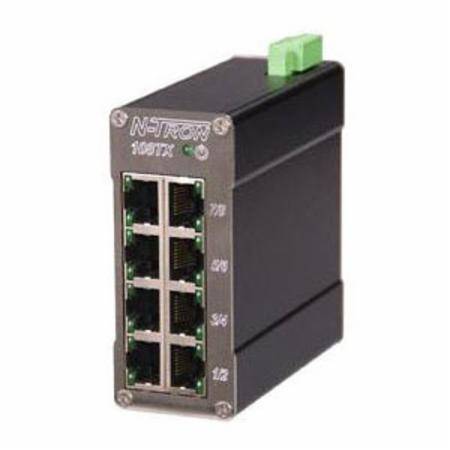

Red Lion Controls, Inc. 108TX-HV-MDR N-Tron® Ethernet Switch
Red Lion Controls, Inc. 108TX-HV-MDR N-Tron® Ethernet Switch
Red Lion Controls, Inc. 108TX-HV-MDR N-Tron® Ethernet Switch
Red Lion Controls, Inc. 108TX-HV-MDR N-Tron® Ethernet Switch
Share Share Print Print
Red Lion

Red Lion Controls, Inc. 108TX-HV-MDR N-Tron® Ethernet Switch

Short Description

1.489" x 3.6" x 3.5", 10 to 60 VDC, 250 mA at 24 V, 8-Port, 10/100Base-TX RJ45, Metal Case, DIN Rail, Unmanaged, Industrial, Ethernet Switch

Ethernet Switch; Type Unmanaged, Industrial Ethernet Switch; Number of Ports 8; Type of Ports 10/100Base-TX RJ45; Port Speed 1.6 Gbps; LED Yes; Full and Half Duplex Switching Yes; Auto-Negotiating Yes; Number of Addresses Supported 2000; Depth 3.6 Inch; Height 3.5 Inch; Length 1.489 Inch; Voltage Rating 10 to 60 Volt DC; Current Rating 250 Milliamp at 24 Volt; Humidity Range 10 to 95 Percent (Non-Condensing); Temperature Rating -40 to 70 Deg C; Mounting Type 35 Millimeter DIN-Rail; Enclosure Material Metal; Application Railway, Mission Critical Data Acquisition, Control and Ethernet I/O; Applicable Standard FCC/CE, EN55022, ICES-003, EN61000-4-2/3/4/5/6, EN50155, EN60950-1

MFG #: 108TX-HV-MDR

EECO #: RN108TXHVMDR

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222612
Port Speed
1.6 Gbps
Number of Ports
8
Number of Addresses Supported
2000
Type
Unmanaged, Industrial Ethernet Switch
Depth
3.6 Inch
Height
3.5 Inch
Features
  • Compact, Space Saving Package
  • Auto-Sensing Speed and Flow Control, Full Wire Speed Communications
  • Store and Forward Technology
  • Surge Protection Diodes on Power Inputs
  • Extended Environmental Specifications, High Performance, ESD Protection Diodes on all Ports
  • Plug and Play Operation, Unmanaged Operation
  • Full Wire Speed Capable
  • Eliminates Network Collisions, Increases Network Determinism
