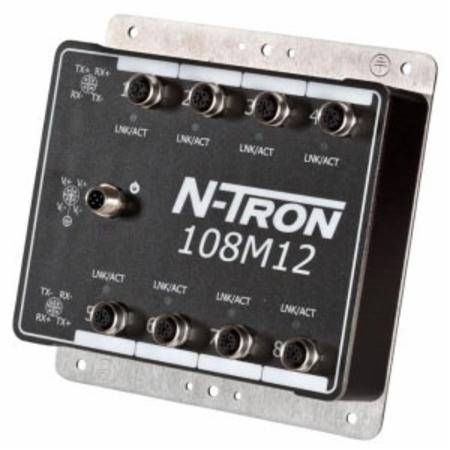

Red Lion Controls, Inc. 108M12-HV N-Tron® Ethernet Switch

Short Description

6.62" x 1.71" x 6.62", 10 to 60 VDC, 250 mA at 24 V, 8-Port, 10/100Base-TX M12, Unmanaged, Industrial, Ethernet Switch

Ethernet Switch; Type Unmanaged, Industrial Ethernet Switch; Number of Ports 8; Type of Ports 10/100Base-TX M12; Port Speed 1.6 Gbps; LED Yes; Full and Half Duplex Switching Yes; Auto-Negotiating Yes; Number of Addresses Supported 2000; Depth 1.71 Inch; Height 6.62 Inch; Length 6.62 Inch; Voltage Rating 10 to 60 Volt DC; Current Rating 250 Milliamp at 24 Volt; Enclosure Type IP67/NEMA 6; Humidity Range 5 to 100 Percent (Non-Condensing); Temperature Rating -40 to 70 Deg C; Application Mission Critical Railway, Data Acquisition, Control and Ethernet I/O; Applicable Standard FCC/CE, EN55022, ICES-003, EN61000-4-2/3/4/5/6, EN50155, EN60950-1

MFG #: 108M12-HV

EECO #: RN108M12HV

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222612
Port Speed
1.6 Gbps
Number of Ports
8
Number of Addresses Supported
2000
Type
Unmanaged, Industrial Ethernet Switch
Depth
1.71 Inch
Height
6.62 Inch
Features
  • Unmanaged Operation
  • Bulkhead Mountable, Dustproof
  • Protection Against Low/High Pressure Water Jet, Temporary Immersion in Water
  • Store and Forward Technology, Full Wire Speed Communications, ESD Protection Diodes on all Port
  • Hardened Metal Bulkhead Mountable, Extended Environmental Specifications
  • Surge Protection Diodes on Power Inputs, Plug and Play Operation, Full Wire Speed Capable
  • Eliminates Network Collisions, Increases Network Determinism

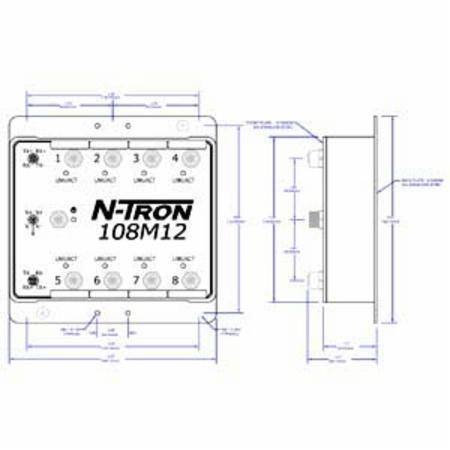

REDLNC_108M12_CAD
