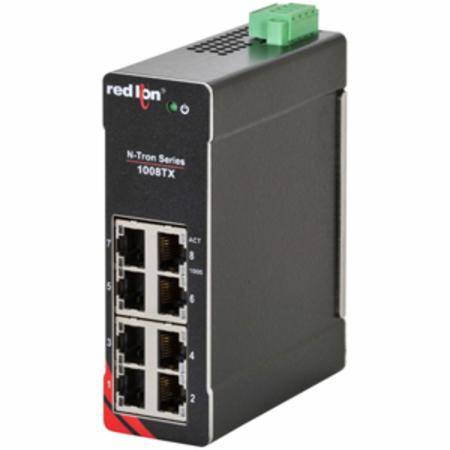

redlion® 1008TX Unmanaged Network Switch, 10/100/1000BaseTX Interface, (8) RJ45 10/100/1000BaseT(X) Port, 16 Gbps Memory

Short Description

1.51" x 4.32" x 4.99", 10 to 49 VDC, 250 mA at 24 V, 8-Port, 10/100/1000BaseT, Industrial, Ethernet Switch

redlion®, 1008TX, Network Switch, Unmanaged, 10/100/1000BaseTX Interface, (8) RJ45 10/100/1000BaseT(X) Port, Memory: 16 Gbps, Network: >/=Cat3, >/=Cat5, >/=Cat5e, 10 to 49 VDC Supply, 1.51 in Width, 4.62 in Height, -40 to 85 deg C, Environmental Conditions: 10% to 95% Humidity
MFG #: 1008TX

EECO #: RN1008TX

Brand: Red Lion
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
43222612
Interface
10/100/1000BaseTX
Power Supply
10 to 49
Number of Ports
8
Temperature Rating
-40 to 85
Environmental Conditions
10% to 95% Humidity
Number of Addresses Supported
8000
Type
Unmanaged
Depth
4.32 Inch
Width
1.51
Height
4.62
Memory
16
Features
  • Unmanaged Operation
  • Extended Environmental Specifications
  • -40 deg to 85 degC Operating Temperature
  • Compact Size, Smaller Footprint
  • Greater than 2M Hours MTBF
  • Supports Full/Half Duplex Operation
  • Up to 16.0 Gb/s Maximum Throughput
  • MDIX Auto Cable Sensing (RJ-45)
  • Auto Sensing Speed and Flow Control
  • Full Wire Speed Communications
  • Supports up to 8,000 MAC Addresses
  • Jumbo Frame Support
  • Store-and-forward Technology
  • Redundant Power Inputs (10-49 VDC)
  • LED Link/Activity Status Indication
REDLNC_1008TX_CAD
REDLNCE00030_1_2
redlion_1008TX_Specification_Sheet
redlion_1008TX_User_Manual
Qty Unit price
Ea
1 $1,187.47

Slpk
1 $1,187.47

Slqt
1 $1,187.47

Stpk
1 $1,187.47

Unit
1 $1,187.47
