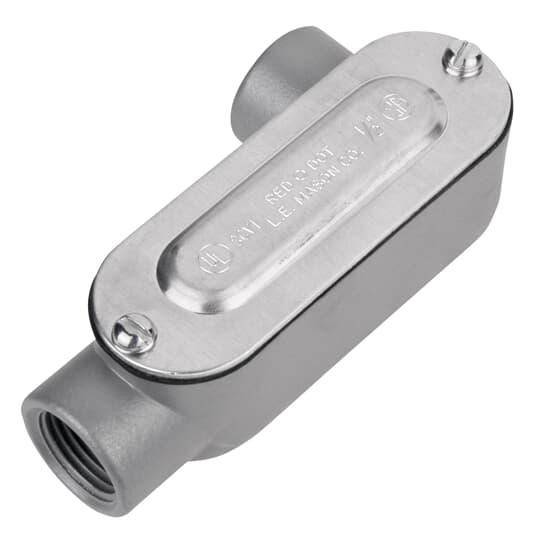

Red Dot® D-Pak™ DALR-5-CG A Series Type LR Conduit Body With Cover, Gasket, 1-1/2 in Hub, 36.5 cu-in Capacity, Die Cast Aluminum, Powder Coated Urethane
Share Share Print Print
ABB

Red Dot® D-Pak™ DALR-5-CG A Series Type LR Conduit Body With Cover, Gasket, 1-1/2 in Hub, 36.5 cu-in Capacity, Die Cast Aluminum, Powder Coated Urethane

Short Description

Preferred for more than 50 years, Red Dot® weatherproof and conduit body solutions withstand the harshest elements and ensure trouble free installation and years of superior performance.

Red Dot® D-Pak™ Conduit Body, Type LR, Series: A Series, 1-1/2 in Hub, 2 Hubs, 36.5 cu-in, NPT/Set Screw, Die Cast Aluminum, Powder Coated Urethane, 7-7/8 in L x 3-3/8 in W x 2-3/4 in H
MFG #: DALR-5-CG

EECO #: RDDALR5CG

Brand: Steel City
UPC #: 042269003613
Attributes
Features
Documents
Product Information
Attributes
Finish
Powder Coated Urethane
UNSPSC
39131708
Hub Size
1-1/2
Material
Die Cast Aluminum
Application
For rigid/IMC conduit
Number of Hubs
2
Connection Type
NPT/Set Screw
Type
Type LR
Series
A Series
Capacity
36.5
Dimensions
7-7/8 in L x 3-3/8 in W x 2-3/4 in H
Features
  • Combination packaging of conduit body, cover and gasket reduces handling and inventory costs
  • See through wrapper provides instant identification and protects product on job site
  • Red Dot® quality in durable, die cast aluminum construction made to endure the elements
  • Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices
  • Threaded conduit bodies maintain a weather-resistant conduit system when used with covers and gaskets
  • Right side access opening
  • 1/0 AWG maximum wire fill
  • Copper-free die cast aluminum
