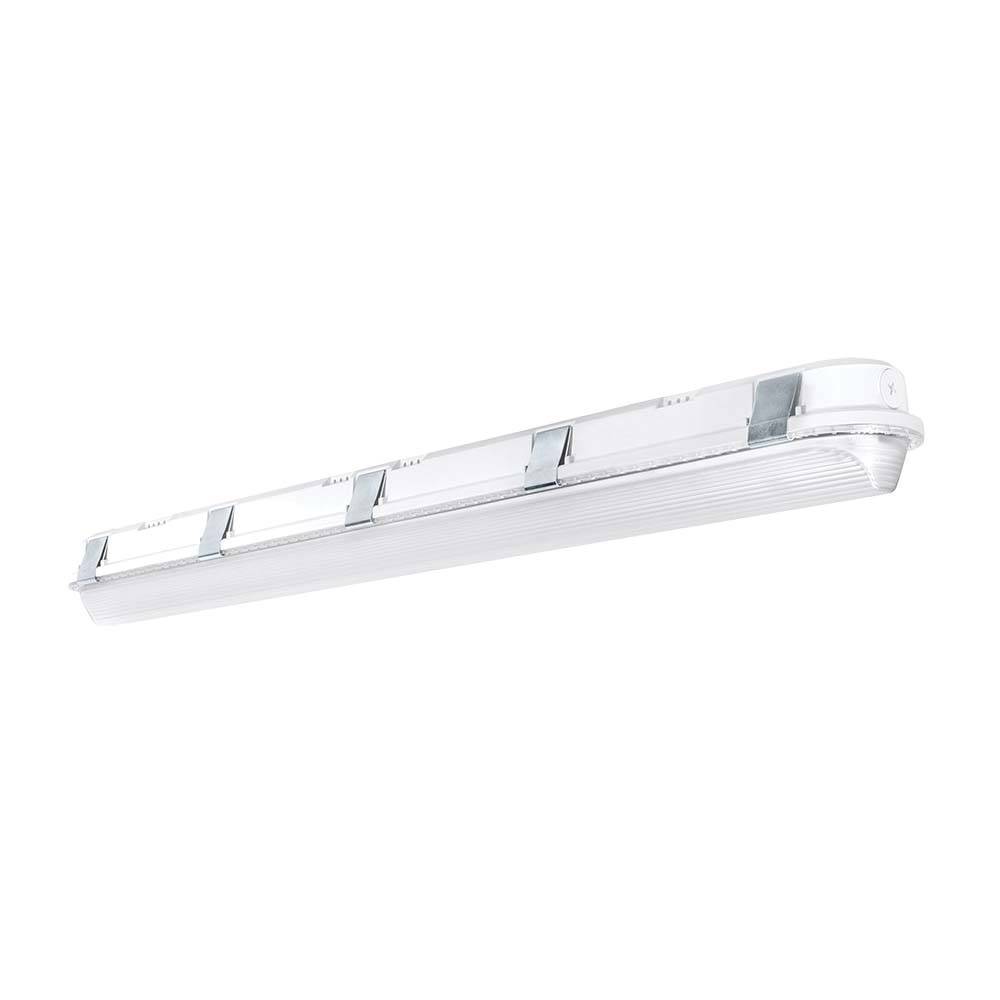

RAB SHARK4-36NW/D10 Dimmable Enclosed Gasketed Linear Washdown,) LED Lamp, 36 W Fixture, 120 to 277 VAC, White Housing
Share Share Print Print
RAB Lighting

RAB SHARK4-36NW/D10 Dimmable Enclosed Gasketed Linear Washdown,) LED Lamp, 36 W Fixture, 120 to 277 VAC, White Housing

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Illuminate your space with the RAB SHARK4-36NW/D10 Dimmable Enclosed Gasketed LED Lamp. This robust 36 W fixture is designed for washdown applications, offering exceptional durability and a bright 4000 K white light. Perfect for both indoor and outdoor settings, it combines efficiency and versatility in one sleek design.Enhanced by AI

RAB Linear Washdown, Dimmable Enclosed Gasketed, 120 to 277 VAC, 36 W Fixture, 0.14 to 0.31 A, LED Lamp, 36 W Lamp, L70 Lamp Base, 100000 hr Average Life, White Light, 4000 K Color Temperature, 74 CRI, Class 2/Constant Current Ballast, Polycarbonate Diffuser Lens, 4134 Lumens, NEMA 4X Enclosure, Polycarbonate Housing Material, White Housing Finish, 4-1/8 in H x 48 in W x 5-1/4 in D Dimensions

MFG #: SHARK4-36NW/D10

EECO #: RABSHARK436NWD10

Brand: RAB Lighting
UPC #: 019813308616
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39112102
Lamp Type
LED
Application
Wet Locations and Indoor Applications
Enclosure Type
NEMA 4X
Voltage Rating
120 to 277
Housing Material
Polycarbonate
Type
Dimmable Enclosed Gasketed
Warranty
5 years
Lens Type
Polycarbonate Diffuser
Dimensions
4-1/8 in H x 48 in W x 5-1/4 in D
Ballast Type
Class 2/Constant Current
Lamp Wattage
36
Housing Finish
White
Lamp Base Type
L70
Amperage Rating
0.14 to 0.31
Features
  • Impact-resistant linear washdown
  • Ideal for car washes, tunnels and stairwells
  • Mounting options chain, junction box, angled surface mount or vandal-resistant surface mount
  • IP66 rating protects against dust and water ingress
  • 0 to 10 VAC dimming circuit
  • 0.31 A at 120 VAC, 0.18 A at 208 VAC, 0.16 A to 240 VAC and 0.14 A at 277 VAC amperage ratings
IDW_DOCUMENT_806e219644c3f40d73e31b98e680a823e707b6023cb752d6a6f3d3a6db677619
IDW_DOCUMENT_9485da09233377faa7c8c421b1c78426419e34fd8fc6d30e074f492650093427
RAB_SHARK4_50W_D10_Installation_Instructions_Sheet
Qty Unit price
Ea
1 $175.55
