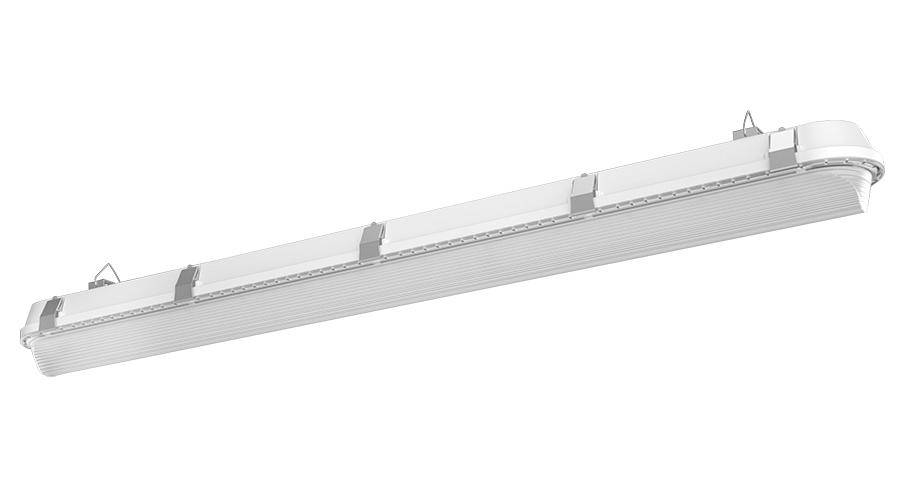

RAB SHARK4 SHARK Linear Fixture, LED Lamp, 50, 40, 30 W Fixture, 120, 208, 240, 277 V, White Housing
Share Share Print Print
RAB Lighting

RAB SHARK4 SHARK Linear Fixture, LED Lamp, 50, 40, 30 W Fixture, 120, 208, 240, 277 V, White Housing

Short Description

Illuminate your space with the RAB SHARK4 SHARK Linear Fixture! This versatile LED lamp offers powerful lighting options with multiple wattage choices and exceptional lumens output, ensuring optimal brightness for any environment. With a sleek white housing and durable design, it's perfect for both commercial and industrial applications. Upgrade your lighting solution today!Enhanced by AI

RAB, SHARK4, Fixture, Linear, Series: SHARK, 120, 208, 240, 277 V, 50, 40, 30 W Fixture, 0.42, 0.35, 0.26/0.24, 0.20, 0.15/0.21, 0.17, 0.13/0.19, 0.15, 0.12 A, Mercury/UV-Free Lighting Technology, LED Lamp, 139.1 to 154.8 Lumens/W Light Output, 100000 hr Average Life, 3500, 4000, 5000 K Color Temperature, 84 to 86 CRI, 0 to 10 V Dimming Ballast, Polycarbonate Diffuser Lens, 4489 to 7323 Lumens, IP66/IK09 Enclosure, Surface Mounting, White Housing Finish, 4-1/8 in H x 5-1/2 in W x 48 in L Dimensions

MFG #: SHARK4

EECO #: RABSHARK4

Brand: RAB
UPC #: 192552029384
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39112102
Lamp Type
LED
Application
For Indoor use only
Mounting Type
Surface
Enclosure Type
IP66/IK09
Voltage Rating
120, 208, 240, 277
Type
Linear
Series
SHARK
Warranty
5 Years
Lens Type
Polycarbonate Diffuser
Dimensions
4-1/8 in H x 5-1/2 in W x 48 in L
Ballast Type
0 to 10 V Dimming
Housing Finish
White
Amperage Rating
0.42, 0.35, 0.26/0.24, 0.20, 0.15/0.21, 0.17, 0.13/0.19, 0.15, 0.12
Features
  • Impact-resistant linear washdown
  • Ideal for tunnels and stairwells
  • Operating this fixture at 50 Watts with a voltage of 120 Volts will result in an Amperage rating of 0.42 Amps
  • Operating this fixture at 40 Watts with a voltage of 120 Volts will result in an Amperage rating of 0.35 Amps
  • Operating this fixture at 30 Watts with a voltage of 120 Volts will result in an Amperage rating of 0.26 Amps
  • Operating this fixture at 50 Watts with a voltage of 208 Volts will result in an Amperage rating of 0.24 Amps
  • Operating this fixture at 40 Watts with a voltage of 208 Volts will result in an Amperage rating of 0.20 Amps
  • Operating this fixture at 30 Watts with a voltage of 208 Volts will result in an Amperage rating of 0.15 Amps
  • Operating this fixture at 50 Watts with a voltage of 240 Volts will result in an Amperage rating of 0.21 Amps
  • Operating this fixture at 40 Watts with a voltage of 240 Volts will result in an Amperage rating of 0.17 Amps
  • Operating this fixture at 30 Watts with a voltage of 240 Volts will result in an Amperage rating of 0.13 Amps
  • Operating this fixture at 50 Watts with a voltage of 277 Volts will result in an Amperage rating of 0.19 Amps
  • Operating this fixture at 40 Watts with a voltage of 277 Volts will result in an Amperage rating of 0.15 Amps
  • Operating this fixture at 30 Watts with a voltage of 277 Volts will result in an Amperage rating of 0.12 Amps
RAB_Lighting_Inc_SHARK2_Installation_Manual
RAB_Lighting_Inc_SHARK4_Specification_Sheet
