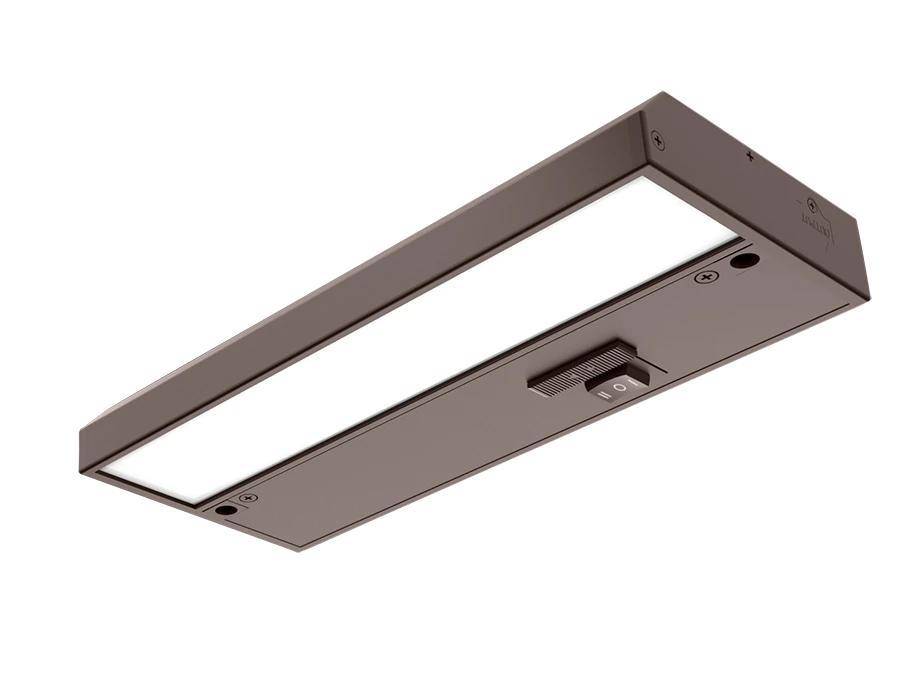

RAB KNOOKFA8 Field Adjustable LED Undercabinet Fixture With Switch, Injection Molded Endcap, LED Lamp, 3.7/3.8/3.9 W Fixture, 120 to 277 V, Powder Coated Housing
Share Share Print Print
RAB Lighting

RAB KNOOKFA8 Field Adjustable LED Undercabinet Fixture With Switch, Injection Molded Endcap, LED Lamp, 3.7/3.8/3.9 W Fixture, 120 to 277 V, Powder Coated Housing

Short Description

Illuminate your space with the RAB KNOOKFA8 Field Adjustable LED Undercabinet Fixture. Designed for versatility and efficiency, this fixture features a sleek powder-coated housing and adjustable light output to perfectly suit your needs. Enjoy warm, vibrant lighting with outstanding color accuracy, all while benefiting from a long-lasting LED design.Enhanced by AI

RAB LED Undercabinet Fixture, Field Adjustable, Series: KNOOKFA, 120 to 277 V, 3.7/3.8/3.9 W Fixture, 0.04 A, LED Lamp, 4 W Lamp, 65.1/73.4/74.9 Lumens/W Light Output, 50000 hr Average Life, Residential Warm/Warm Neutral/Warm White Light, 2700/3000/3500 K Color Temperature, 95/96 CRI, Polycarbonate Lens, 254/277/279 Lumens, Surface Mounting, Die Formed Steel Housing Material, Powder Coated Housing Finish, 8 in L x 3.65 in W x 1 in H Dimensions

MFG #: KNOOKFA8

EECO #: RABKNOOKFA8

Brand: RAB
UPC #: 019813835785
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111528
Lamp Type
LED
Application
For providing clean, uniform illumination across the length of the fixture, on walls and over countertops
Mounting Type
Surface
Voltage Rating
120 to 277
Housing Material
Die Formed Steel
Type
Field Adjustable
Series
KNOOKFA
Includes
Captive Screw, Quick Connector, 1/2 in Knockout, 3/8 in Wire Connector, (2) Flat Head Wood Screws, Screw Hole Cover and In-Line Connector
Warranty
5 years
Lens Type
Polycarbonate
Dimensions
8 in L x 3.65 in W x 1 in H
Lamp Wattage
4
Housing Finish
Powder Coated
Amperage Rating
0.04
Features
  • Soft, even light with adjustable three discrete color temperatures and output
  • Simple to connect multiple fixtures
  • Compatible with common ELV and TRIAC dimmers dimming down to 5%
  • Designed to provide soft, uniform lighting on work surfaces
  • Occupancy sensor accessory controls on/off and includes a switch to manually turn off fixtures
  • 96 CRI at 2700 K, 95 CRI at 3000/3500 K CRI rating
  • 3.9 W at 2700 K, 3.7 W at 3000 K, 3.8 W at 3500 K input wattage rating
  • 254 Lumens at 2700 K, 277 Lumens at 3000 K, 279 Lumens at 3000 K lumen rating
  • 65.1 Lumens/W at 2700 K, 74.9 Lumens/W at 3000 K, 73.4 Lumens/W at 3000 K light output rating
  • Mercury-free and UV-free
  • Class 2 constant current driver
RAB_KNOOKFA24_Instruction_Installation_Manual
RAB_KNOOKFA8_Specification_Sheet
