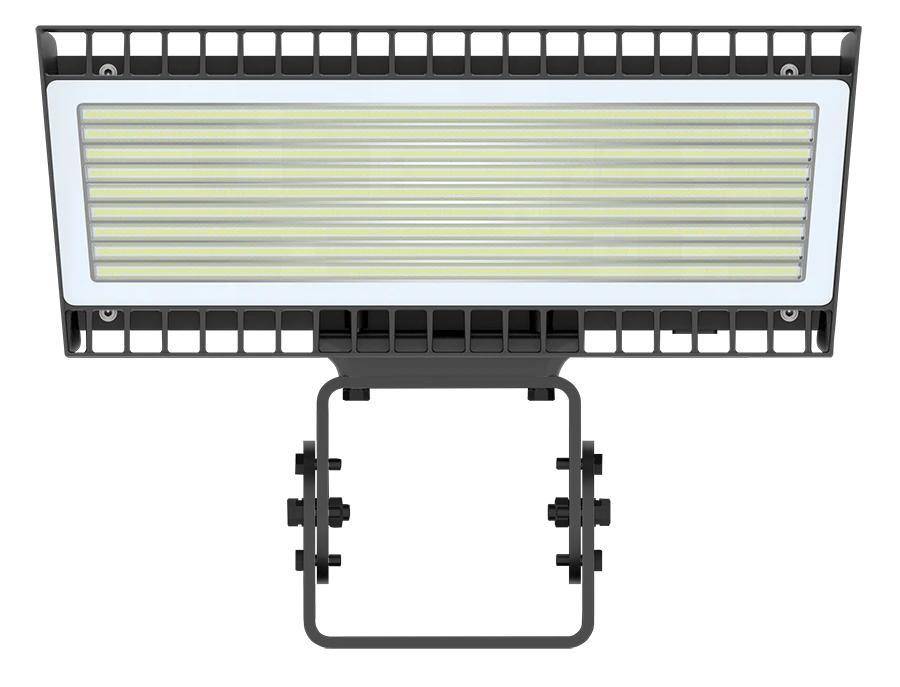

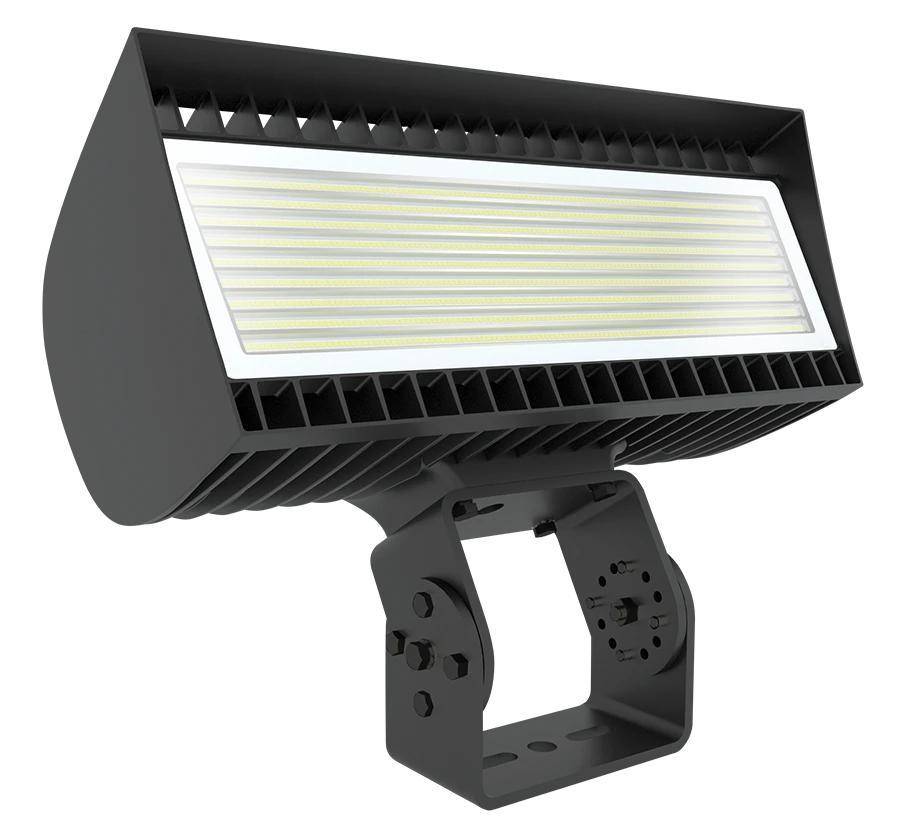

RAB FXLEDLT/480 FXLED Field-Adjustable Floodlight, LED Lamp, 480 V

Name: RAB FXLEDLT/480 FXLED Field-Adjustable Floodlight, LED Lamp, 480 V
Brand: RAB Lighting
SKU: RABFXLEDLT/480
Availability: InStock

Short Description

Illuminate your space with the RAB FXLEDLT/480 Field-Adjustable Floodlight, featuring advanced LED technology for exceptional brightness and energy efficiency. With a versatile design and robust construction, this floodlight is perfect for any outdoor application.Enhanced by AI

RAB, FXLEDLT/480, Floodlight, Field-Adjustable, Series: FXLED, 480 V, 0.93, 1.11 A, LED Lamp, 445, 534 W Lamp, 139.6 to 143 Lumens/W Light Output, 100000 hr Average Life, Neutral Light, 4000 K Color Temperature, 81 CRI, 0 to 10 V Dimmable Ballast, Tempered Glass Lens, 63023 to 71580 Lumens, NEMA 7H x 6V/IP66 Enclosure, Trunnion Mounting, Die-Cast Aluminum Housing Material, 16.59 in H x 21.88 in W x 10.66 in D Dimensions

MFG #: FXLEDLT/480

EECO #: RABFXLEDLT/480 RABFXLEDLT/480

Brand: RAB

UPC #: 192552019446

Attributes

Features

Documents

Product Information

Attributes

Lamp Type

LED

Application

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Mounting Type

Trunnion

Enclosure Type

NEMA 7H x 6V/IP66

Voltage Rating

480

Housing Material

Die-Cast Aluminum

Type

Field-Adjustable

Series

FXLED

Includes

Dimming control wiring for 0-10V dimming systems

Warranty

10 Years

Lens Type

Tempered Glass

Dimensions

16.59 in H x 21.88 in W x 10.66 in D

Ballast Type

0 to 10 V Dimmable

Lamp Wattage

445, 534

Amperage Rating

0.93, 1.11

Features

IP66 Rating protects against dust and water ingress

RAB_FXLEDLT_480_Specification_Sheet

RAB_FXLEDLTW_480_7PR_Installation_Manual
