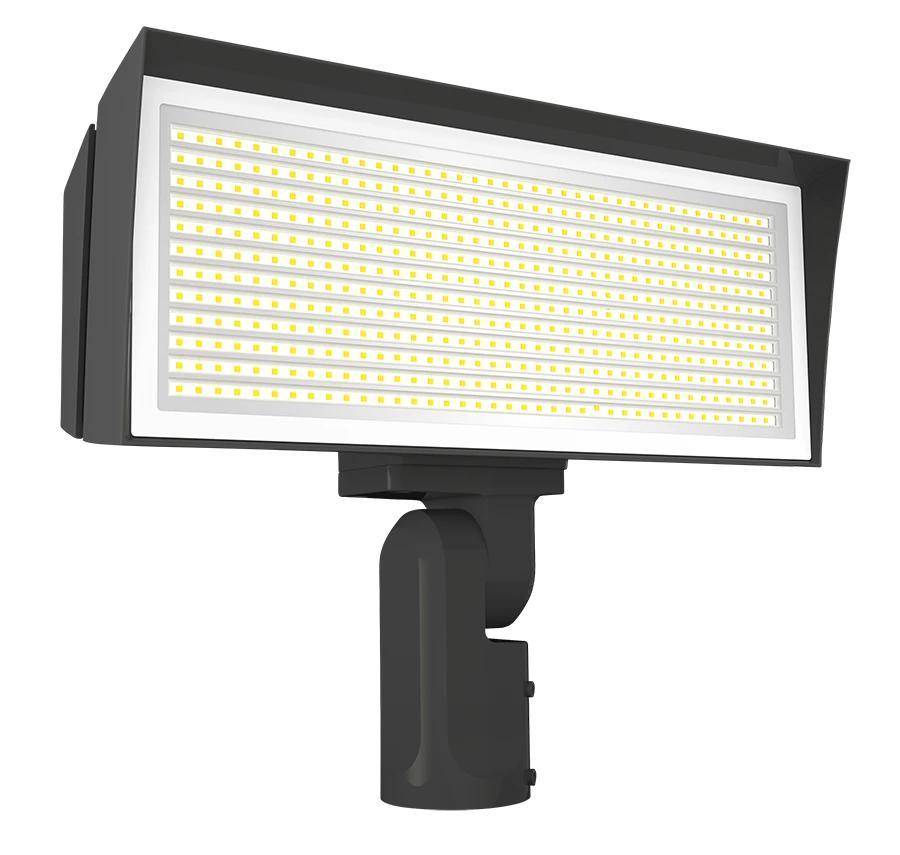

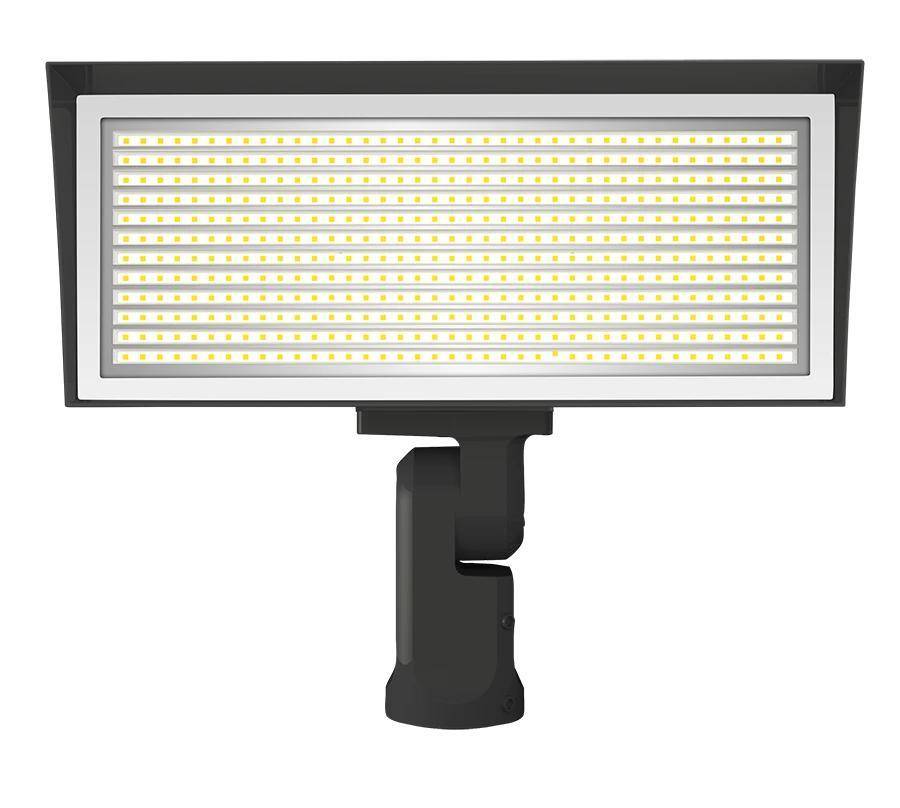

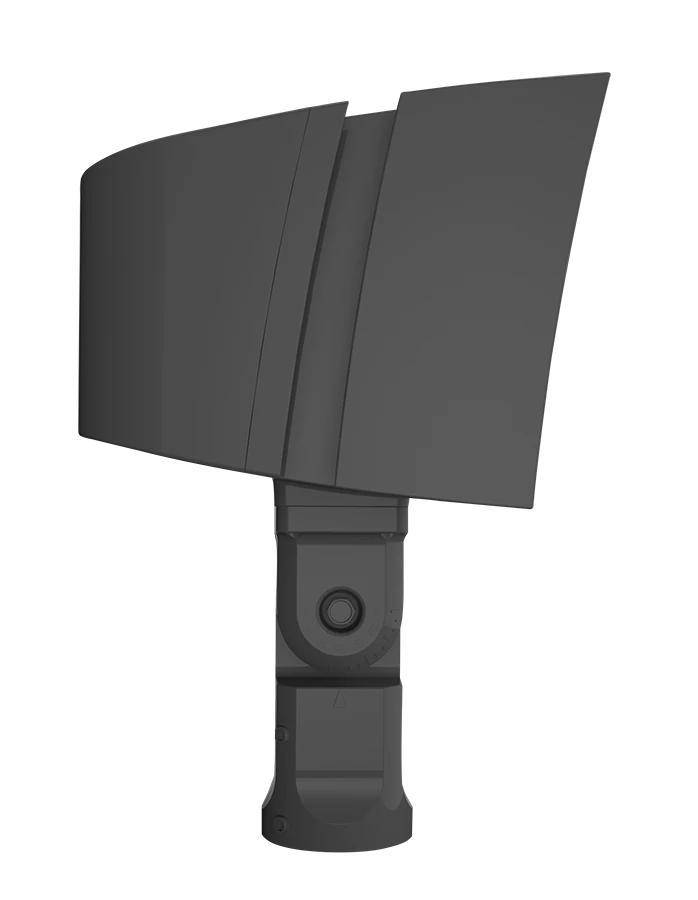

RAB FFLEDLSF/480 FFLED Field-Adjustable Floodlight, LED Lamp, 480 V

Name: RAB FFLEDLSF/480 FFLED Field-Adjustable Floodlight, LED Lamp, 480 V
Brand: RAB Lighting
SKU: RABFFLEDLSF/480
Availability: InStock

Short Description

Illuminate your space with the RAB FFLEDLSF/480 Field-Adjustable Floodlight. This powerful LED lamp delivers exceptional brightness and energy efficiency, featuring a robust design and adjustable settings to meet your lighting needs. Perfect for both commercial and industrial applications, it combines durability with advanced technology for long-lasting performance.Enhanced by AI

RAB, FFLEDLSF/480, Floodlight, Field-Adjustable, Series: FFLED, 480 V, 0.55, 0.39, 0.26 A, LED Lamp, 120, 180, 230 W Lamp, 149.8 to 163.7 Lumens/W Light Output, 100000 hr Average Life, Neutral Light, 4000 K Color Temperature, 83 CRI, 0 to 10 V Dimmable Ballast, Ultra Clear Lens, 17066 to 39017 Lumens, NEMA 7H x 6V/IP66 Enclosure, Slipfitter Mounting, Die-Cast Aluminum Housing Material, 15-1/4 in H x 18 in W x 9-1/2 in D Dimensions

MFG #: FFLEDLSF/480

EECO #: RABFFLEDLSF/480 RABFFLEDLSF/480

Brand: RAB

UPC #: 192552015844

Attributes

Features

Documents

Product Information

Attributes

Lamp Type

LED

Application

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Mounting Type

Slipfitter

Enclosure Type

NEMA 7H x 6V/IP66

Voltage Rating

480

Housing Material

Die-Cast Aluminum

Type

Field-Adjustable

Series

FFLED

Includes

Dimming control wiring for 0-10V dimming systems

Warranty

10 Years

Lens Type

Ultra Clear

Dimensions

15-1/4 in H x 18 in W x 9-1/2 in D

Ballast Type

0 to 10 V Dimmable

Lamp Wattage

120, 180, 230

Amperage Rating

0.55, 0.39, 0.26

Features

Ultra-efficient LED and optical design

RAB_FFLEDLSF_480_Specification_Sheet

RAB_FFLEDLYSFW_Installation_Manual
