RAB Lighting

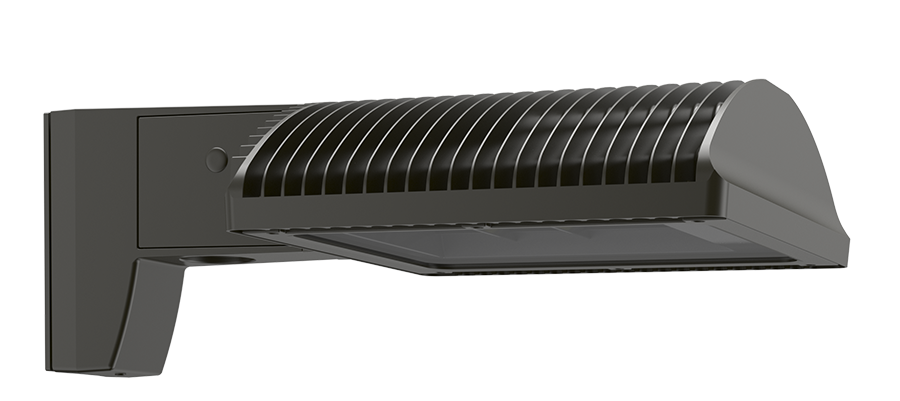

RAB ALED3T150 ALED® Type III Light Distribution Area Lighting With 8 in Pole Mounting Arm,) LED Lamp, 155 W Fixture, 120/208/240/277 VAC, Bronze Housing

Short Description

Illuminate your space with the RAB ALED3T150 Area Lighting fixture, featuring advanced Type III light distribution and a durable bronze housing. With a powerful 155W LED lamp and impressive 12,526 lumens output, this fixture is designed for efficiency and longevity, making it the perfect solution for your outdoor lighting needs.Enhanced by AI

RAB Area Lighting, Type III Light Distribution, Series: ALED®, 120/208/240/277 VAC, 155 W Fixture, 1.31/0.8/0.69/0.6 A, LED Lamp, 150 W Lamp, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 71 CRI, Class 2/Constant Current Ballast, Tempered Glass Lens, 12526 Lumens, IP66 Enclosure, Pole Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 15 in L x 23.4 in W x 4.5 in H Dimensions

MFG #: ALED3T150

EECO #: RABALED3T150

Brand: RAB Lighting
UPC #: 019813108391
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39112102
Lamp Type
LED
Application
Wet Locations, Parking Lots, Roadways, Pathways, Outdoor and General Area Lighting Applications
Mounting Type
Pole
Enclosure Type
IP66
Voltage Rating
120/208/240/277
Housing Material
Die-Cast Aluminum
Type
Type III Light Distribution
Series
ALED®
Warranty
5 years
Lens Type
Tempered Glass
Dimensions

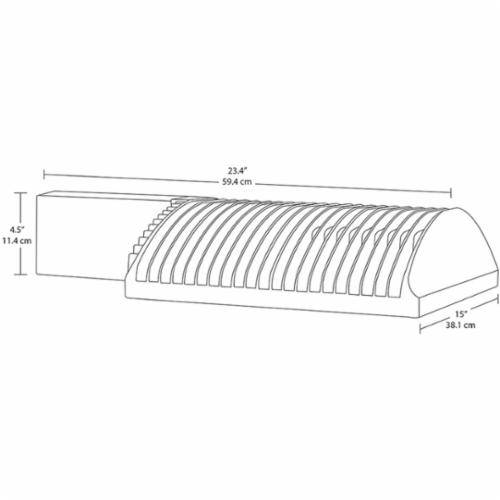

15 in L x 23.4 in W x 4.5 in H
Ballast Type
Class 2/Constant Current
Lamp Wattage
150
Housing Finish
Bronze
Amperage Rating
1.31/0.8/0.69/0.6
Features
  • High temperature silicone gaskets
  • Suitable for use in 40 deg C ambient temperature
  • 0.75 effective projected area
  • Specular vacuum metalized polycarbonate reflector
  • No photocell
IDW_DOCUMENT_65003e02554640b4aaed5c6da9084055569a131a8bffa666998b2bc4fd1dad0b
IDW_DOCUMENT_806e219644c3f40d73e31b98e680a823e707b6023cb752d6a6f3d3a6db677619
RAB_ALED3T105_Installation_Instructions
Qty Unit price
Ea
1 $616.00
