15.8 Cu in 5-KO, Hubbell Incorporated 296-1 Round Box

Short Description

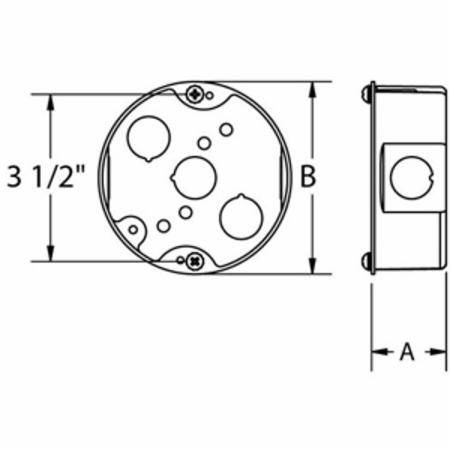

4" x 1-1/2", 5-Knockout, 15.8 Cu Inch, Raised Ground, Pre-Galvanized Steel, Round Box

Round Box; Type Ceiling/Wall Light Fixture; Depth 1-1/2 Inch; Diameter 4 Inch; Capacity 15.8 Cubic Inch; Shape Round; Number of Knockouts 5; Knockout Location (3) Bottom, (2) Sides; Knockout Size (3) 1/2 Inch Conduit Bottom, (2) 1/2 Inch Conduit Sides; Material 0.063 Inch Pre-Galvanized Steel; Mounting Raised Ground; Clamp Type Non-Metallic Sheathed Cable; Approval UL 514A, CSA C22.2; Standard Package 20 per Pack; Overall Dimension 1.56 Inch Length x 4 Inch Width x 4 Inch Height; Applicable Standard ANSI/NEMA OS1

MFG #: 296-1

EECO #: RA2961

Brand: Raco
UPC #: 050169029619
Attributes
Features
Documents
Product Information
Attributes
Shape
Round
UNSPSC
39121316
Knockout Size
(3) 1/2 Inch Conduit Bottom, (2) 1/2 Inch Conduit Sides
Number of Knockouts
5.0000
Depth
1-1/2 Inch
Capacity
15.8 Cubic Inch
Clamp Type
Non-Metallic Sheathed Cable
Knockout Location
(3) Bottom, (2) Sides
Features
  • No Protruding Ground Screw or Fan Mounting Screws Allows Easy Installation
  • Setback Tab Allows for Easy Box Installation of Different Wall Thickness
  • Metal Protection Plate Eliminates Debris or Damage to Wiring
  • Easy to Follow Instructions and Mounting Hardware Included
HUBELEE00509_A2_A34_A68
RACOINE00152_1
Qty Unit price
Ea
1 $61.41

Slqt
1 $61.41

Stpk
1 $1,228.20

Unit
1 $61.41
