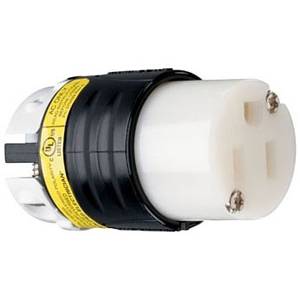

125 VAC 15 A 5-15R, Legrand North America LLC PS5269XGCM Straight Blade Connector, Black/White

Short Description

125 VAC, 15 A, 2-Pole, 3-Wire, 5-15R, Grounding, Black, White, Nylon, Straight Blade Connector

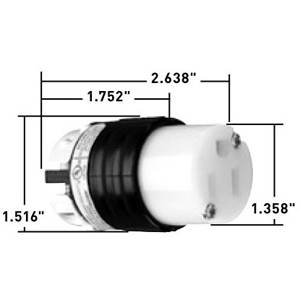

Straight Blade Connector; Type Angled; Constructional Feature Impact/Chemical Resistant; Configuration 5-15R; Voltage Rating 125 Volt AC; Current Rating 15 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Color Black/White; Cord Size 0.23 to 0.72 Inch; Material Nylon; Grade Specification; Approval UL 498, UL (Canada and US), Federal Specification UL WC596; RoHS Compliant; Overall Dimension 1.358 Inch Diameter x 2.638 Inch Depth; Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94; Applicable Standard NEMA WD-1/WD-6

MFG #: PS5269XGCM

EECO #: PSPS5269XGCM

UPC #: 785007237214
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121400
Approval
UL 498, UL (Canada and US), Federal Specification UL WC596
Material
Nylon
Ground Type
Grounding
Current Rating
15 amp
Voltage Rating
125 Volt AC
Number Of Poles
2
Number of Wires
3
Type
Angled, Grounding Connector
Grade
Specification
Cord Size
0.23 to 0.72 Inch
Configuration
5-15R
Constructional Feature
Impact/Chemical Resistant
Features
  • Integral Indication of Ground Continuity and Power Status
  • Continuous Monitoring Enhances Personnel Safety and Adds Convenience
  • Dual, Bright LED Indicators with 360 Degree Visibility
  • Green LED's Indicate Proper Ground Continuity and Power Status
  • Red LED's Indicate Ground Continuity Loss or Reversed Polarity
  • No LED Indicates Open Hot, Open Neutral or Hot to Ground Cross for 250 Volt Configurations
  • Hot to Ground Cross will be Indicated by a Green and Red LED
  • Chemical and Impact-Resistant Nylon Housing Features Horizontal, Easy-Grip Ribs on Back Body
  • Exclusive Two-Piece Cord Grip Accepts a Wide Range of Cord Widths
  • Provides More Consistent Pressure for Superior Conductor Retention
  • Internal Dust Shield Keeps Terminals Free of Contaminants
  • Recessed Cord-Grip Screw Reduces Screwdriver Slippage, Improves Safety
  • Quick-Thread Tri-Drive Assembly and Cord-Grip Screws Come Backed Out and Ready to Wire
  • Color-Coded Terminal Screws are Positioned on the Same Plane and Backed Out for Fast Installation
  • Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity
  • RoHS Compliant
PASSEME12408_G7_U108
PASSEME12573_1_2
PASSEME12750_1_3
Qty Unit price
Ea
1 $27.89

Slqt
1 $27.89

Stpk
1 $27.89

Unit
1 $27.89
