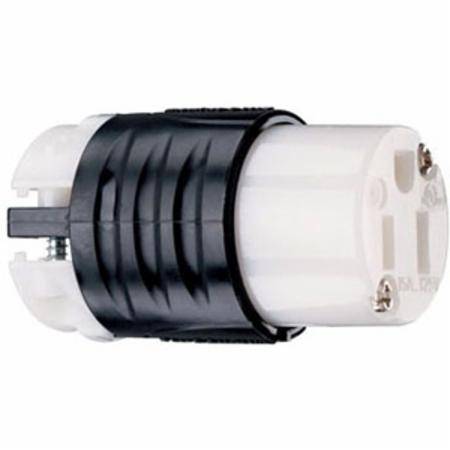

125 VAC 15 A 5-15R, Legrand North America LLC PS5269X Straight Blade Connector, Black/White

Short Description

125 VAC, 15 A, 2-Pole, 3-Wire, 5-15R, Grounding, Black, White, Nylon, Straight Blade Connector

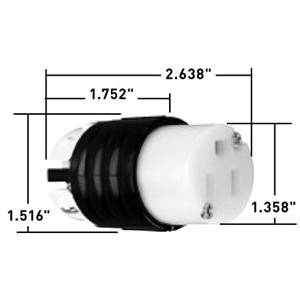

Straight Blade Connector; Constructional Feature Impact/Chemical Resistant; Configuration 5-15R; Voltage Rating 125 Volt AC; Current Rating 15 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Color Black/White; Cord Size 0.23 to 0.72 Inch; Material Nylon; Grade Specification; Approval UL 498, UL (Canada and US), CSA C22.2, Federal Specification UL WC596; RoHS Compliant; Overall Dimension 1.516 Inch Width x 2.638 Inch Depth x 1.516 Inch Height; Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94; Applicable Standard NEMA WD-1/WD-6

MFG #: PS5269X

EECO #: PSPS5269X

UPC #: 785007237306
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121400
Approval
UL 498, UL (Canada and US), CSA C22.2, Federal Specification UL WC596
Material
Nylon
Ground Type
Grounding
Current Rating
15 amp
Voltage Rating
125 Volt AC
Number Of Poles
2
Number of Wires
3
Type
Grounding Connector
Grade
Specification
Cord Size
0.23 to 0.72 Inch
Configuration
5-15R
Constructional Feature
Impact/Chemical Resistant
Features
  • Unit Arrives Completely Ready-to-Wire, Cuts Installation Time Significantly
  • Rugged Two-Piece Cord Grip Provides More Uniform Cord Retention
  • Internal Dust Shield Keeps Terminals Free of Contaminants
  • Tri-Drive Assembly Screws are Standard on All Specification Grade Plugs and Connectors
  • All 3-Wire Terminals Located on the Same Plane, Allows for Quick Wire Termination from any Angle
  • Heavy-Duty Brass Alloy Blades and Contacts, Resist Heat Rise, Provide Excellent Conductivity
  • Cord-Grip Screws Recessed to Protect Installer Against Screwdriver Head Slippage
  • RoHS Compliant
PASSEME11152_1_3
PASSEME12408_G5_U106
PASSEME12572_1_2
Qty Unit price
Ea
1 $22.65

Slqt
1 $22.65

Stpk
1 $22.65

Unit
1 $22.65
