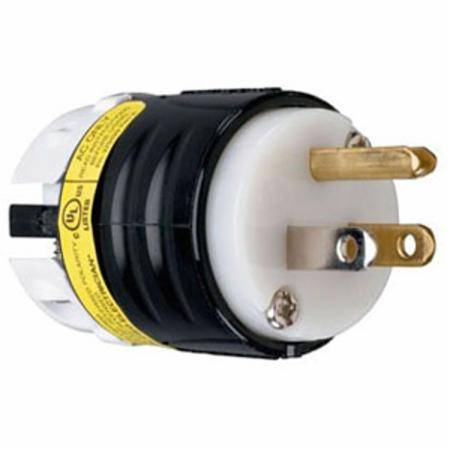

200 VAC 15 A, Legrand North America LLC PS5266XGCMCCV4 Straight Blade Plug, Black and White
Share Share Print Print
Legrand

200 VAC 15 A, Legrand North America LLC PS5266XGCMCCV4 Straight Blade Plug, Black and White

Short Description

1.358" x 2.791", 0.23 to 0.72" Cord, 200 VAC, 15 A, Black and White, Nylon, 2-Pole, 3-Wire, Grounding, Polarized, Straight Blade Plug

Straight Blade Plug; Type Polarized; Constructional Feature Impact Resistant, Chemical Resistant; Configuration 5-15P; Voltage Rating 125 Volt AC; Current Rating 15 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Cord Size 0.23 to 0.72 Inch; Material Nylon; Color Black, White; Grade Extra Hard Use; Approval UL (Canada and US), UL FS WC596; Overall Dimension 1.358 Inch Diameter x 2.791 Inch Depth; Applicable Standard NEMA WD1/WD6

MFG #: PS5266XGCMCCV4

EECO #: PSPS5266XGCMCCV4

UPC #: 785007046434
Attributes
Features
Documents
Product Information
Attributes
Color
Black, White
UNSPSC
39121402
Approval
UL (Canada and US), UL FS WC596
Material
Nylon
Ground Type
Grounding
Current Rating
15 amp
Voltage Rating
125 Volt AC
Number Of Poles
2
Number of Wires
3
Type
Polarized Grounding Connector
Grade
Extra Hard Use
Cord Size
0.23 to 0.72 Inch
Configuration
5-15P
Constructional Feature
Impact Resistant, Chemical Resistant
Features
  • Integral Indication of Ground Continuity and Power Status
  • Continuous Monitoring Enhances Personnel Safety and Adds Convenience
  • Dual, Bright LED Indicators with 360 Degree Visibility
  • Green LEDs Indicate Proper Ground Continuity and Power Status
  • Red LEDs Indicate Ground Continuity Loss or Reversed Polarity
  • No LED Indicates Open Hot, Open Neutral or Hot to Ground Cross
  • For 250 Volt Configurations Hot to Ground Cross will be Indicated by a Green and Red LED
  • Chemical and Impact Resistant Nylon Housing Features Horizontal, Easy Grip Ribs on Back Body
  • Exclusive Two Piece Cord Grip Accepts a Wide Range of Cord Widths Provides More Consistent Pressure for Superior Conductor Retention
  • Internal Dust Shield Keeps Terminals Free of Contaminants
  • Recessed Cord Grip Screw Reduces Screwdriver Slippage, Improves Safety
  • Quick Thread Tri-Drive Assembly and Cord Grip Screws Come Backed Out and Ready to Wire
  • Color Coded Terminal Screws are Positioned on the Same Plane and Backed Out for Fast Installation
  • Industrial Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity
PASSEME07285_1_2
PASSEME09623_F2_F3_F7_R128
PASSEMINST00039
Qty Unit price
Ea
1 $14.14

Slqt
1 $14.14

Stpk
1 $56.56

Unit
1 $14.14
