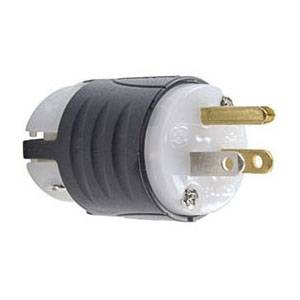

125 VAC 15 A, Legrand North America LLC PS5266XGCM Straight Blade Plug, Black/White

Short Description

125 V, 15 A, 2-Pole, 3-Wire, Black/White, Nylon, Ground Continuity Monitoring, Straight Blade Plug

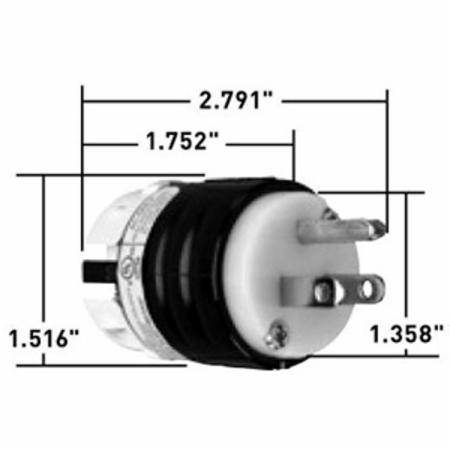

Straight Blade Plug; Constructional Feature Impact/Chemical Resistant; Configuration 5-15P; Voltage Rating 125 Volt; Current Rating 15 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Cord Size 0.23 to 0.72 Inch; Material Nylon; Color Black, White; Grade Extra Hard Use; Approval UL (Canada and US), Federal Specification UL WC596; RoHS Compliant; Diameter 1.358 Inch; Applicable Standard NEMA WD-1/WD-6

MFG #: PS5266XGCM

EECO #: PSPS5266XGCM

UPC #: 785007237207
Attributes
Features
Documents
Product Information
Attributes
Color
Black, White
UNSPSC
39121402
Approval
UL (Canada and US), Federal Specification UL WC596
Material
Nylon
Ground Type
Grounding
Current Rating
15 amp
Voltage Rating
125 Volt AC
Number Of Poles
2
Number of Wires
3
Type
Striaght Blade Plug
Grade
Extra Hard Use
Cord Size
0.23 to 0.72 Inch
Configuration
5-15P
Constructional Feature
Impact/Chemical Resistant
Features
  • Integral Indication of Ground Continuity and Power Status, Continuous Monitoring Enhances Personnel Safety and Adds Convenience
  • Dual, Bright LED Indicators with 360 Degree Visibility
  • Green LED's Indicate Proper Ground Continuity and Power Status
  • Red LED's Indicate Ground Continuity Loss or Reversed Polarity
  • No LED Indicates Open Hot, Open Neutral or Hot to Ground Cross
  • For 250 Volt Configurations
  • Hot to Ground Cross will be Indicated by a Green and Red LED
  • Chemical and Impact-Resistant Nylon Housing Features Horizontal, Easy-Grip Ribs on Back Body
  • Exclusive 2-Piece Cord Grip Accepts a Wide Range of Cord Widths
  • Provides more Consistent Pressure for Superior Conductor Retention
  • Internal Dust Shield Keeps Terminals Free of Contaminants
  • Recessed Cord Grip Screw Reduces Screwdriver Slippage, Improves Safety
  • Quick-Thread Tri-Drive Assembly and Cord-Grip Screws Come Backed-Out and Ready to Wire
  • Color Coded Terminal Screws are Positioned on the Same Plane and Backed Out for Fast Installation
  • Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity
  • RoHS Compliant
