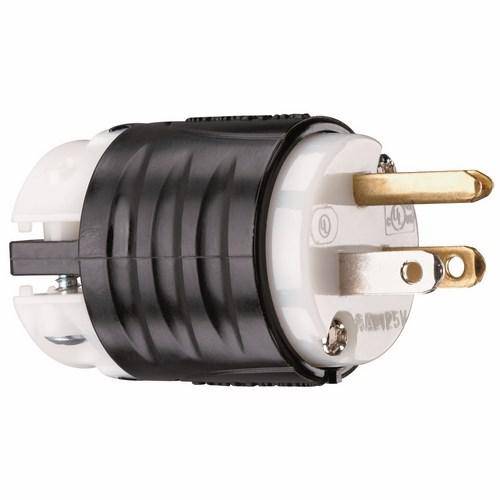

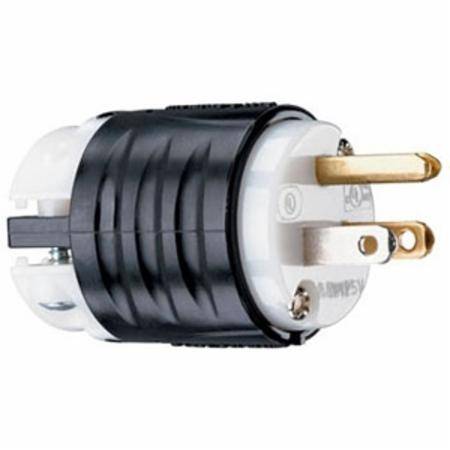

Pass & Seymour® PS5266X Extra Hard Use Wire Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White

Short Description

125 V, 15 A, 2-Pole, 3-Wire, Black/White, Nylon, Grounding, Straight Blade Plug

Pass & Seymour®, PS5266X, Straight Blade Plug, Extra Hard Use Wire Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Specification Grade, 0.23 to 0.69 in Diameter Cord, -40 to 75 deg C, Grounding Wire Terminal, Nylon, Black/White, 1.516 in H x 1.516 in W x 1.752 in D Dimensions
MFG #: PS5266X

EECO #: PSPS5266X

Brand: Pass & Seymour
UPC #: 785007236903
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121402
Approval
UL 498, CSA C22.2
Material
Nylon
Application
Industrial, Retail, Health Care, Office, Education, Hospitality/Lodging, Institution and Multiple Dwelling, Extra Hard Applications
Ground Type
Grounding
Terminal Type
Grounding Wire
Current Rating
15 amp
Voltage Rating
125
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 75
Type
Extra Hard Use Wire Grounding
Grade
Specification
Cord Size
0.23 to 0.72 Inch Diameter

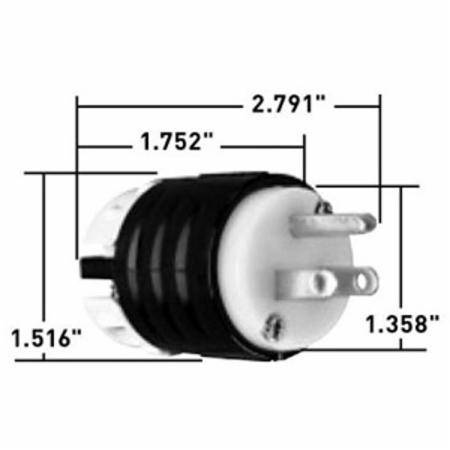

Dimensions
1.516 in H x 1.516 in W x 1.752 in D
Configuration
5-15P
Amperage Rating
15
Constructional Feature
Impact/Chemical Resistant
Features
  • Unit arrives completely ready-to-wire, cuts installation time significantly
  • Nylon housing provides impact and chemical resistance
  • Rugged two-piece cord-grip provides more uniform cord retention
  • Internal dust shield keeps terminals free of contaminants
  • Tri-drive assembly screws standard on all specification grade plugs and connectors
  • 3-wire terminals located on the same plane, allows for quick wire termination from any angle
  • Heavy duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity
  • Cord-grip screws recessed to protect installer against screwdriver head slippage
  • 1500 VAC minimum dielectric withstand voltage
  • 30 deg C maximum, 50 cyclest 150% rated current temperature rise
PASSEME11152_1_3
PASSEME12408_G2_G5_U105
PASSEME12480_1_2
IDW_DOCUMENT_8f949e88cd1c32594192a8f6b2e7b37a17cf060d149285dc8182e4cb816cf3bb
IDW_DOCUMENT_0f63ce9b8f75177a5e2bfbf3086724d52da8a5fbe41ff005a994b2eb1ab1b59d
IDW_DOCUMENT_3bed96740a0d45a04268fee006640daa55e96a16a1e9975ccd7e62eeca6de5d7
Qty Unit price
Ea
1 $13.03

Slqt
1 $13.03

Stpk
1 $13.03

Unit
1 $13.03
