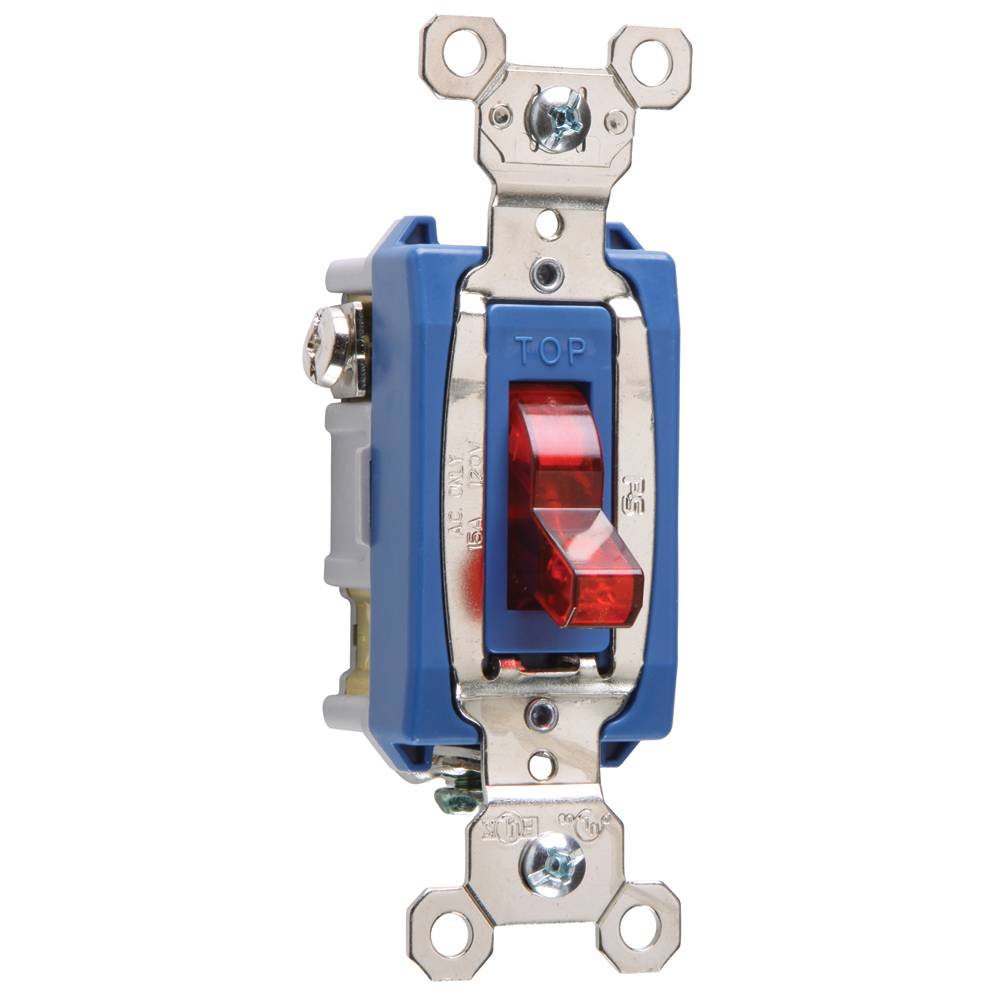

Pass & Seymour® PS15AC1RPL Heavy Duty Specification Grade Pilot Light Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp Power Rating

Short Description

Designed to withstand abuse and constant use in demanding applications, these durable switches virtually eliminate contact bounce and arcing. Exterior housing is made entirely of high performing chemical and impact resistant thermoplastics to withstand the abuse of industrial environments and harsh chemicals. Featuring auto ground and external, screw pressure plate back wiring on all terminals for fast, easy installation and excellent electrical connection. Oversize silver alloy contacts help ensure long life and better heat dissipation.

Pass & Seymour® Pilot Light Switch, Heavy Duty Specification Grade, 120/277 VAC, 15 A, 1/2 hp, 2 hp Power, 1 Pole, Cam/Spring/Toggle Actuator, Back/Side Wired/Screw Connection, Wall Mounting, 50000 Cycles Operating Cycles, Thermoplastic, Brown, Environmental Conditions: -40 to 115 deg C Operating Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions

MFG #: PS15AC1RPL

EECO #: PSPS15AC1RPL

Brand: Pass & Seymour
UPC #: 785007195804
Attributes
Features
Documents
Product Information
Attributes
Color
Brown
UNSPSC
39122211
Material
Thermoplastic
Connection
Back/Side Wired/Screw
Application
Commercial/Residential, Industrial, Health Care, Education and Institutional Applications
Power Rating
1/2 hp, 2 hp
Voltage Rating
120/277
Actuator
Cam/Spring/Toggle
Mounting
Wall
Environmental Conditions
-40 to 115 deg C Operating Temperature
Type
Heavy Duty Specification Grade
Dimensions
3.3 in H x 1.32 in W x 1.073 in D
Amperage Rating
15
Features
  • 1-piece plated steel strap for corrosion-resistance
  • Heavy duty bumpers for quiet, smooth operation
  • Oversized silver alloy contacts for long life and better heat dissipation
  • Heavy duty, brass alloy, 1-piece contact arm virtually eliminates contact bounce
  • Shallow design for ease of installation
  • Glass reinforced nylon back body for durability and strength
  • Cam control and spring actuator for positive makes and breaks with a minimum of arcing
  • Locking support provides resistance to face and back body separation
  • Side and external screw pressure plate back wire with 14 to 10 AWG copper or copper clad wire
  • Bare insulation
  • Industrial EHD specification grade
  • Pilot lighted switch
  • 1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
  • UL 94-V2 flammability rating
  • Red light when on
