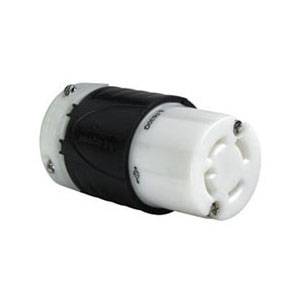

480 VAC 30 A L16-30R, Legrand North America LLC L1630C Turnlok® Locking Device Connector

Short Description

480 VAC, 3-Phase, 30 A, 3-Pole, 4-Wire, 0.225 to 1.15" Cord, L16-30R, Nylon, Grounding, Locking Device Connector

Locking Device Connector; Configuration L16-30R; Voltage Rating 480 Volt AC 3-Phase; Current Rating 30 Amp; Number of Poles 3; Number of Wires 4; Ground Type Grounding; Material Nylon; Cord Size 0.225 to 1.15 Inch; Approval UL 498, CSA, Federal Specification UL WC596; RoHS Compliant; Shell Material Impact and Corrosion Resistant Nylon 6; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial Grade; Flammability Rating UL 94; Applicable Standard NEMA WD-1/WD-6

MFG #: L1630C

EECO #: PSL1630C

UPC #: 785007163018
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121400
Approval
UL 498, CSA, Federal Specification UL WC596
Material
Nylon
Ground Type
Grounding
Current Rating
30 Amp
Voltage Rating
480 Volt AC 3-Phase
Number Of Poles
3
Number of Wires
4
Type
Connector
Cord Size
0.225 to 1.15 Inch
Configuration
L16-30R
Features
  • Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire
  • Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity
  • Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock
  • Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces
  • Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site
  • Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal
  • Visible Stamped NEMA Configuration and Device Rating
  • New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention
  • Integral Flexible Rubber Cord Grommet Conforms to and Seals Around So Cord to Provide Protection from Oils, Water or Chips Entering Wiring Chamber
  • RoHS Compliant
PASSEME11586_1_3
PASSEME12408_H21_U121
PASSEME12551_1_2
Qty Unit price
Ea
1 $72.54

Slqt
1 $72.54

Stpk
1 $72.54

Unit
1 $72.54
