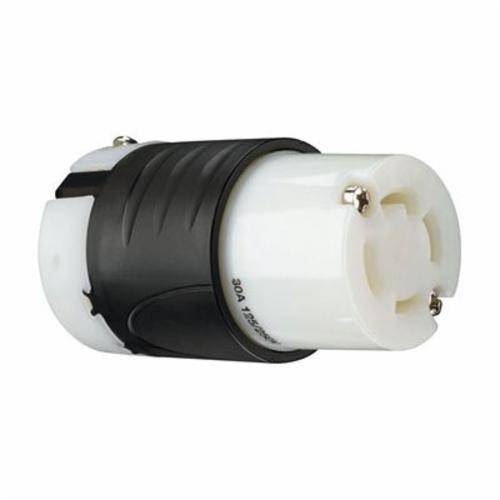

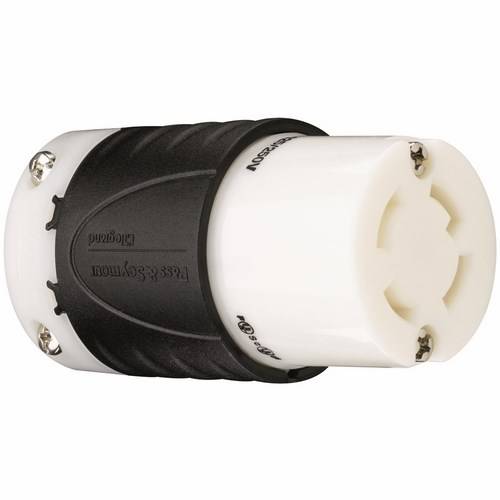

Pass & Seymour® Turnlok® L1430-C Locking Connector, 125/250 VAC, 30 A, 2 Poles, 3 Wires, Black/White

Short Description

Ensure reliable power connections with the Pass & Seymour® Turnlok® L1430-C Locking Connector. Designed for industrial use, this durable locking connector supports 125/250 VAC and 30 A, making it perfect for heavy-duty applications. With a robust design and IP20 enclosure, it’s built to withstand harsh conditions while providing secure and efficient connectivity.Enhanced by AI

Pass & Seymour® Turnlok® Locking Connector, 125/250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA L14-30R, Industrial Grade, IP20 Enclosure, 0.39 to 1.15 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.2 in Dia x 3.33 in L

MFG #: L1430C

EECO #: PSL1430C

Brand: Pass & Seymour
UPC #: 785007143010
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121403
Material
Nylon
Application
Industrial Applications
Terminal Type
Screw
Voltage Rating
125/250
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Grade
Industrial
Dimensions
2.2 in Dia x 3.33 in L
Horsepower
2
Amperage Rating
30
Features
  • Quick-thread assembly screws and cord-grip screws come backed-out and ready-to-wire
  • Industrial strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock
  • Double dovetail design provides superior protection against cord pull-out forces
  • Impact and corrosion resistant durable nylon 6 shell material
  • Rounded back contour reduces snags and hang-ups on the job site
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal
  • Visible stamped NEMA configuration and device rating
  • New design external cord grips provide visible assurance of safe and proper cord retention
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water or chips entering wiring chamber
  • Industrial specification grade locking device
  • 2200 VAC minimum dielectric strength voltage
  • 18 to 10 AWG wire size
