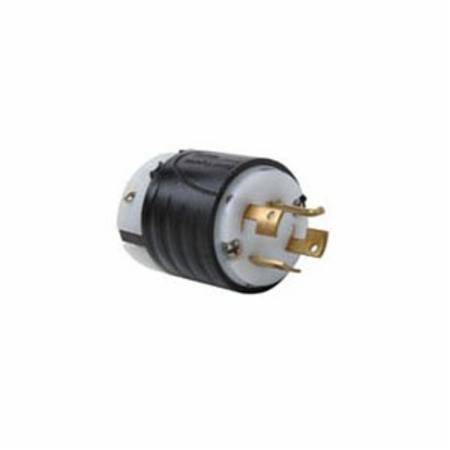

120/208 VAC 20 A Non-NEMA, Legrand North America LLC 7411SS Turnlok® Locking Device Plug

Short Description

120/208 VAC Star, 3-Phase, 20 A, 3-Pole, 4-Wire, 0.225 to 1.15" Cord, Non-NEMA, Black Back, White Front, Grounding, Locking Device Plug

Locking Device Plug; Type Polarized; Configuration Non-NEMA Locking; Voltage Rating 120/208 Volt AC Star 3-Phase; Current Rating 20 Amp; Number of Poles 3; Number of Wires 4; Ground Type Grounding; Color Black (Back), White (Front); Cord Size 0.225 to 1.15 Inch; Approval UL 498, Federal Specification UL WC596; RoHS Compliant; Shell Material Impact and Corrosion Resistant Nylon 6; Enclosure Rating IP20; Application Industrial Grade; Applicable Standard NEMA WD-1/WD-6

MFG #: 7411SS

EECO #: PS7411SS

UPC #: 785007741117
Attributes
Features
Documents
Product Information
Attributes
Color
Black (Back), White (Front)
UNSPSC
39121403
Approval
UL 498, Federal Specification UL WC596
Ground Type
Grounding
Current Rating
20 Amp
Voltage Rating
120/208 Volt AC Star 3-Phase
Number Of Poles
3
Number of Wires
4
Type
Polarized Plug
Cord Size
0.225 to 1.15 Inch
Configuration
Non-NEMA Locking
Features
  • Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire
  • Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity
  • Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock
  • Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces
  • Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site
  • Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal
  • Visible Stamped NEMA Configuration and Device Rating
  • New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention
  • Integral Flexible Rubber Cord Grommet Conforms to and Seals Around So Cord to Provide Protection from Oils, Water or Chips Entering Wiring Chamber
  • RoHS Compliant
PASSEME12408_H27_U118
PASSEME12516_1_2
Qty Unit price
Ea
1 $30.48

Slqt
1 $30.48

Stpk
1 $30.48

Unit
1 $30.48
