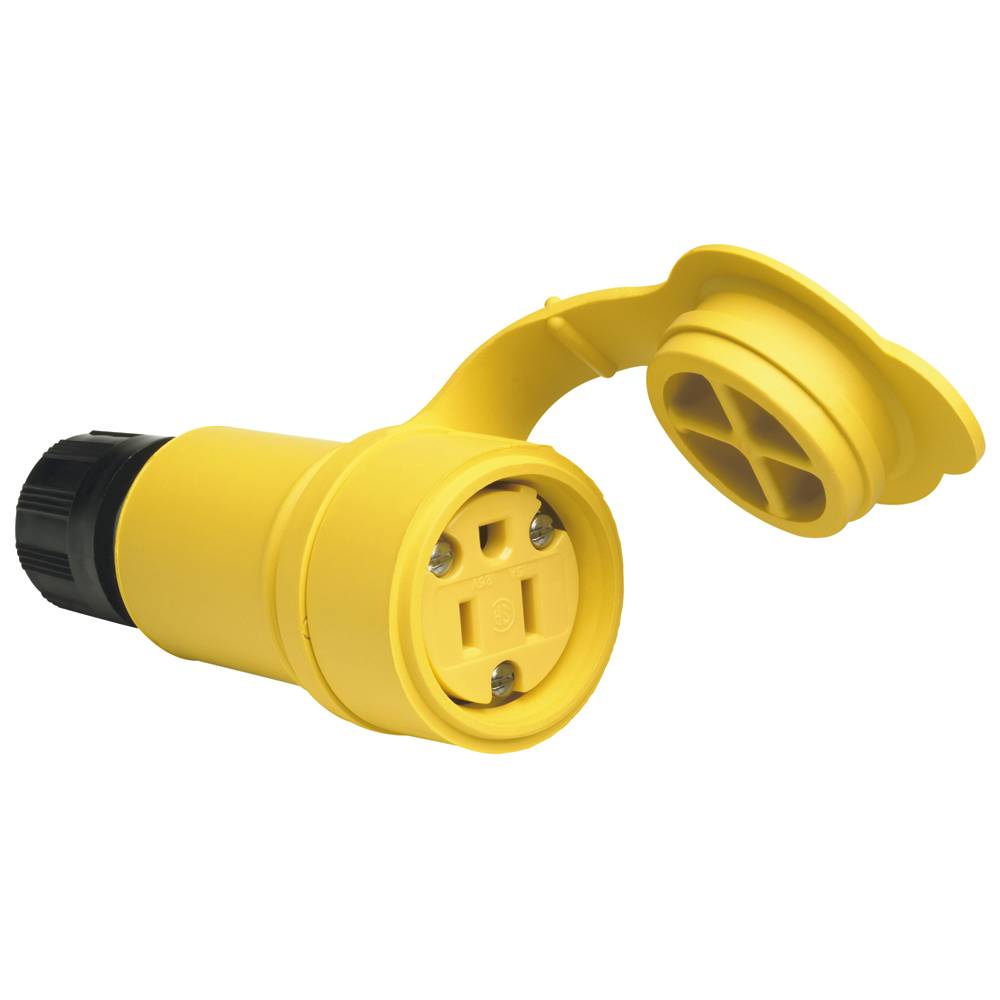

Pass & Seymour® 15W47 Watertight Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Legrand

Pass & Seymour® 15W47 Watertight Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Short Description

Rated watertight for 1500 psi high pressure hose down, Pass & Seymour® plugs and connectors feature multiple seals to ensure protection against the environment. Constructed of a sturdy rubber body, which makes them impact and chemical resistant, they have nickel plated blades and contacts for superior corrosion resistance.

Pass & Seymour® Straight Blade Connector, Watertight, 125 VAC, 15 A, 2 Poles, 3 Wires, 5-15P, NEMA IP67 Enclosure, Rubber, Yellow, 4-3/4 in

MFG #: 15W47

EECO #: PS15W47

Brand: Pass & Seymour
UPC #: 785007114164
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121402
Material
Rubber
Application
Commercial Applications
Voltage Rating
125
Number of Wires
3
Enclosure
NEMA IP67
Type
Watertight
Warranty
1 Year
Dimensions
4-3/4
Amperage Rating
15
Features
  • Rubber body construction stands up to impacts, oil, chemicals, heat and weather
  • Floating blades allow self-alignment with contacts for a firm, even electrical connection
  • Terminal screws backed out, ready to wire, saving time and money
  • Nickel plated blades and contacts for long lasting, superior corrosion resistance
  • Compression type cord grip provides watertight seal and 205 lb pull out strength
  • Multiple ring seals between plug and connector ensures protection from water and contaminants
  • Quick drive assembly screws allow for fast installation to save time and money
