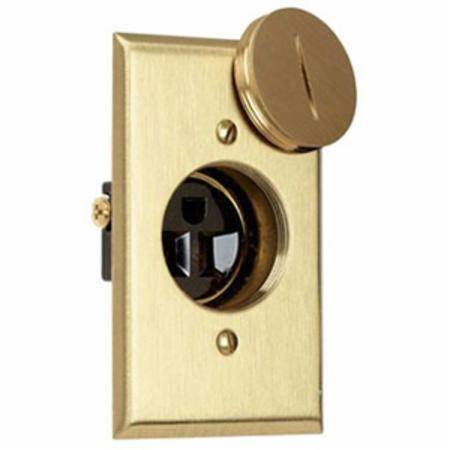

Legrand North America LLC 1542TRDR SLATER® Floor Box Display Receptacle

Short Description

5.75" x 2.75" x 1.825" x 4.5", 120 V, 15 A, Durable Thermoplastic, Single, Floor Box Display Receptacle

Floor Box Display Receptacle; Type Single; Voltage Rating 120 Volt; Current Rating 15 Amp; Configuration NEMA 5-15R; Diameter 5.75 Inch; Material Durable Thermoplastic; Used On Tamper Resistant Floor Box; Approval UL; Overall Dimension 2.75 Inch Width x 1.825 Inch Depth x 4.5 Inch Height; Includes Brass Plate and 1.01 Inch Recessed Plug

MFG #: 1542TRDR

EECO #: PS1542TRDR

UPC #: 785007108767
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121300
Approval
UL
Material
Durable Thermoplastic
Current Rating
15 amp
Diameter
5.75 Inch
Configuration
NEMA 5-15R
Features
  • Dual Mechanical Shutter System to Help Prevent Insertions of Foreign Objects
  • Two Drive Screws Anchor Strap to Back Body and Face Where Abrupt Removal Torque is Greatest
  • 0.032 Inch Thick Brass Triple Wipe Power Contacts for Lasting Retention
  • Corrosion Resistant Plated Steel Strap is Locked in to the Face and Back Body to Resist Pulling Away from the Face/Body Assembly
  • Auto Ground Clip Assures Positive Ground
  • Easily Accessed Break Off Line Contact Connecting Tab for Fast and Easy Split Circuit wiring
  • Backed Out Tri Drive Steel Terminal Screws
  • Side Wire Capability
PASSEME00942_1
PASSEME09623_M17
PASSEMINST00236
Qty Unit price
Ea
1 $38.37

Slqt
1 $38.37

Stpk
1 $38.37

Unit
1 $38.37
