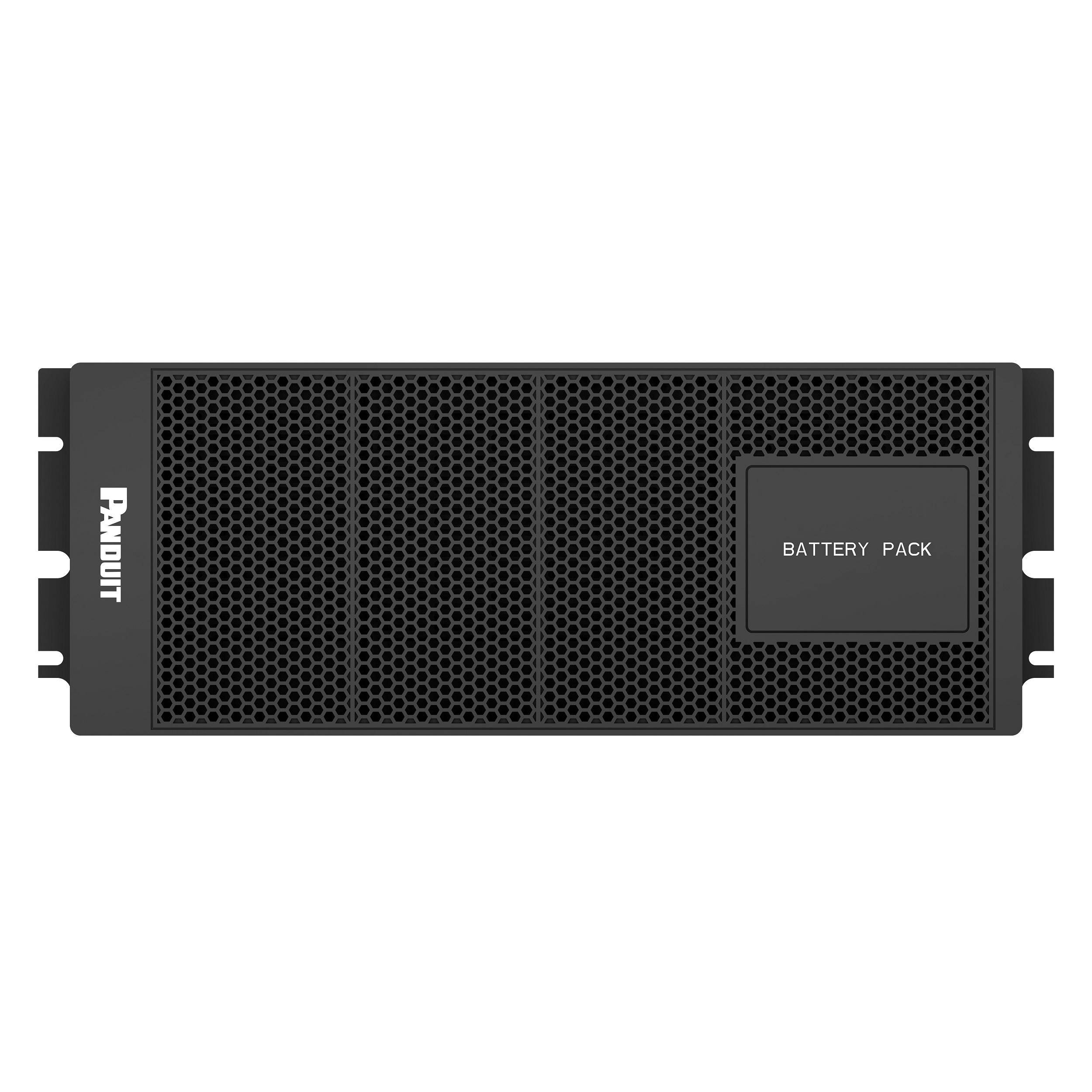

Panduit® UVP480 External Batteries, 480 VDC Power Rating, For Use With 10, 15, 20 kVA 3 Phase UPS
Share Share Print Print
Panduit

Panduit® UVP480 External Batteries, 480 VDC Power Rating, For Use With 10, 15, 20 kVA 3 Phase UPS

Short Description

Enhance your power reliability with the Panduit® UVP480 External Batteries, designed specifically for 10, 15, and 20 kVA 3 Phase UPS systems. With a robust 480 VDC power rating, these batteries ensure optimal performance and efficiency for your critical applications.Enhanced by AI

Panduit®, UVP480, Batteries, External, 480 VDC Power, For Use With: 10, 15, 20 kVA 3 Phase UPS, 131 mm H x 443 mm W x 896 mm D Dimensions
MFG #: UVP480

EECO #: PNUVP480

Brand: Panduit
UPC #: 613056825451
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
26111707
Application
For use with U10N32V U15N32V U20N32V
Power Rating
480
Type
External
Includes
(9AH Batteries) Chassis, Batteries, Rail Kit
Dimensions
131 mm H x 443 mm W x 896 mm D
Suitable For Use With
10, 15, 20 kVA 3 Phase UPS
Features
  • Online double conversion with fully digital control-Provides stable and clean power with less ripple and by filtering noise, automatic voltage regulation (AVR) and surge protection
  • High efficiency-Up to 98.5%, reducing the energy waste and the cost of electricity
  • Energy Savings-High Efficiency on Smart ECO mode for Online Double Conversion models
  • Output unity power factor-Means more active power for customer's load
  • Input power factor -Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
  • Matchable battery packs-Allows to connect maximum four external battery packs, extending the UPS backup time
  • Three-stage battery charging method-Three-stage battery charging method matching the most optimal curve and temperaturecompensated with advanced algorithms prolonging the battery life
  • EPO function (Emergency Power Off)-Allows to quickly and easily shut down the UPS when emergency event occurs
  • Generator compatible-Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation
  • Hot-Swappable battery design-Can perform the replacement of battery cartridge without powering down the UPS
  • Cold start function-Allows to boot up the UPS without mains input but with batteries
  • Intelligent fan speed regulation-Automatic adjustment of fan speed due to the ambient temperature and load percentage
  • Touch-screen colorful LCD-Colorful LCD with cold start button and LED indicators, providing intuitive display
  • Multiple communication interface-RS232/RS485/USB/intelligent slot, realizing communication and monitoring function
  • Comprehensive protection function-Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage and fan fault alarm
  • Parallel functionality-Connect up to 4 units to achieve very high availability of backup power
  • Inverter design-3-Level IGBT for significant advantages of high efficiency, impact resistance and reliability
  • Additional Redundancy-Shared battery group and support dual input to achieve very high availability of backup power
  • Output Options-Supports 3-Phase or single phase output
  • Intelligent Network Card (included with N Models*)-Provides harden security remote access via Ethernet Secure SNMPv3 protocol to monitor and manage the UPS, micro-USB for firmware upgrade and RS-485 for connecting environmental and security sensors, Built-in WiFi and Bluetooth hardware support with future optional firmware upgrade
Panduit_U10S12V_Specification_Sheet
Panduit_U10S12V_User_Manual
Panduit_U15N32V_Full_Engineering_Drawing
Panduit_UVP480_Full_Engineering_Drawing
Panduit_UVC072_Installation_Manual
Panduit_UVP240_User_Manual
Panduit_UVP480_Specification_Sheet
