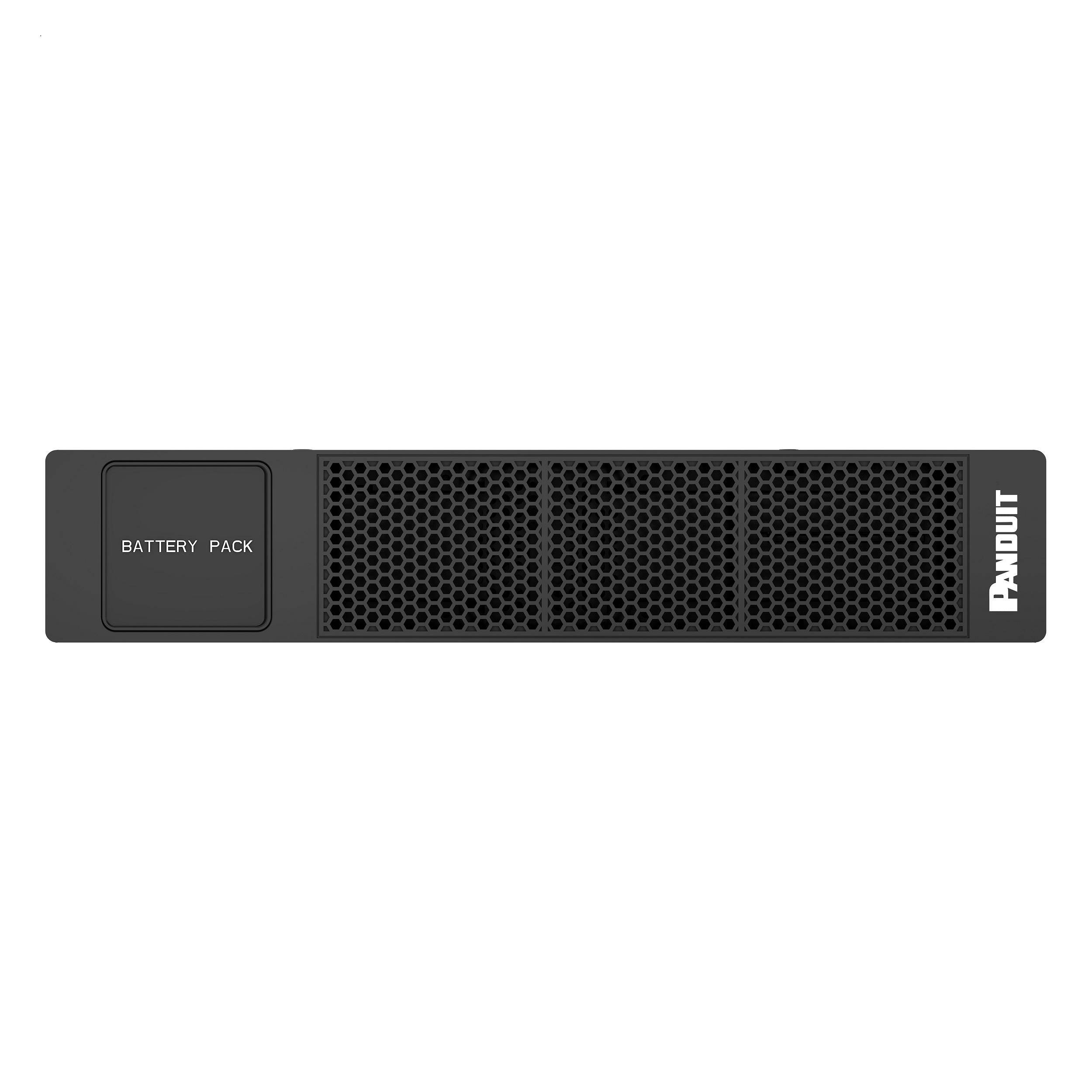

Panduit® UVP048 VRLA Batteries, 2000 W Power Rating, 4.28/13.5 min Backup, For Use With U02S12V/U02S11V/U02N12V/U02N11V, 3 to 5 hrs Charging
Share Share Print Print
Panduit

Panduit® UVP048 VRLA Batteries, 2000 W Power Rating, 4.28/13.5 min Backup, For Use With U02S12V/U02S11V/U02N12V/U02N11V, 3 to 5 hrs Charging

Short Description

Power your systems with confidence using Panduit® UVP048 VRLA Batteries, designed for reliability and optimal performance. With a robust 2000 W power rating and quick charging capabilities, these batteries ensure you have the backup you need when it matters most.Enhanced by AI

Panduit®, UVP048, Batteries, VRLA, 2000 W Power, For Use With: U02S12V/U02S11V/U02N12V/U02N11V, 4.28/13.5 min Backup, Black, 3 to 5 hrs Charging, 2 A Charging Current, 3 to 5 years Shelf Life, 3.42 in H x 17.3 in W x 19.6 in D Dimensions
MFG #: UVP048

EECO #: PNUVP048

Brand: Panduit
UPC #: 613056825611
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
26111707
Application
For use with U02S12V U02S11V U02N12V U02N11V
Power Rating
2000
Type
VRLA
Includes
(9AH Batteries) Chassis, Batteries, Rail Kit
Dimensions
3.42 in H x 17.3 in W x 19.6 in D
Suitable For Use With
U02S12V/U02S11V/U02N12V/U02N11V
Features
  • Rack / Tower convertible-Supports rack / tower installation with rotatable colorful LCD display
  • Online double conversion with fully digital control-Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
  • High efficiency-Up to 96.5%, reducing the energy waste and the cost of electricity
  • Energy Savings-High Efficiency on Smart ECO mode for Online Double Conversion models
  • Output unity power factor-Means more active power for IT equipment load
  • Input power factor-Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
  • Matchable battery packs-Allows to connect maximum four external battery packs, extending the UPS backup running time
  • Intelligent Battery Management-The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
  • EPO function (Emergency Power Off)-Allows to quickly and easy shut down the UPS when emergency event occurs
  • Generator compatible-Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation
  • Hot-Swappable battery design-Can perform the replacement of battery cartridge without powering down the UPS
  • Cold start function-Allows to boot up the UPS without mains input but with batteries
  • Intelligent fan speed regulation-Automatically adjustment of fan speed due to the ambient temperature and load percentage
  • Programmable outlet group-Loads connected to the programmable group will lose power first saving more energy and extending the runtime for critical load
  • Segment colorful LCD-Colorful LCD with four buttons and LED indicators, providing intuitive display
  • Multiple communication interface-RS232 / USB / intelligent slot, realizing communication and monitoring function
  • Comprehensive protection function-Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage, fan fault alarm and RJ45 surge protection
  • Intelligent Network Management Card (included with N Models*)-Provides harden security remote access via Ethernet Secure SNMPv3 protocol to monitor and manage the UPS, micro-USB for firmware upgrade and RS-485 for connecting environmental and security sensors, Built-in WiFi and Bluetooth hardware support with future optional firmware upgrade
  • SmartZone Cloud Ready (included with N Models*)-Support for technology allowing to easily, securely and quickly connect to SmartZone Cloud DCIM with management, monitoring, control and alerting of Power Chain, Environmental, Cooling, Security, Asset and Connectivity Infrastructure Assets
  • SmartZone mPower Management Software-Configure, monitor and manage the UPS (includes graceful equipment shutdown) remotely via RS-232 or USB or Ethernet
