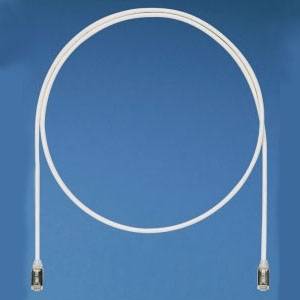

28 AWG Solid, Cat 6A Panduit STP28X1MGR TX6A-28™ Patch Cord, 3.28' L
Share Share Print Print
Panduit

28 AWG Solid, Cat 6A Panduit STP28X1MGR TX6A-28™ Patch Cord, 3.28' L

Short Description

3.28' L, 28 AWG Solid, RJ45 Modular Plug, Green, Copper, Black Boot End, Category 6A, Patch Cord

Patch Cord; Type Category 6A; Conductor Size 28 AWG; Conductor Construction Solid; Connector at One End RJ45 Modular Plug, 8-Position T568B; Connector at Other End RJ45 Modular Plug, 8-Position T568B; End Style Black Boot; Jacket Rating CM/LSZH; Color Green; Length 3.28 Foot; Approval UL 1863; RoHS Compliant; Nominal Cable Outer Diameter 0.19 Inch; Plug Housing Material Polycarbonate; Conductor Material Copper; Temperature Rating 14 to 167 Deg F; Used On 10GBASE-T Ethernet, Data Center I/O Consolidation, Data Center Server Virtualization, Backbone Aggregation, Parallel Processing and High Speed Computing; Applicable Standard IEEE 802.3af/802.3at, 802.3bt, ANSI/TIA-1096-A, IEC 60603-7

MFG #: STP28X1MGR

EECO #: PNSTP28X1MGR

Brand: Panduit
UPC #: 074983003204
Attributes
Features
Documents
Product Information
Attributes
Color
Green
UNSPSC
43223303
Approval
UL 1863
End Style
Black Boot
Conductor Size
28 AWG
Type
Category 6A
Jacket Rating
CM/LSZH
Connector at One End
RJ45 Modular Plug, 8-Position T568B
Conductor Construction
Solid
Connector at Other End
RJ45 Modular Plug, 8-Position T568B
Features
  • Smaller Diameter, Flexible Cable Design - Tight Bend Radius Enables Improved Cable Routing and Management in High Density Application
  • Smaller Cable Diameter Allows about 70% More Cords to be Routed Through Cable Managers and Pathways Compared to Traditional Category 6A Shielded Patch Cord
  • Reduced Cable Diameter Facilitates Improved Air Flow, Cooling, Resulting in Lower Operating Costs than Traditional Category 6A Shielded Patch Cords
  • Category 6A Performance - Meets All Category 6A Requirement (Including Alien Crosstalk), with a Cable Diameter Smaller than Traditional Category 5E, 6 and 6A Shielded Patch Cord
  • 100% Performance Tested for Wire Map, Next and Return Loss - Confidence that Each Patch Cord Delivers Critical Electrical Component-Level Performance
  • Centered De-Embedded Plug Performs in Center of ANSI/TIA-568-C.2 Category 6A Component Range, Ensuring Interoperability and Optimum Performance
  • Integral Pair Manager - Optimizes Performance and Consistency by Reducing Untwist at Plug
  • Patented Tangle-Free Latch - Prevents Snags and Provides Easy Release, Saving Time on Frequent Moves, Adds and Changes
  • Identification Label - Provides Identification of Performance Level, Length and Quality Control Number for Traceability
  • RoHS Compliant
PNSTP28X1MGRINST
Qty Unit price
Ea
1 $12.41

Slqt
1 $12.41

Stpk
1 $124.10

Unit
1 $12.41
