Panduit® SP-SFCS1GR-CEG Ethernet Industrial Riser(CMR) Shielded Cable, 300 V, (1 Pair) Conductors 18/7 AWG Conductor S/FTP Stranded Copper Conductor, 305 m L
Share Share Print Print
Panduit

Panduit® SP-SFCS1GR-CEG Ethernet Industrial Riser(CMR) Shielded Cable, 300 V, (1 Pair) Conductors 18/7 AWG Conductor S/FTP Stranded Copper Conductor, 305 m L

Short Description

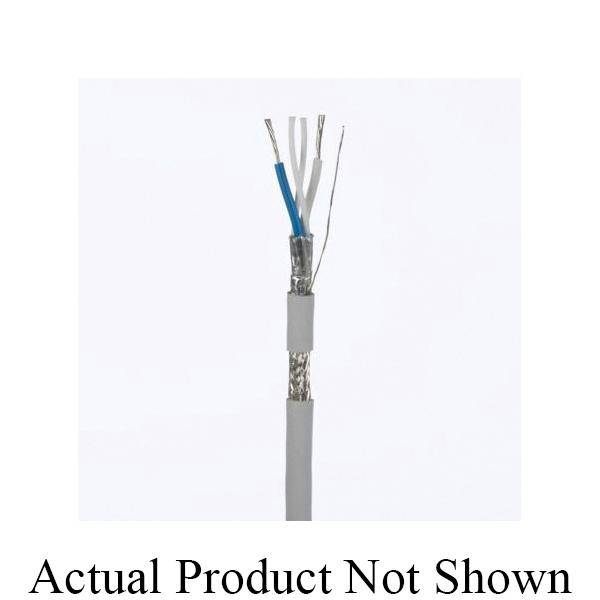

The SPE shielded copper Cable has 18/7 AWG stranded tinned copper conductors with foamed polyethylene (PE) insulation. The conductors are twisted in a pair and include two fillers. The pair is surrounded by an aluminum/polyester foil shield, a tinned copper braid shield and includes a 24/7 AWG stranded tinned copper ground wire. The PVC jacket is oil, UV and abrasion resistant for enhanced chemical resistance, mechanical performance and flame retardant (CM/CMR) for industrial applications.

Panduit®, SP-SFCS1GR-CEG, Cable, Ethernet Industrial Riser(CMR) Shielded, 300 V, 1 Pair Conductors, S/FTP Stranded Copper Conductor, 18/7 AWG Conductor, 6.8 mm OD, 305 m Length, Abrasion, Flame Retardant, Oil and UV Resistance, Polyethylene Insulation, PVC Jacket, Green Jacket, 167 deg F
MFG #: SP-SFCS1GR-CEG

EECO #: PNSPSFCS1GRCEG

Brand: Panduit
UPC #: 613056800717
Attributes
Features
Documents
Product Information
Attributes
Length
305
UNSPSC
26121609
Application
Process Automation Sensors and Valves, Logistics Automation VFDs and Conveyors, Upgrades from Analog to Intelligent Sensors and Building Automation Upgrades to BACnet/IP
Jacket Color
Green
Conductor Size
18/7
Voltage Rating
300
Jacket Material
PVC
Temperature Rating
167
Insulation Material
Polyethylene
Number of Conductors
1-Pair
Type
Ethernet Industrial Riser(CMR) Shielded
Resistance
Abrasion, Flame Retardant, Oil and UV
Conductor Type
S/FTP Stranded Copper
Packaging Type
Reel in a Box
Outside Diameter
6.8
Features
  • Reliability - stranded conductors for standard flex applications and ease of installation, Cable jacket shall be oil, UV and abrasion resistant for enhanced chemical resistance and mechanical performance
  • Fully shielded design - braid and foil construction mitigates both low and high frequency external interference to ensure performance in high EMI/RFI applications
Panduit_ST1407560BK_RoHS
Panduit_SPSFCS1RDCEG_Specification_Sheet
Panduit_SP_SFCS1GR_CEG_Specification_Sheet
