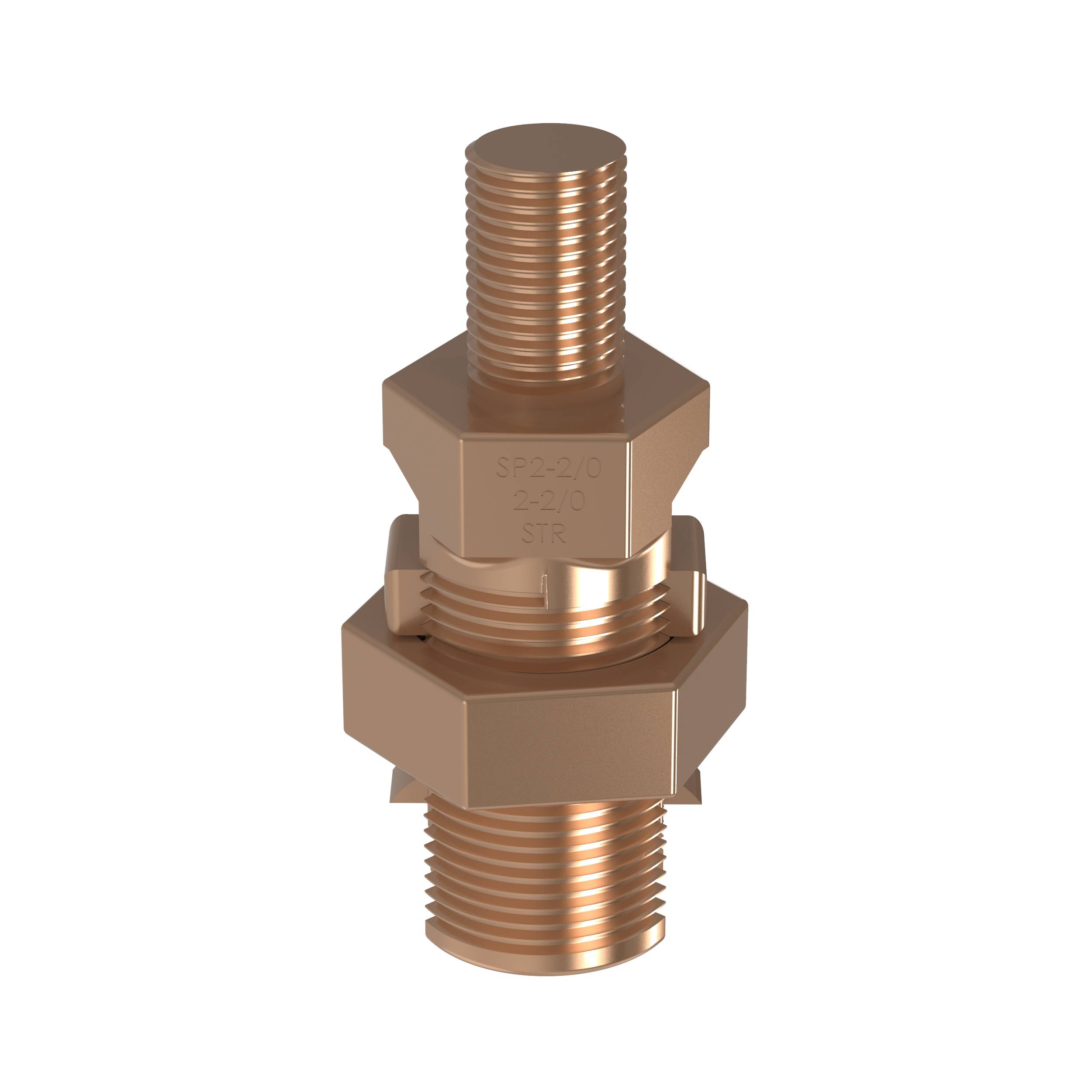

Panduit® StructuredGround™ SP2-2/0-Q Grounding Service Post Connector, 2 Conductors, 2 to 2/0 AWG Conductor, 3/4 in L Stud, Copper

Short Description

The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit® offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround® mechanical connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line of StructuredGround® mechanical connectors, Panduit® delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.

Panduit® StructuredGround™ Grounding Service Post Connector, Series: SP2, 2 Conductors, 2 to 2/0 AWG Conductor, 3/4 in L Stud, Male, For Use with: Steel Structure, Busbar and Transformer, 1.13 in Nut Hex, 0.88 in Body Hex, 500 in-lb Tightening Torque, Copper, Bronze, 1.88 in L
MFG #: SP2-2/0-Q

EECO #: PNSP22/0Q

Brand: Panduit
UPC #: 074983716708
Attributes
Features
Documents
Product Information
Attributes
Color
Bronze
UNSPSC
39121408
Material
Copper
Stud Size
3/4 in L
Application
For grounding two copper code conductors to steel structures, busbars or transformers or for tapping busbar with a hex nut and washer and utility/ground grid applications
Conductor Size
2 to 2/0
Connection Type
Male
Number of Conductors
2
Series
SP2
Dimensions
1.88 in L
Specifications
1.13 in Nut Hex, 0.88 in Body Hex, 500 in-lb Tightening Torque
Suitable For Use With
Steel Structure, Busbar and Transformer
Features
  • Made from high copper content, hard drawn copper rod provides high strength
  • Offered with standard and long stud lengths to accommodate a variety of mounting applications
  • Wide wire range taking capability minimizes inventory requirements
  • True hex design for body and nut hex provides correct fit with socket, box or open-end wrenches resulting in proper torquing of electrical connection
  • Pressure bar provides secure connection on a full range of conductor combinations used with each connector providing premium wire pull-out strength
  • UL listed for grounding and bonding and suitable for direct burial in earth or concrete
  • Satisfies grounding specification requirements for safety and reliability
  • Creates optimum conductivity resulting in reliable, high quality connection
  • Allows consolidation to one supplier, lowering procurement cost
  • Provides worldwide product availability and expertise for consistent, rapid deployment
  • Minimizes inventory requirements, saves cost
  • Saves cost on special tooling
