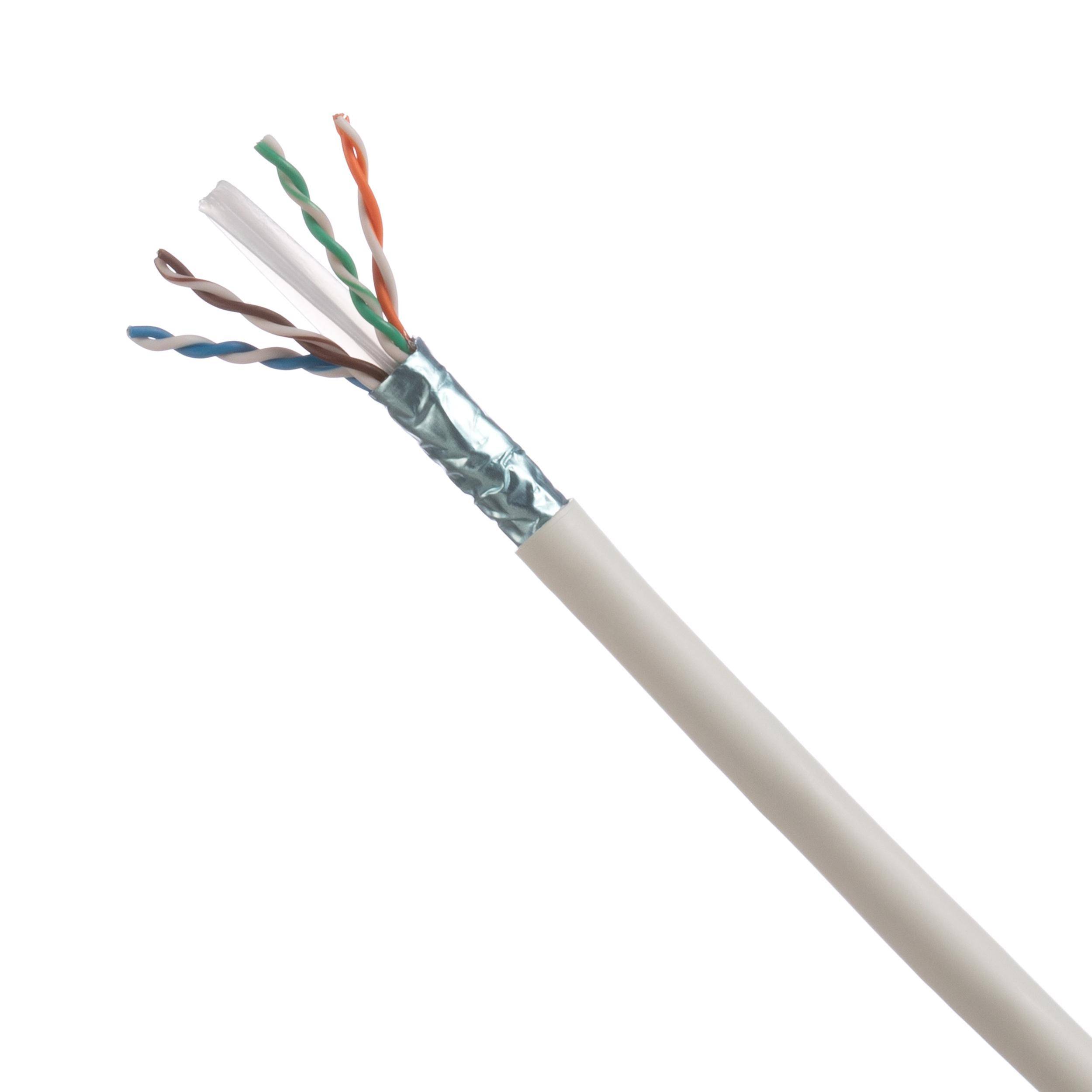

Panduit® PanNet™ TX6A™ 10Gig™ PFP6X04IG-UG Cat 6a CMP Copper Cable, Reel Packaging, 80 VAC, (4 Pairs) 23 AWG F/UTP Shielded Bare Solid Copper Conductor, 1000 ft L

Short Description

Cat 6A cable shall be constructed of 23 AWG copper conductors with PE CM, CMR or LSZH insulation. The copper conductors shall be twisted in pairs and separated by an integrated pair separator. All four pairs shall be surrounded by an overall metallic foil shield within a low smoke zero halogen jacket. The TX6A™ 10Gig™ Shielded Copper Cable must be installed as part of a complete TX6A™ 10Gig™ Shielded Copper Cabling System to achieve 10GBASE-T certified performance.

Panduit® PanNet™ TX6A™ 10Gig™ Copper Cable, Cat 6a CMP, Reel Packaging, 80 VAC, 4 Pairs Conductors, F/UTP Shielded Bare Solid Copper Conductor, 23 AWG Conductor, 0.296 in OD, 1000 ft Length, 8.9 Ohm Resistance, Polyethylene Insulation, PVC Jacket, International Gray Jacket, -4 to 167 deg F
MFG #: PFP6X04IG-UG

EECO #: PNPFP6X04IGUG

Brand: Panduit
UPC #: 074983950706
Attributes
Features
Documents
Product Information
Attributes
Length
1000
UNSPSC
26121609
Application
10GBASE-T Ethernet, Data Center and Virtual Business Management Applications
Jacket Color
International Gray
Conductor Size
23
Voltage Rating
80
Jacket Material
PVC
Temperature Rating
-4 to 167
Insulation Material
Polyethylene
Number of Conductors
4 Pairs
Type
Cat 6a CMP
Resistance
8.9
Conductor Type
F/UTP Shielded Bare Solid Copper
Packaging Type
Reel
Outside Diameter
0.296
Features
  • Descending length cable marking
