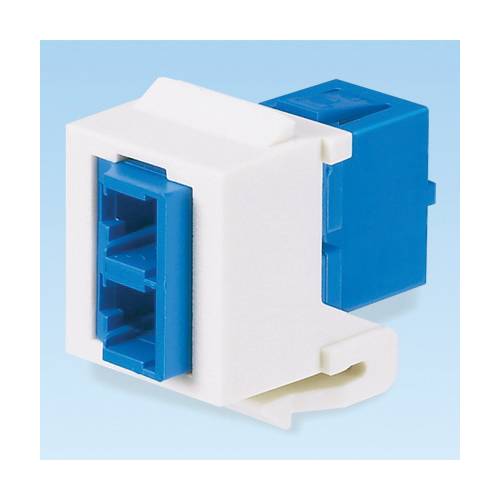

Panduit® Netkey® NKDLCMZIW Fiber Optic Adapter Module With Zirconia Ceramic Split Sleeve, LC Duplex Connector, 1 Port, Panel Mount, OM1/OM2/OM3/OM4/OS2 Singlemode Fiber
Panduit® Netkey® NKDLCMZIW Fiber Optic Adapter Module With Zirconia Ceramic Split Sleeve, LC Duplex Connector, 1 Port, Panel Mount, OM1/OM2/OM3/OM4/OS2 Singlemode Fiber
Share Share Print Print
Panduit

Panduit® Netkey® NKDLCMZIW Fiber Optic Adapter Module With Zirconia Ceramic Split Sleeve, LC Duplex Connector, 1 Port, Panel Mount, OM1/OM2/OM3/OM4/OS2 Singlemode Fiber

Short Description

LC, SC and ST fiber optic adapters have integrated panel retention clips and are TIA/EIA-604 compliant or compatible. Each simplex adapter will connect one connector pair in one module space and each duplex adapter will connect two LC connector pairs in one module space. LC fiber optic adapters and adapter modules include phosphor bronze split sleeves for OM1 or OM2 multimode applications or zirconia ceramic split sleeves for OM3 multimode or single mode applications.

Panduit® Netkey® Fiber Optic Adapter Module, LC Duplex Connector, 1 Port, Panel Mount, OM1/OM2/OM3/OM4/OS2 Singlemode Fiber, For Use With: Keystone Telecommunication Room Product and Work Area Outlet, Zirconia Ceramic, Office White
MFG #: NKDLCMZIW

EECO #: PNNKDLCMZIW

Brand: Panduit
UPC #: 074983656967
Attributes
Features
Documents
Product Information
Attributes
Color
Office White
UNSPSC
43223323
Material
Zirconia Ceramic
Application
For LANs, public networks and fiber to the desk applications
Mounting Type
Panel
Connector Type
LC Duplex
Number of Ports
1
Fiber Type
OM1/OM2/OM3/OM4/OS2 Singlemode
Suitable For Use With
Keystone Telecommunication Room Product and Work Area Outlet
Features
  • Improved modularity and higher density usage
  • Accept FOCIS-10 junior LC connectors at the inside end for behind the wall applications
  • System flexibility, modules are interchangeable with keystone outlets, boxes and patch panels
  • Allows color coding for network segregation
  • Provides an adapter split sleeve material option to fit specific network requirements
IDW_DOCUMENT_2c7c9600353715dd838b5f0881a0ddb66ff3fa9c298b263080dc018dfa72962e
IDW_DOCUMENT_37eca8f80ad5875312ee24c2b11d706e1c6fb81edda295607c34cef9194aa505
IDW_DOCUMENT_49d084d38ebd73a3542727a1d9bd2cd2ad11782c4e7980fe3dedd1e9025d06f9
Panduit_NKDLCMZIW_Full_Engineering_Drawing
