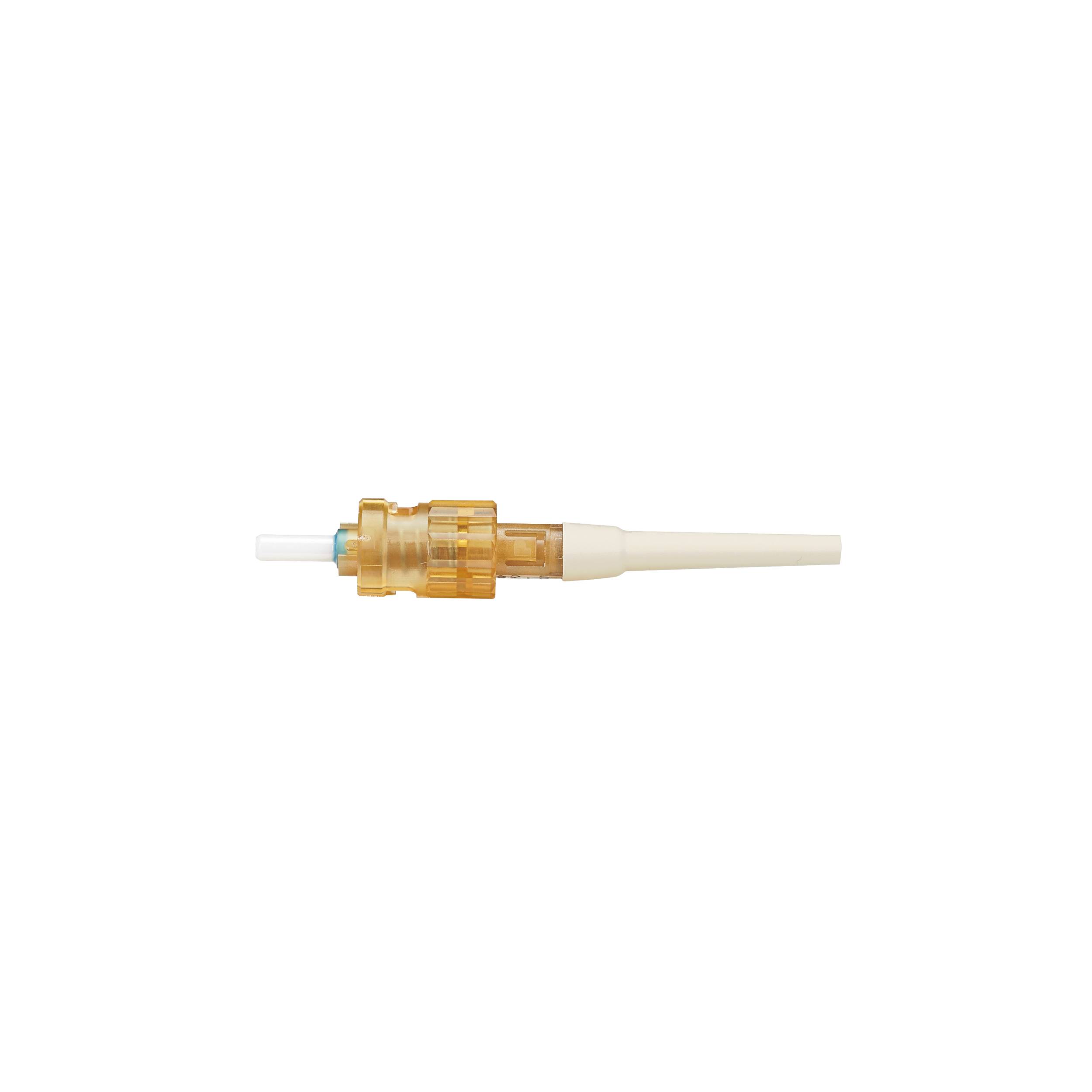

Panduit® OptiCam® FST2MC6EI Fiber Optic Connector, ST2 Simplex Connector, 62.5/125 um OM1 Multi-Mode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule
Share Share Print Print
Panduit

Panduit® OptiCam® FST2MC6EI Fiber Optic Connector, ST2 Simplex Connector, 62.5/125 um OM1 Multi-Mode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule

Short Description

Experience superior connectivity with the Panduit® OptiCam® FST2MC6EI Fiber Optic Connector. Designed for 62.5/125 um OM1 Multi-Mode Fiber, this ST2 Simplex Connector features a pre-polished zirconia ferrule for optimal performance and reliability.Enhanced by AI

Panduit® OptiCam® Fiber Optic Connector, ST2 Simplex Connector, 62.5/125 um OM1 Multi-Mode Fiber, 900 um Tight Buffered Fiber Cable, Pre-Polished Zirconia Ferrule, Ceramic, Electric Ivory
MFG #: FST2MC6EI

EECO #: PNFST2MC6EI

Brand: Panduit
UPC #: 613056259287
Attributes
Features
Documents
Product Information
Attributes
Color
Electric Ivory
UNSPSC
43223310
Material
Ceramic
Application
For OptiCam® OCTT2 fiber termination tool
Connector Type
ST2 Simplex
Fiber Type
62.5/125 um OM1 Multi-Mode
Features
  • Factory pre-polished fiber stub end face eliminates inconsistent and time consuming field polishing to deliver required optical performance
  • Dual cam design with fiber and buffer clamps secures both the fiber and the buffer during the camming step to facilitate consistent termination results
  • Translucent inner housing assembly facilitates inspection of the fiber termination quality, results in rapid installations, improved termination yields and lower installed costs
  • Non-optical disconnect design maintains data transmission under tensile loads
  • Mechanical cable retention consistently provides higher than industry standard cable retention, requires no adhesive, speeding installations
  • Reduces termination time (less than half the time of field polish connectors) and the number of installations tools required
  • Field termination can be done in about two minutes using the OptiCam® 2 termination tool
