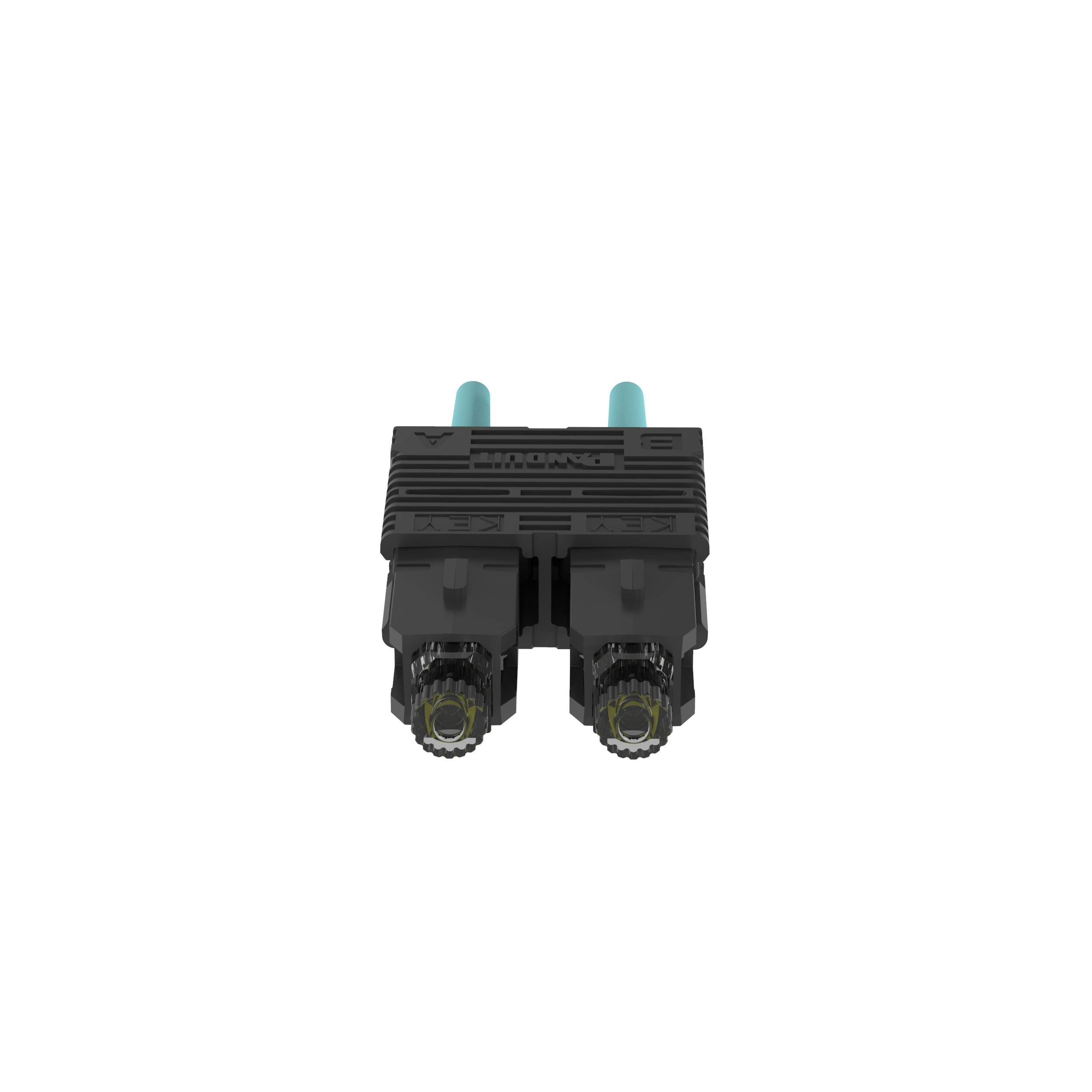

Panduit® OptiCam® FSC2DMCXAQ Fiber Optic Connector, SC2 Duplex Connector, 50/125 um OM3/OM4 Multi-Mode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule
Share Share Print Print
Panduit

Panduit® OptiCam® FSC2DMCXAQ Fiber Optic Connector, SC2 Duplex Connector, 50/125 um OM3/OM4 Multi-Mode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule

Short Description

Experience superior connectivity with the Panduit® OptiCam® FSC2DMCXAQ Fiber Optic Connector. This SC2 Duplex Connector is designed for 50/125 um OM3/OM4 Multi-Mode Fiber, ensuring optimal performance and reliability. Featuring a pre-polished zirconia ferrule and a durable ceramic construction, this connector is perfect for your tight buffered fiber needs.Enhanced by AI

Panduit® OptiCam® Fiber Optic Connector, SC2 Duplex Connector, 50/125 um OM3/OM4 Multi-Mode Fiber, 900 um Tight Buffered Fiber Cable, Pre-Polished Zirconia Ferrule, Ceramic, Aqua
MFG #: FSC2DMCXAQ

EECO #: PNFSC2DMCXAQ

Brand: Panduit
UPC #: 613056255463
Attributes
Features
Documents
Product Information
Attributes
Color
Aqua
UNSPSC
43223310
Material
Ceramic
Application
For use with OptiCam® OCTT2 fiber termination tool
Connector Type
SC2 Duplex
Fiber Type
50/125 um OM3/OM4 Multi-Mode
Features
  • Factory pre-polished fiber stub end face eliminates inconsistent and time consuming field polishing to deliver required optical performance
  • Dual cam design with fiber and buffer clamps secures both the fiber and the buffer during the camming step to facilitate consistent termination results
  • Allows up to two re-terminations to achieve optimum termination results, reduces the number of rejected connectors and terminations to provide yield rates approaching 100% for lower installed costs
  • Translucent inner housing assembly facilitates inspection of the fiber termination quality, results in rapid installations, improved termination yields and lower installed costs
  • Mechanical cable retention consistently provides higher than industry standard cable retention, requires no adhesive, speeding installation
  • Reduces termination time (less than half the time of field polish connectors) and the number of installation tools required
  • Non-optical disconnect design maintains data transmission under tensile loads
  • Field termination can be done in about two minutes using the OptiCam® 2 termination tool
