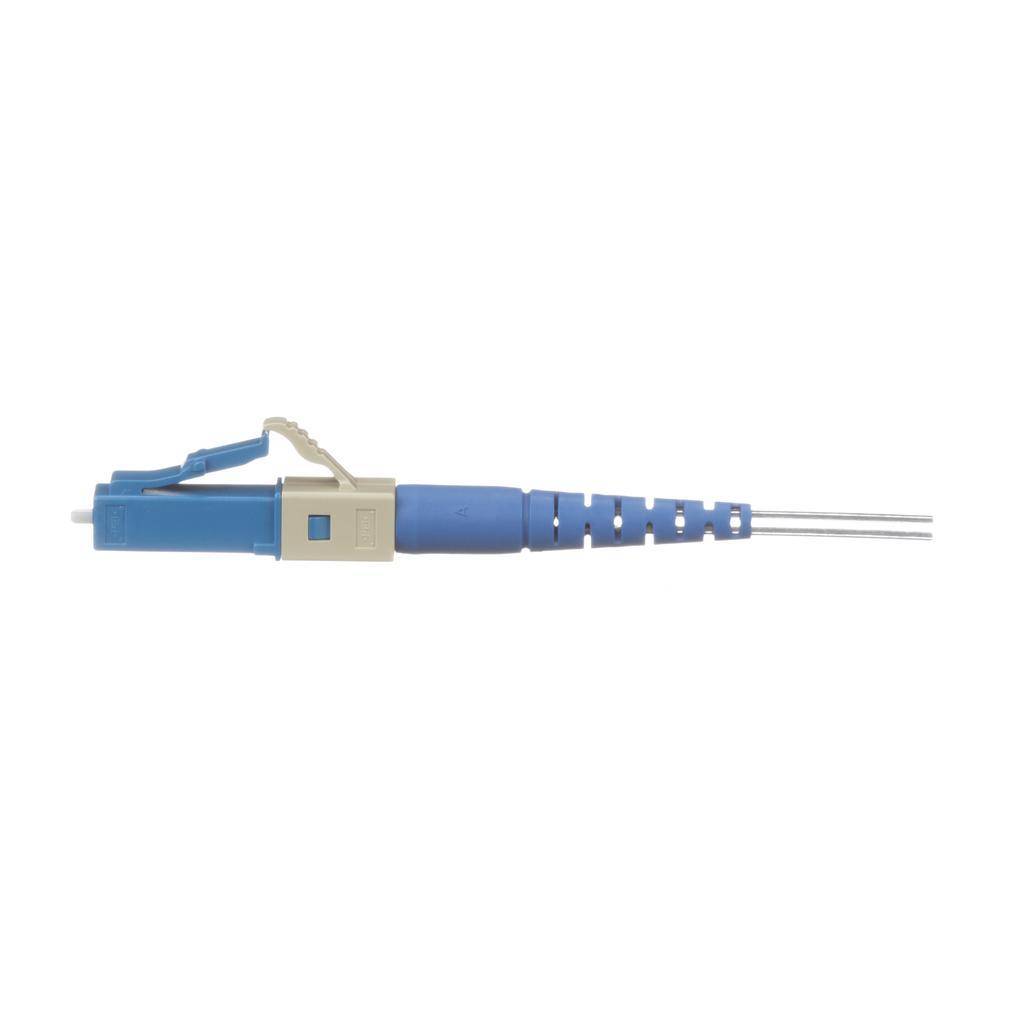

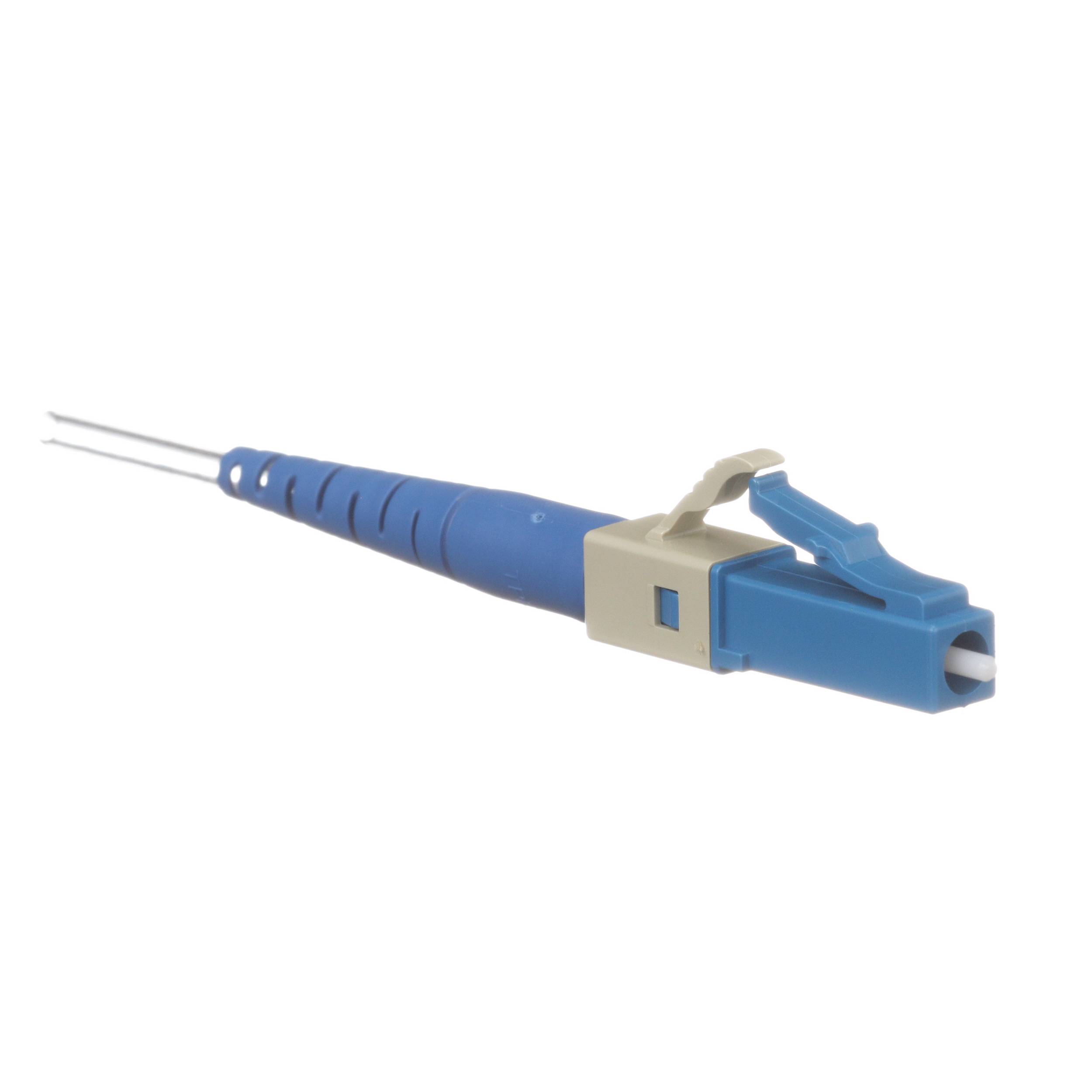

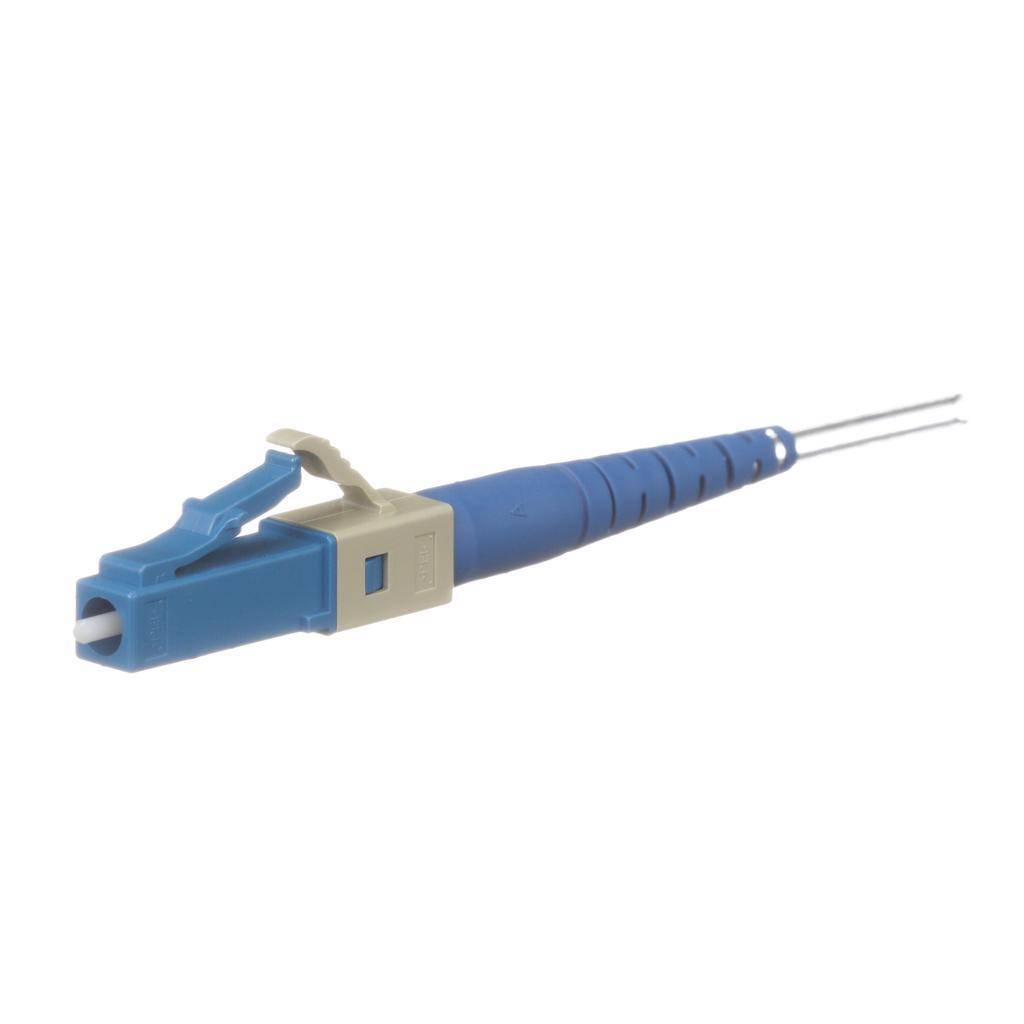

Panduit® FLCS2/9SOCU9BU Fusion Splice-On Fiber Optic Connector, LC Simplex Connector, OS1/OS2 9/125 um Fiber, 250 um Coated Fiber/900 um Tight Buffered Fiber, Zirconia Ceramic Ferrule

Short Description

LC and SC form factor fusion-splice connectors shall be TIA/EIA-604 FOCIS-3 (for SC) and FOCIS-10 compatible (for LC) and include a pre-polished fiber which eliminates the need for field polishing and adhesives. The connectors shall be composed of a ferrule assembly with integral fiber, a front housing and a rear assembly, plus additional components as necessary by connector type (including angled physical contact polish). The connectors shall exceed TIA/EIA-568-D.3 performance requirements for IL and RL and have a functional temperature range from -40 to 75 deg C. These splice-on connectors shall be compatible with Sumitomo brand splice units.

Panduit®, FLCS2/9SOCU9BU, Fiber Optic Connector, Fusion Splice-On, LC Simplex Connector, OS1/OS2 9/125 um Fiber, 250 um Coated Fiber/900 um Tight Buffered Fiber Cable, Zirconia Ceramic Ferrule, Blue
MFG #: FLCS2/9SOCU9BU

EECO #: PNFLCS2/9SOCU9BU

Brand: Panduit
UPC #: 613056573994
Attributes
Features
Documents
Product Information
Attributes
Color
Blue
UNSPSC
43223301
Application
For initial installation of fiber links, MAC work or repairs to existing links to minimize downtime
Connector Type
LC Simplex
Type
Fusion Splice-On
Warranty
1 year
Fiber Type
OS1/OS2 9/125 um
Features
  • Quick installation - the LC and SC splice-on connectors for 250 um and 900 um cable can be terminated in under two minutes per connector
  • Reliable performance - superior components mean better performing links with less down time
  • Superior function - factory pre-polished end-faces and no index-matching gel enable installation almost anywhere
  • The LC and SC splice-on connectors for 250 um and 900 um cable can be terminated in under two min per connector
  • Superior components mean better performing links with less down time
  • Factory pre-polished end-faces and no index-matching gel enable installation almost anywhere
IDW_DOCUMENT_432a6b5744021804440ead6781735c0cfaa616a182ca805b9ffdf4f26d93c1b1
IDW_DOCUMENT_a715dae5ca0b4907b6b6df985134071764ca2335b0627ba090dbded745cbce67
IDW_DOCUMENT_cf946e734ed11f69b3b18ef0021df29f19c62b46b19c1bb292bfe6e915dff1eb
Panduit_FLCS2_9SOCU9BU_Full_Engineering_Drawing
Panduit_FLCS2_9SOCU9BU_Installation_Manual
Panduit_FLCS2_9SOCU9BU_Specification_Sheet
Panduit_FLCS2_9SOCU9BU_Technical_Bulletin
