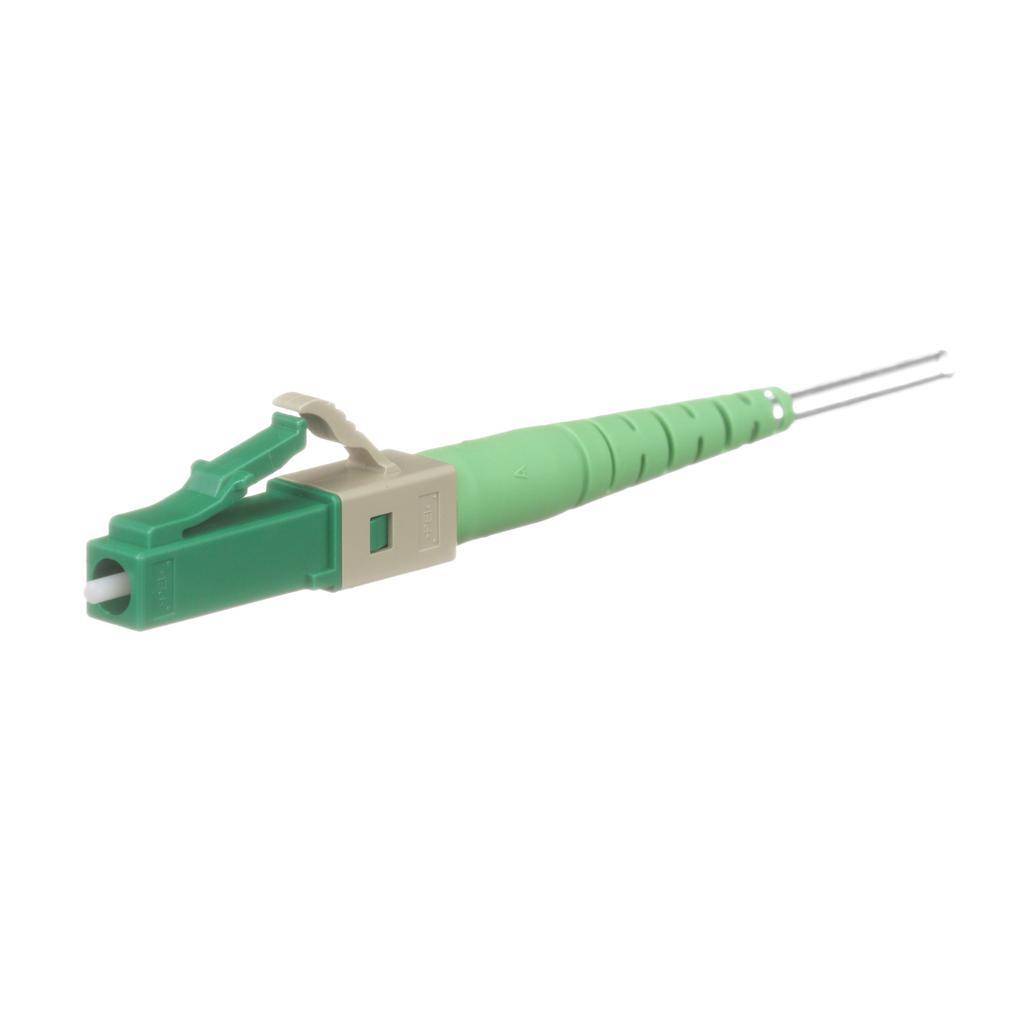

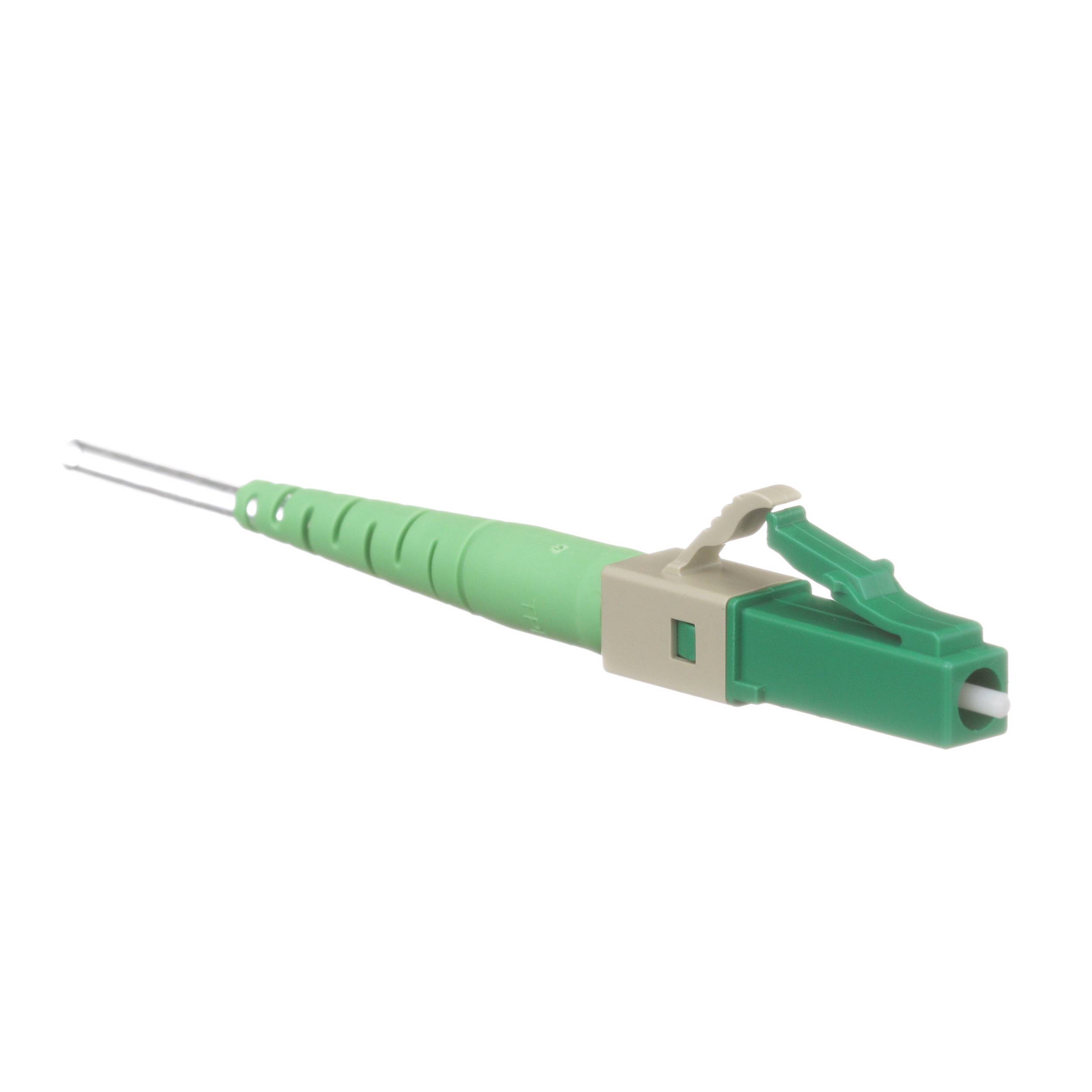

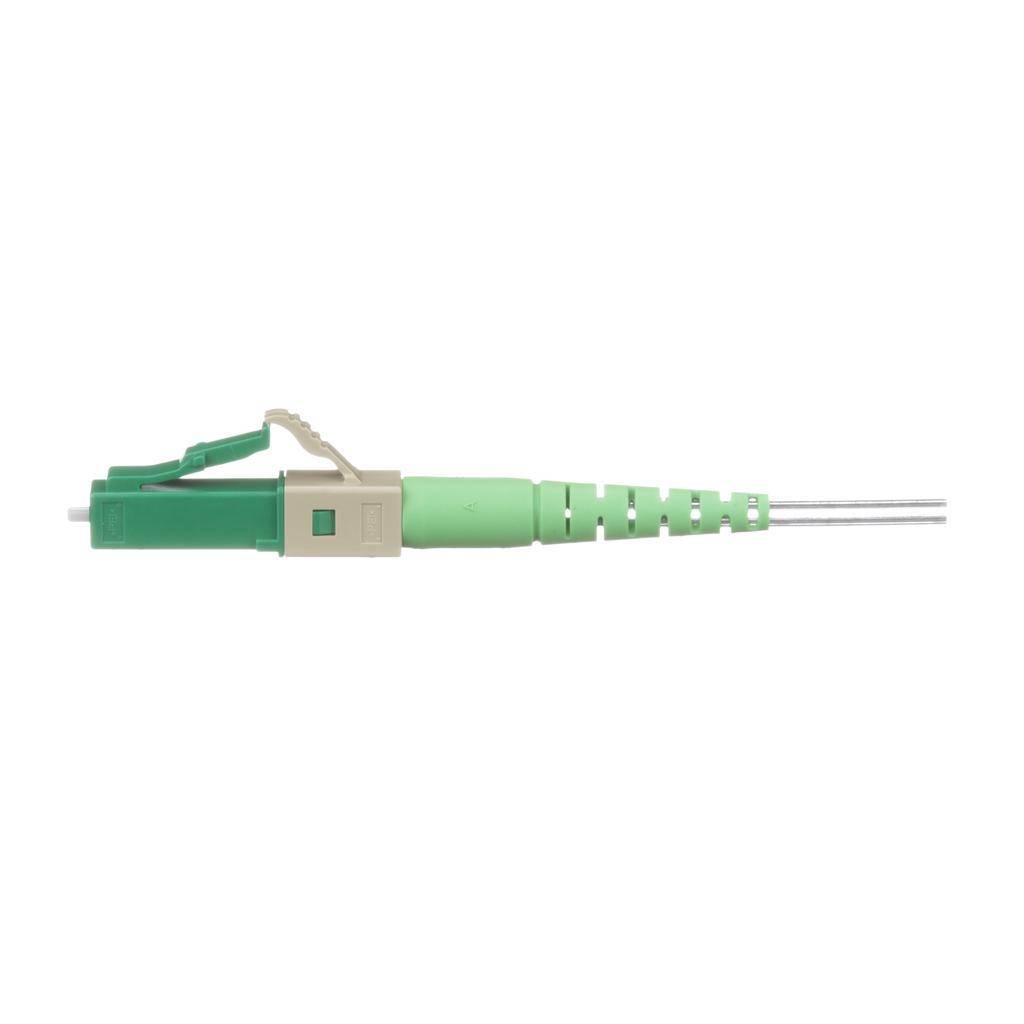

Panduit® FLCS2/9SOCA9AG Fusion Splice-On Fiber Optic Connector, LC Simplex Connector, OS1/OS2 9/125 um Fiber, 250 um Coated Fiber/900 um Tight Buffered Fiber, Zirconia Ceramic Ferrule

Short Description

LC and SC form factor fusion-splice connectors shall be TIA/EIA-604 FOCIS-3 (for SC) and FOCIS-10 compatible (for LC) and include a pre-polished fiber which eliminates the need for field polishing and adhesives. The connectors shall be composed of a ferrule assembly with integral fiber, a front housing and a rear assembly, plus additional components as necessary by connector type (including angled physical contact polish). The connectors shall exceed TIA/EIA-568-D.3 performance requirements for IL and RL and have a functional temperature range from -40 to 75 deg C. These splice-on connectors shall be compatible with Sumitomo brand splice units.

Panduit®, FLCS2/9SOCA9AG, Fiber Optic Connector, Fusion Splice-On, LC Simplex Connector, OS1/OS2 9/125 um Fiber, 250 um Coated Fiber/900 um Tight Buffered Fiber Cable, Zirconia Ceramic Ferrule, Green
MFG #: FLCS2/9SOCA9AG

EECO #: PNFLCS2/9SOCA9AG

Brand: Panduit
UPC #: 613056574007
Attributes
Features
Documents
Product Information
Attributes
Color
Green
UNSPSC
43223301
Application
For initial installation of fiber links, MAC work or repairs to existing links to minimize downtime
Connector Type
LC Simplex
Type
Fusion Splice-On
Warranty
1 year
Fiber Type
OS1/OS2 9/125 um
Features
  • Quick installation - the LC and SC splice-on connectors for 250 um and 900 um cable can be terminated in under two minutes per connector
  • Reliable performance - superior components mean better performing links with less down time
  • Superior function - factory pre-polished end-faces and no index-matching gel enable installation almost anywhere
  • The LC and SC splice-on connectors for 250 um and 900 um cable can be terminated in under two min per connector
  • Superior components mean better performing links with less down time
  • Factory pre-polished end-faces and no index-matching gel enable installation almost anywhere
