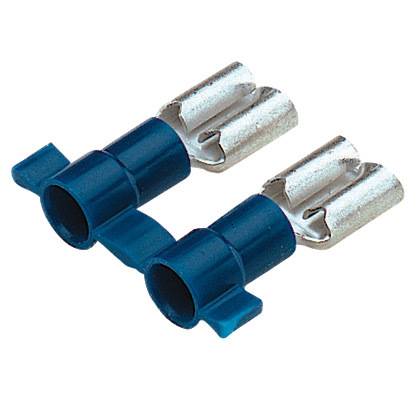

Panduit® Reel Smart™ DV14-206B-3K Type DV-B Reel Vibration-Resistant Female Disconnect, 16 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Barrel Insulated
Share Share Print Print
Panduit

Panduit® Reel Smart™ DV14-206B-3K Type DV-B Reel Vibration-Resistant Female Disconnect, 16 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Barrel Insulated

Short Description

Enhance your electrical connections with the Panduit® Reel Smart™ DV14-206B-3K! This vibration-resistant female disconnect features a durable brass construction and is designed for reliable performance with 16 AWG conductors. Ideal for demanding applications, it ensures secure and efficient connectivity.Enhanced by AI

Panduit® Reel Smart™ Female Disconnect, Type DV-B Reel Vibration-Resistant, Stranded Conductor, 16 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 V, Specifications: 0.17 in Dia Vinyl Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip, 221 deg F, Brass, Blue, Tin Plated, 0.77 in L x 0.25 in W x 0.11 in H Dimensions, Insulated: Barrel Insulated

MFG #: DV14-206B-3K

EECO #: PNDV14206B3K

Brand: Panduit
UPC #: 074983821198
Attributes
Features
Documents
Product Information
Attributes
Color
Blue
Finish
Tin Plated
UNSPSC
39121409
Material
Brass
Tab Size
0.187 to 0.205 in W x 0.02 in THK
Application
For making quick and repeatable interconnections
Barrel Type
Butted Seam/Funnel Entry
Terminal Type
Crimp
Conductor Size
16
Voltage Rating
600
Temperature Rating
221
Type
Type DV-B Reel Vibration-Resistant
Warranty
1 year Limited
Dimensions
0.77 in L x 0.25 in W x 0.11 in H
Conductor Type
Stranded
Specifications
0.17 in Dia Vinyl Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip
Features
  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Fully insulated design provides protection from electrical shorts
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
