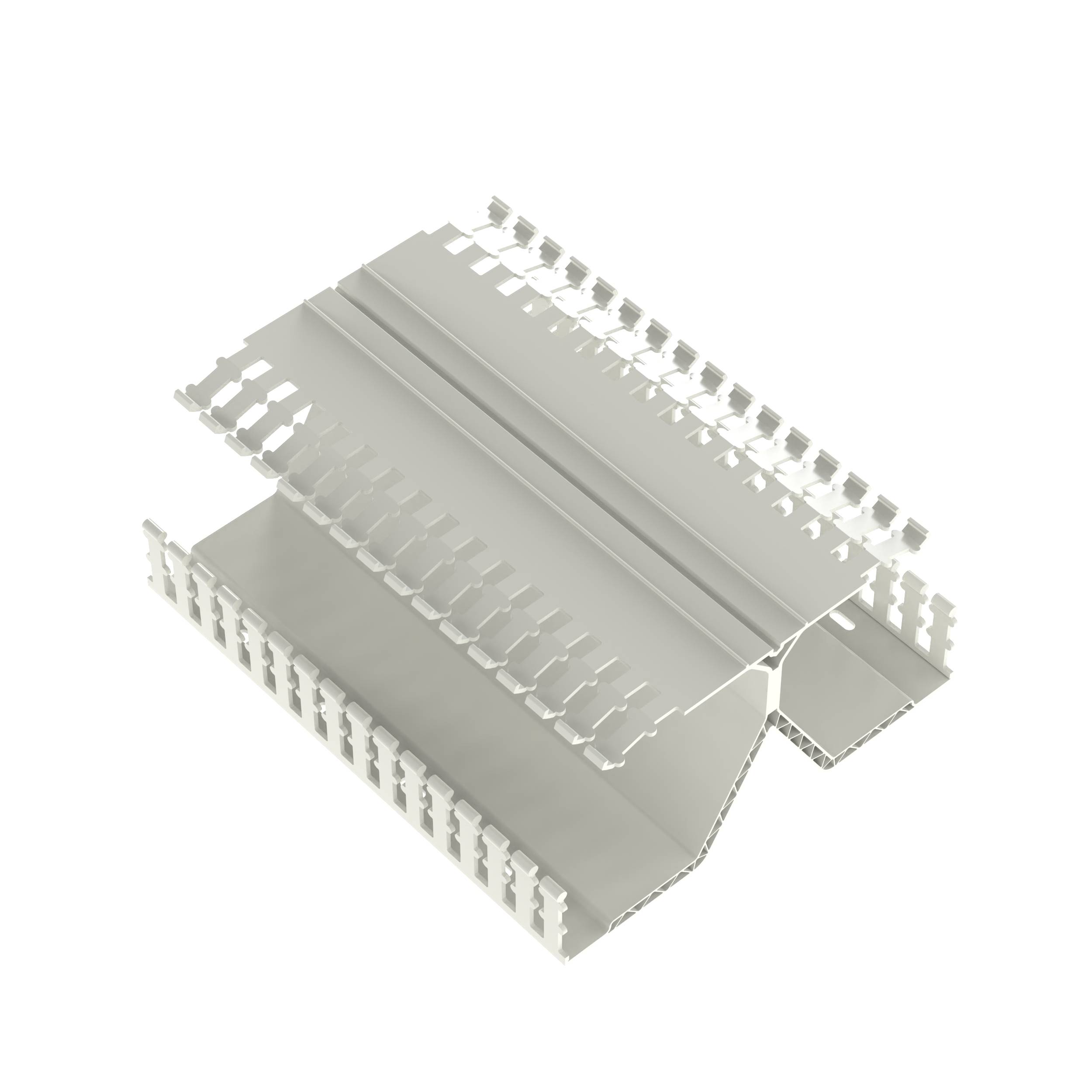

Panduit® Panduct® PanelMax™ DRD44WH6 DRD Wiring Duct, 0.31 in Slotted Slot, 8.23 in W x 4.12 in D, PVC
Share Share Print Print
Panduit

Panduit® Panduct® PanelMax™ DRD44WH6 DRD Wiring Duct, 0.31 in Slotted Slot, 8.23 in W x 4.12 in D, PVC

Short Description

PanelMax™ DIN-rail wiring duct is an innovative wire management solution that maximizes space utilization within industrial enclosures for flexibility in panel layout and reduced material and installation costs. The unique design raises components from the panel surface for easier access and faster terminations. DIN-rail wiring duct is compatible with common DIN-rail and DIN mount components to satisfy a wide range of applications.

Panduit® Panduct® PanelMax™ Wiring Duct, Series: DRD, 8.23 in Width, 4.12 in Depth, 6 ft Length, Slotted Slot, 0.31 in Slot, DIN Rail/Hole Mounting, Yes Adhesive Backed, PVC, White
MFG #: DRD44WH6

EECO #: PNDRD44WH6

Brand: Panduit
UPC #: 074983117116
Attributes
Features
Documents
Product Information
Attributes
Color
White
Length
6
UNSPSC
39131712
Material
PVC
Application
Creates Valuable Panel Space Savings, Providing Easier Installation and Maintenance and Improving Reliability
Mounting Type
DIN Rail/Hole
Depth
4.12
Width
8.23
Series
DRD
Includes
Base, Covers and DIN Rail Fasteners
Slot Size
0.31
Features
  • Space saving design positions DIN rail and components off the panel directly above an integrated wire management channel for up to a 30% smaller footprint for duct and components
  • DIN rail and DIN component compatible with standard 35 mm or 15 mm rails and many DIN-rail mount components for design flexibility
  • Integrated DIN rail fastening slot allows the DIN rail to mount directly to product with plastic thread cutting screws for up to 40% faster duct and rail installation and reduced labor costs
  • Hinged and flexible cover ensures panel integrity, safety and aesthetics
  • Platform slots (horizontal) manage wire from channel mounted components, outer sidewall slots (vertical) manage wire from adjacent panel mounted components
  • Channel pass through slots allows wires to transition internally between channels to ease wire connections to either side of components mounted on the same rail, minimizing wire length and reducing material cost
  • Unique finger and slot progression for optimal wire management and aesthetics
