6.25" x 2.15" x 6' Panduit DRD22WH6 Panduct®, PanelMax™ Wiring Duct, White

Name: 6.25" x 2.15" x 6' Panduit DRD22WH6 Panduct®, PanelMax™ Wiring Duct, White
Brand: Panduit
SKU: PNDRD22WH6
Price: 13.52 USD
Availability: InStock

Short Description

6.25" x 2.15" x 6', White, Lead-Free, PVC, Unique Finger, Slotted, Wiring Duct

Wiring Duct; Type Unique Finger, Slotted; Cover Included Yes; Length 6 Foot; Width 6.25 Inch; Height 2.15 Inch; Material PVC; Finish White; Mounting DIN Rail; Approval UL (Canada and US), CSA, CE; Standard Package 6 per Pack; Lead-Free; RoHS Compliant; Temperature Rating 122 Deg F; Flammability Rating UL 94 V-0

MFG #: DRD22WH6

EECO #: PNDRD22WH6 PNDRD22WH6

Brand: Panduit

UPC #: 074983117079

Attributes

Features

Documents

Product Information

Attributes

Finish

White

UNSPSC

39131712

Approval

UL (Canada and Us), CSA, CE

Material

PVC

Mounting

DIN Rail

Type

Unique Finger, Slotted

Width

6.25 Inch

Height

2.15 Inch

Features

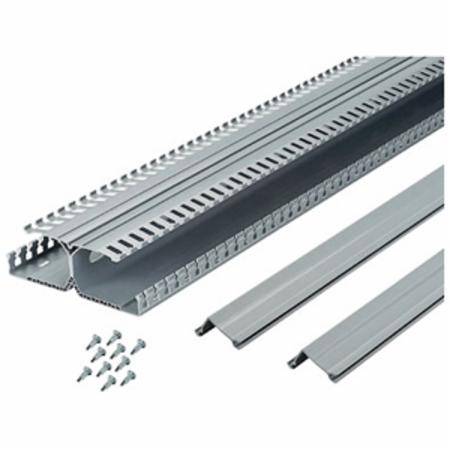

2-Channel Wiring Duct with a Hinged and Flexible Cover that Allows to Mount DIN Rail and Components on Top of the Duct to Maximize Space
DIN Rail and DIN Component Compatible with Standard 35 Millimeter or 15 Millimeter Rails and Many DIN Rail Mount Components for Design Flexibility
Channel Pass through Slots Allows Wires to Transition Internally Between Channels to Ease Wire Connections to Either Side of Components Mounted on the Same Rail Minimizing Wire Length and Reducing Material Cost
Lead-Free
RoHS Compliant

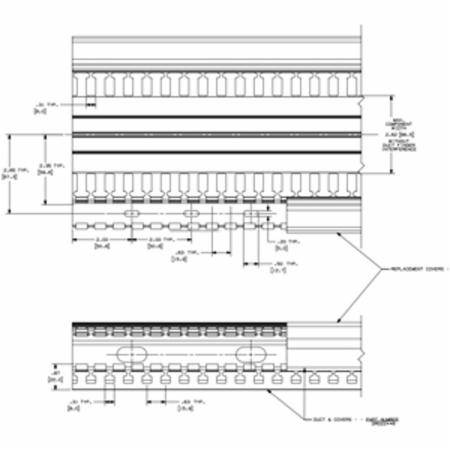

PANDUT_DRD22LG6_CAD

PANDUTE15174_C1_1_C1_5

PANDUTE15645_1_4

PANDUTINST00123

Qty	Unit price
Ea
1	$13.52
Slqt
1	$81.12
Stpk
1	$324.48
Unit
1	$81.12
