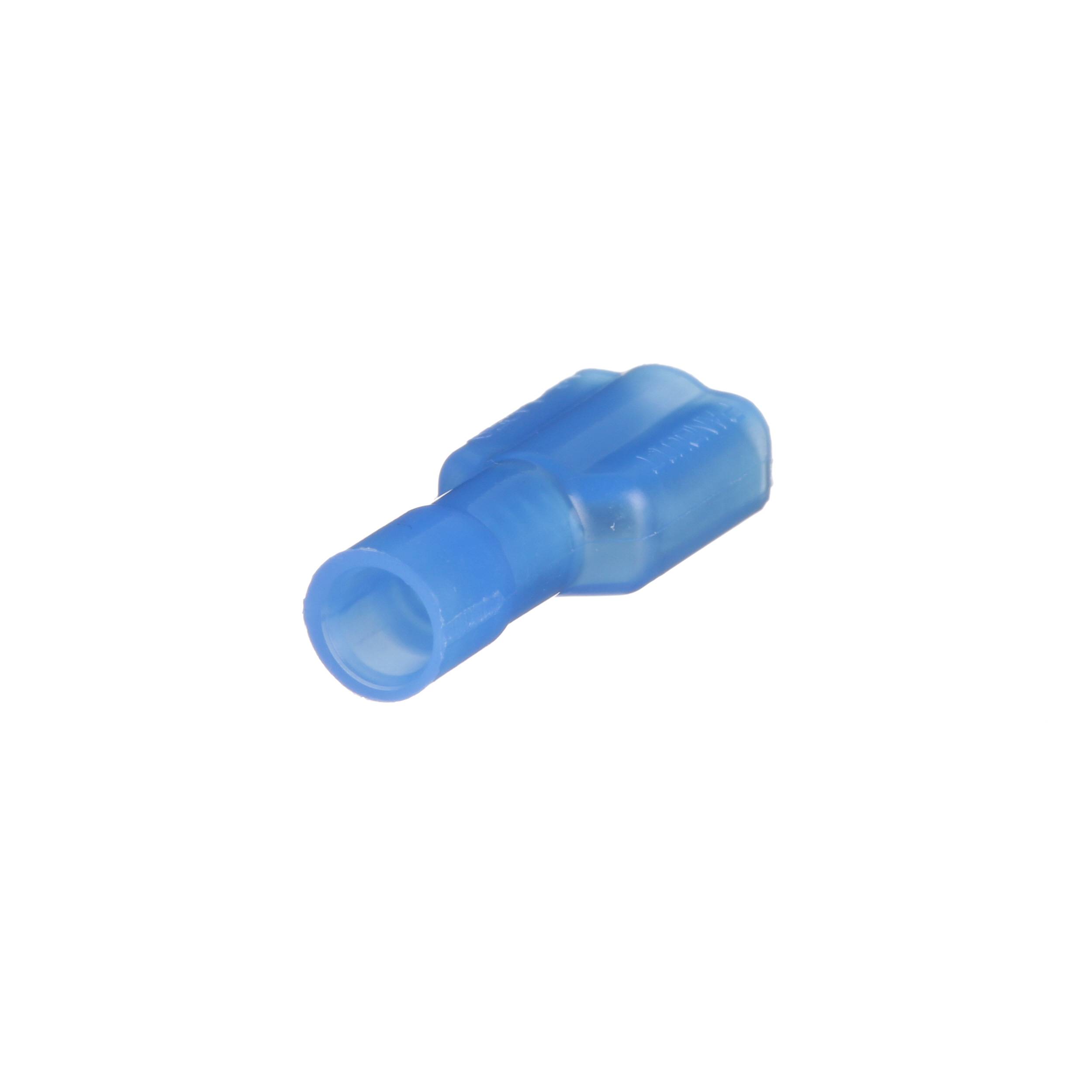

Panduit® Pan-Term™ DNF14-250FIB-M Type DNF-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
Panduit® Pan-Term™ DNF14-250FIB-M Type DNF-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
Panduit® Pan-Term™ DNF14-250FIB-M Type DNF-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
Panduit® Pan-Term™ DNF14-250FIB-M Type DNF-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
Share Share Print Print
Panduit

Panduit® Pan-Term™ DNF14-250FIB-M Type DNF-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated

Short Description

Experience superior connectivity with the Panduit® Pan-Term™ DNF14-250FIB-M Female Disconnect. Designed for reliability and vibration resistance, this fully insulated disconnect ensures secure connections for your 14 AWG applications. Built with high-quality brass and featuring a funnel entry barrel, it’s the perfect choice for demanding environments.Enhanced by AI

Panduit® Pan-Term™ Female Disconnect, Type DNF-FIB Loose Piece Vibration-Resistant, Stranded Conductor, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 V, Specifications: 0.16 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip, 221 deg F, Brass, Blue, Tin Plated, 0.84 in L x 0.35 in W x 0.22 in H Dimensions, Insulated: Fully Insulated

MFG #: DNF14-250FIB-M

EECO #: PNDNF14250FIBM

Brand: Panduit
UPC #: 074983827510
Attributes
Features
Documents
Product Information
Attributes
Color
Blue
Finish
Tin Plated
UNSPSC
39121409
Material
Brass
Tab Size
0.25 in W x 0.032 in THK
Application
For making quick and repeatable interconnections
Barrel Type
Butted Seam/Funnel Entry
Terminal Type
Crimp
Conductor Size
14
Voltage Rating
600
Temperature Rating
221
Type
Type DNF-FIB Loose Piece Vibration-Resistant
Dimensions
0.84 in L x 0.35 in W x 0.22 in H
Conductor Type
Stranded
Specifications
0.16 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip
Features
  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Maximum insulation temperature 221 deg F
