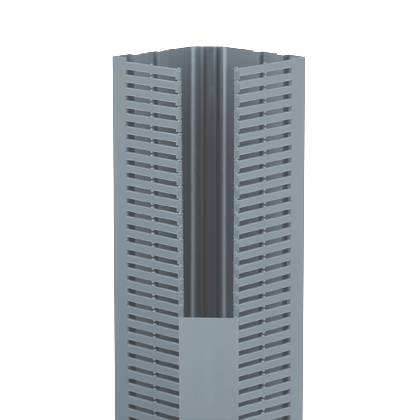

Panduit® PanelMax™ CWD2WH6 1-Piece Type CWD Corner Wiring Duct, 0.2 in Slotted Slot, 3.35 in W x 2.57 in D, PVC
Share Share Print Print
Panduit

Panduit® PanelMax™ CWD2WH6 1-Piece Type CWD Corner Wiring Duct, 0.2 in Slotted Slot, 3.35 in W x 2.57 in D, PVC

Short Description

Panduct® PanelMax™ corner wiring duct is an innovative one-piece wire management product which makes more efficient use of space inside enclosures, speeds installation and reduces control panel assembly costs. PanelMax™ corner wiring duct is part of a complete line of Panduit® wire management solutions for control panels.

Panduit® PanelMax™ Corner Wiring Duct, 1-Piece Type CWD, 3.35 in Width, 2.57 in D, 0.08 in Thickness, Slotted Slot, 0.2 in Slot, Hole Mount, Yes, PVC, White
MFG #: CWD2WH6

EECO #: PNCWD2WH6

Brand: Panduit
UPC #: 074983646234
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39131712
Material
PVC
Application
Used in the vertical corners of compact to large electrical control panels to route, conceal and protect electrical wiring
Mounting Type
Hole
Type
1-Piece Type CWD
Depth
2.57
Width
3.35
Includes
Base and C3BL6 Cover
Slot Size
0.2
Thickness
0.08
Features
  • One-piece wire management product with co-extruded flexible hinges which makes more efficient use of space inside enclosures
  • It speeds installations and reduces costs
  • Has integrated mounting feature for divider wall, double scoreline, extended cover neck, compatible with standard wiring duct and cover
  • Gives up to 20% space savings in enclosure footprint area
IDW_DOCUMENT_84ac2ede871d301c0072e3c67adf6791e8e5a1a9e20efd751c394df1ae02fddf
IDW_DOCUMENT_14df79786e4cfe5bf6e8850036cef328641ff314c92265787da3d6431d53bc74
Panduit_CWD2WH6_Full_Engineering_Drawing
Panduit_C2_5LG6_Installation_Manual
Panduit_CWD3WH6_Technical_Bulletin
